VZ12

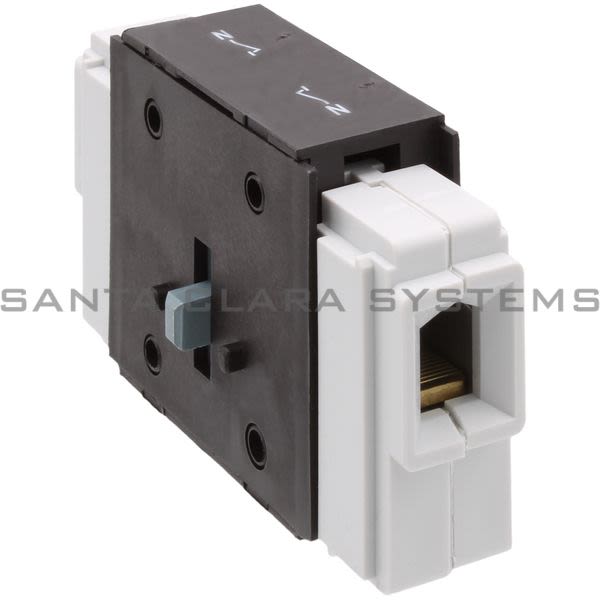

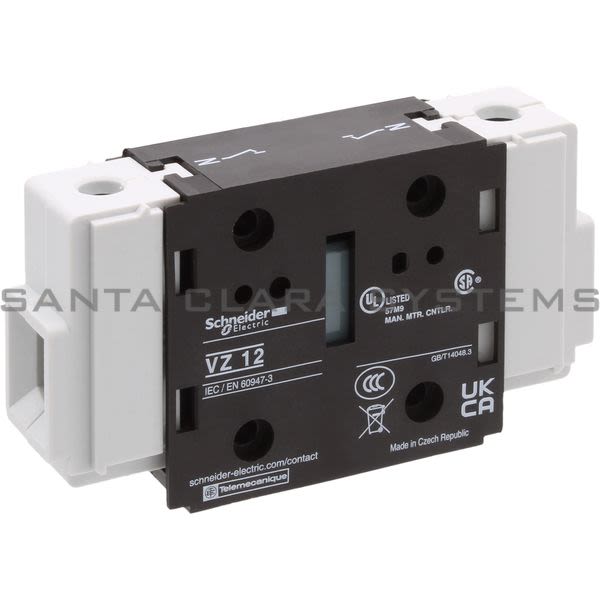

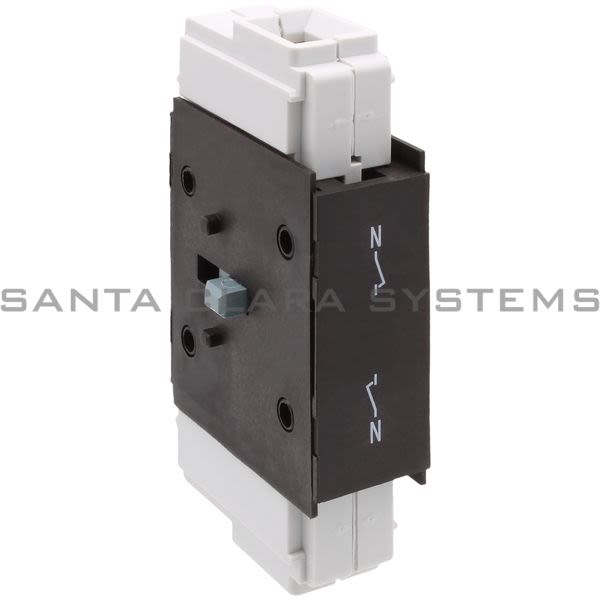

Telemecanique - Neutral Block

Product Summary:

Product weight: 0.22 lb(US) (0.1 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-3
Device short name: VZ
Width: 0.79 in (20 mm)

Current response time:

13 Minutes 22 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Neutral Block
Product weight: 0.22 lb(US) (0.1 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-3
Device short name: VZ
Width: 0.79 in (20 mm)
Height: 3.27 in (83 mm)
Depth: 1.81 in (46 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 6 kV
Mechanical durability: 30000 cycles
Tightening torque: 35.4 lbf.in (4 N.m) - on screw clamp terminals
Connections - terminals: Screw clamp terminals cable 0.02 in² (16 mm²) - cable stiffness: flexible - with cable endScrew clamp terminals cable 0.04 in² (25 mm²) - cable stiffness: solid
Range: TeSys
[Ith] conventional free air thermal current: 80 A
System Voltage: 690 V AC 50/60 Hz

Electrical durability: 30000 cycles DC-1...530000 cycles AC-21
Poles description: 1N
Mounting location: LeftRight
Product certifications: GLCSAUL
Product or component type: Additional neutral block
Performance level: High performance
Mechanical robustness: Shocks 11 ms 15 gn IEC 60068-2-27Vibrations 10...150 Hz 1 gn IEC 60068-2-6
Contacts type and composition: 1 NO
Ambient air temperature for operation: -4...122 °F (-20...50 °C)
Contact operation: Early make, late break
Fire resistance: 1760 °F (960 °C) conforming to IEC 60695-2-1
Product compatibility: V4V3
Range compatibility: TeSys VARIO switch disconnector
Network type: ACDC
Network frequency: 50/60 Hz
