XACA271

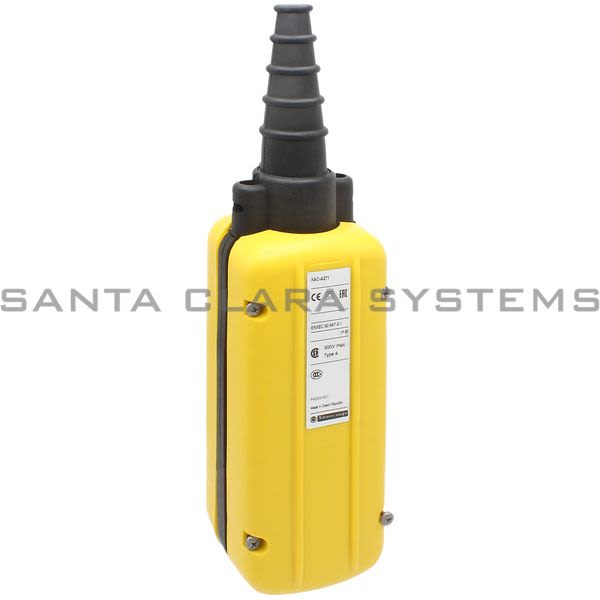

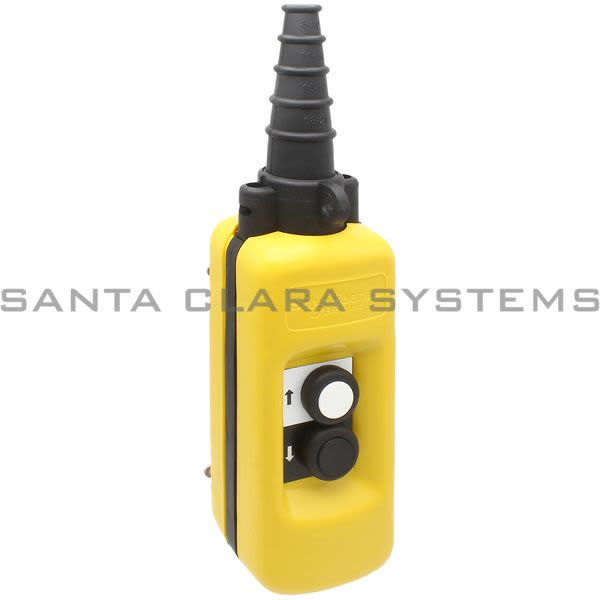

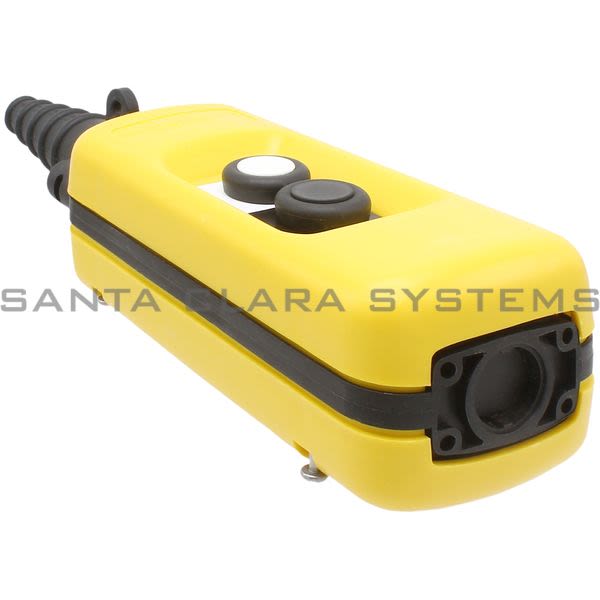

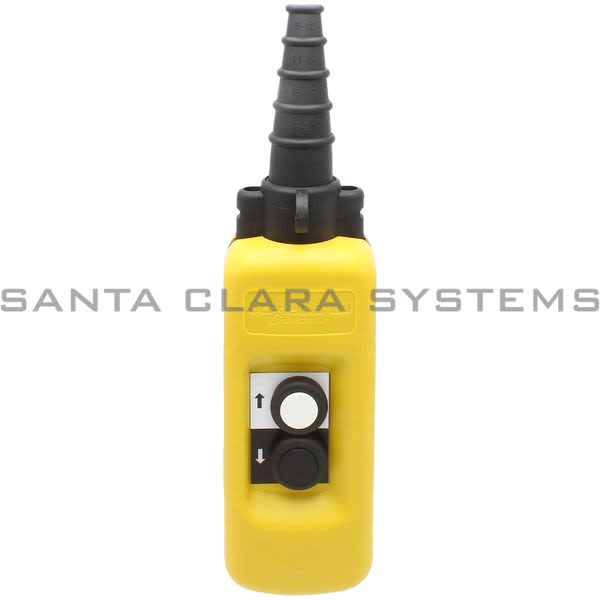

Telemecanique - pendant control station XAC-A - 2 pushbuttons

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: pendant control station XAC-A - 2 pushbuttons
Product weight: 1.05 lb(US) (0.475 kg)
Range of product: Harmony XAC
IP degree of protection: IP65 IEC 60529
Standards: CSA C22.2 No 14EN/IEC 60204-32UL 508EN/IEC 60947-5-1
Device short name: XACA
Protective treatment: TH
[Ui] rated insulation voltage: 600 V 3
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
Mechanical durability: 1000000 cycles
Connections - terminals: Screw clamp terminals 1 x 0.5...2 x 1.5 mm² with cable endScrew clamp terminals 1 x 0.5...1 x 2.5 mm² without cable end
Vibration resistance: 15 gn 10...500 Hz IEC 60068-2-6
Shock resistance: 100 gn IEC 60068-2-27
Overvoltage category: Class II IEC 61140
Category: 22473 - PUSHBUTTON, PENDANTS
Returnability: N
Country of origin: MX
Enclosure material: Polypropylene
Enclosure type: Complete ready for use
Control station type: Double insulated
Product or component type: Pendant control station
Discount Schedule: CS2
Electrical circuit type: Control circuit

Nbr. of units in pkg.: 1
Package weight(Lbs): 2
Control station application: Control of single speed hoist motor
Control station composition: 2 push-buttons
Control button type: First pushbutton 1 NO raise, slowSecond pushbutton 1 NO lower, slow
Product compatibility: ZB2BE101 for each direction
Mechanical interlocking: With mechanical interlocking
Control station color: Yellow
Product certifications: GOSTCCC
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
IK degree of protection: IK08 EN 50102
Cable entry: Rubber sleeve with stepped entry 8...26 mm
Contact code designation: A600 AC-15 240 V 3 A IEC 60947-5-1 appendix AA600 AC-15 600 V 1.2 A IEC 60947-5-1 appendix AQ600 DC-13 250 V 0.27 A IEC 60947-5-1 appendix AQ600 DC-13 600 V 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10:00 AM
Contact operation: Slow-break
Resistance across terminals: <= 25 MOhm
Operating force: 10 N push-button
Short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
terminals description ISO n°1: (13-14)NO
Terminal identifier: (11-12)NC(13-14)NO
