- Description: Pilot Light
- Product weight: 0.17 lb(US) (0.075 kg)
- Range of product: Harmony XB4
- IP degree of protection: IP69IP67IP66 conforming to IEC 60529IP69K
- Standards: UL 508EN/IEC 60947-5-5CSA C22.2 No 14EN/IEC 60947-5-4EN/IEC 60947-1JIS C 4520EN/IEC 60947-5-1
- Device short name: XB4
- Width: 1.18 in (30 mm)
- Height: 1.85 in (47 mm)
- Depth: 2.17 in (55 mm)
- Protective treatment: TH
- [Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to EN 60947-1
- [Uimp] rated impulse withstand voltage: 4 kV conforming to EN 60947-1
- Connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1Screw clamp terminals: 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
- Vibration resistance: 5 gn (f = 12...500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
- [Us] rated supply voltage: <= 250 V
- Bezel material: Chromium plated metal
- Light source: Bulb not included
- Product or component type: Complete pilot light
- Ambient air temperature for storage: -40...158 °F (-40...70 °C)
- Ambient air temperature for operation: -40...131 °F (-40...55 °C)

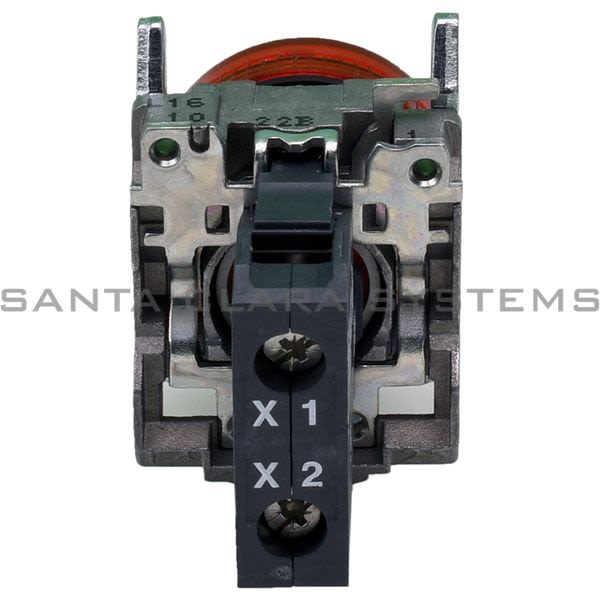

- terminals description ISO n°1: (X1-X2)PL
- Electrical shock protection class: Class I conforming to IEC 60536
- Fixing collar material: Zamak
- Mounting diameter: 0.87 in (22 mm)
- Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
- NEMA degree of protection: NEMA 13NEMA 4X
- Sale per indivisible quantity: 1
- IK degree of protection: IK06 conforming to IEC 50102
- Shape of signaling unit head: Round
- Cap/operator or lens color: Red
- Product certifications: UL listedCSA
- Operator additional information: With plain lens
- Signaling type: Steady
- Bulb base: BA 9s
- Light block supply: Direct / <= 2.4 W
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XB4BV64 . Santa Clara Systems carries 10,632 items from Telemecanique.

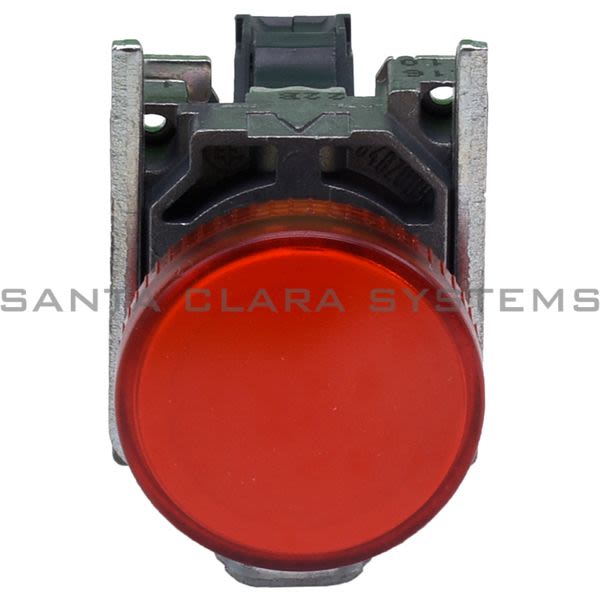

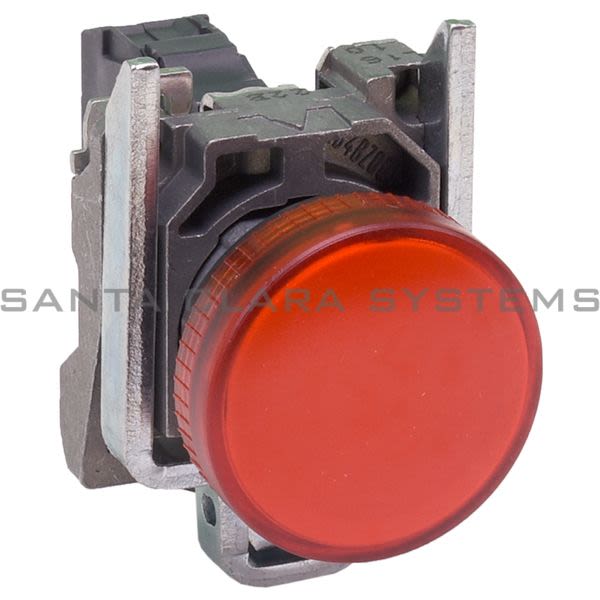

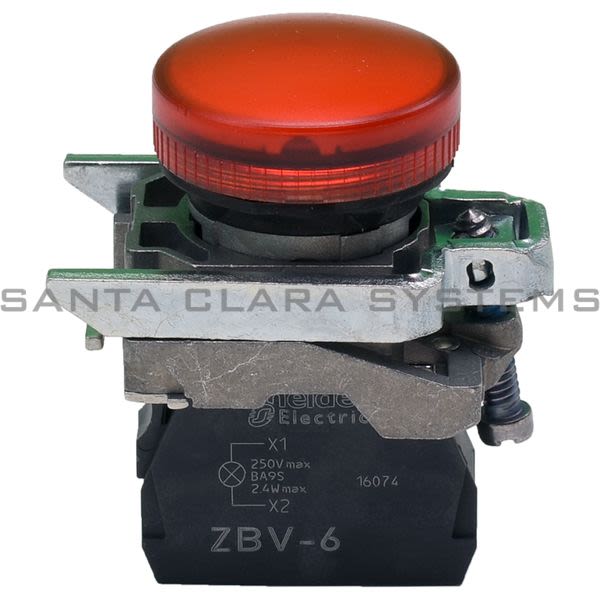

- Red Complete Pilot Light Ø22 Plain Lens With Ba9s Bulb 250v
