XCMD2116L3S30

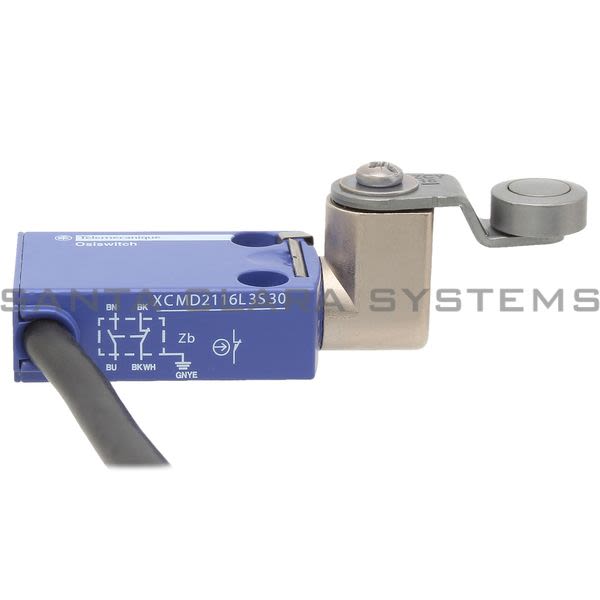

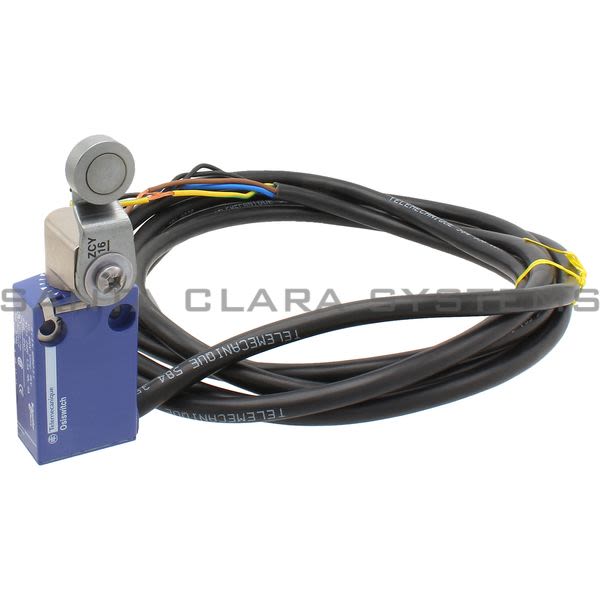

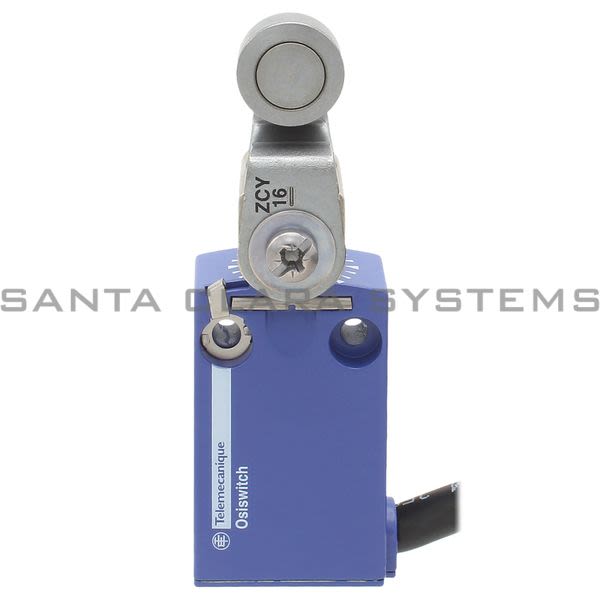

Telemecanique - limit switch XCMD - steel roller lever - 1NC+1NO - snap - 3 m

Product Summary:

Range of product: OsiSense XC
Standards: EN 60947-5-1CSA C22.2 No 14UL 508IEC 60947-5-1
Device short name: XCMD
Width: 1.18 in (30 mm)
Height: 1.97 in (50 mm)

Current response time:

17 Minutes 54 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: limit switch XCMD - steel roller lever - 1NC+1NO - snap - 3 m
Range of product: OsiSense XC
IP degree of protection: IP68 conforming to IEC 60529IP66 conforming to IEC 60529IP67 conforming to IEC 60529
Standards: EN 60947-5-1CSA C22.2 No 14UL 508IEC 60947-5-1
Device short name: XCMD
Width: 1.18 in (30 mm)
Height: 1.97 in (50 mm)
Depth: 0.63 in (16 mm)
[Ui] rated insulation voltage: 300 V degree of pollution 3 conforming to CSA C22.2 No 14300 V degree of pollution 3 conforming to UL 508400 V degree of pollution 3 conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1
Mechanical durability: 10000000 cycles
Shock resistance: 25 gn (duration = 18 ms) conforming to IEC 60068-2-27
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Electrical durability: 5000000 cycles, DC-13, 120 V, 1 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, 24 V, 3 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, 48 V, 2 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection: Removable cable connector
Overvoltage category: Class I
Material: Metal
Number of poles: 2
Head type: Rotary head
Cable length: 9.84 ft (3 m)
Switch actuation: By 30° cam
Series name: Standard format
Product or component type: Limit switch

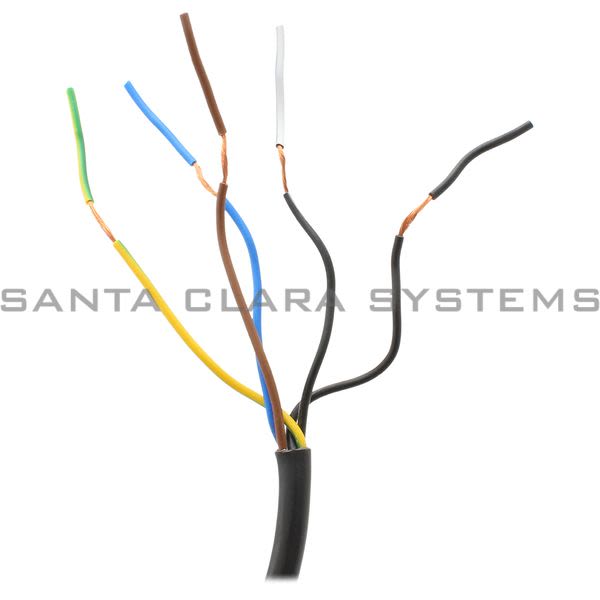

Cable composition: 5 x 0.75 mm²
IK degree of protection: IK06 conforming to EN 50102
Sensor design: Miniature
Wire insulation material: PvR
Body type: Fixed
Contacts insulation form: Zb
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Positive opening: With
Product certifications: ULCSA
Positive opening minimum force: 0.5 N
Body material: Zamak
Minimum force for tripping: 0.1 N
Head material: Zamak
Maximum actuation speed: 4.92 ft/s (1.5 m/s)
Fixing mode: By the body
Contact code designation: B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
Movement of operating head: Rotary
Type of operator: Spring return roller lever metal
Type of approach: Lateral approach 2 directions
Short-circuit protection: 6 A by gG cartridge fuse
Contacts type and composition: 1 NC + 1 NO
Contact operation: Snap action
