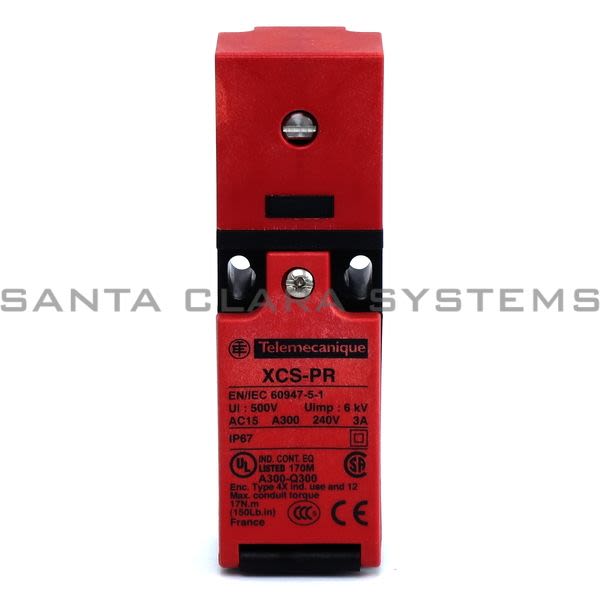

• Telemecanique XCSPR751 safety switch XCSPR - spindle 30 mm - 2NC -Pg11 Product Image

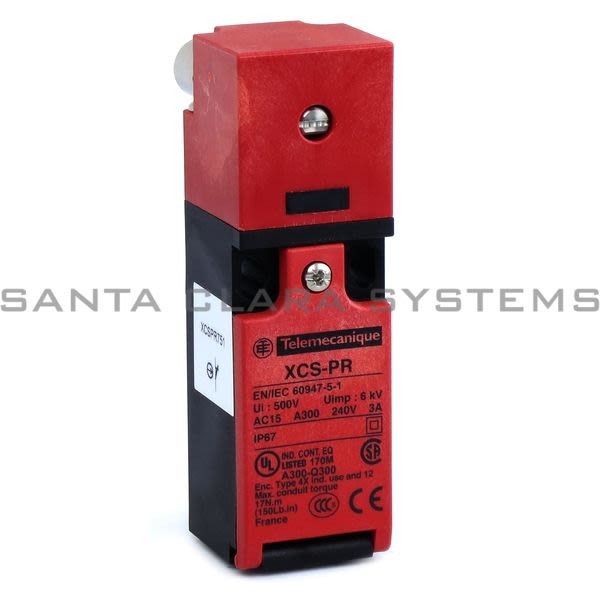

  • Telemecanique XCSPR751 safety switch XCSPR - spindle 30 mm - 2NC -Pg11 Product Image

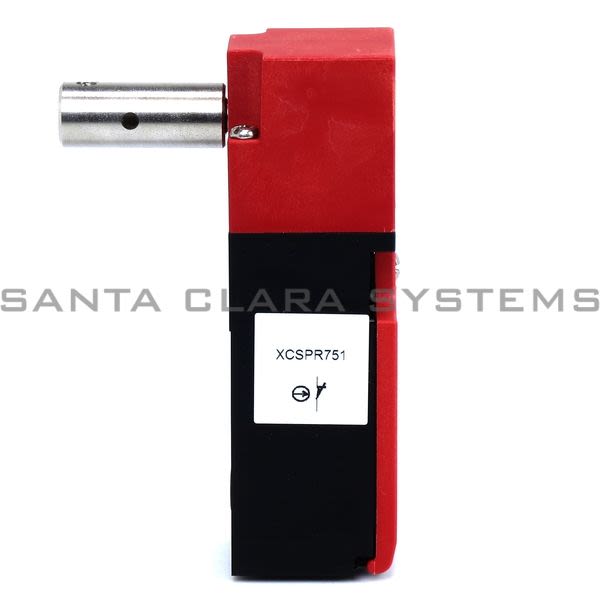

  • Telemecanique XCSPR751 safety switch XCSPR - spindle 30 mm - 2NC -Pg11 Product Image
  • Telemecanique XCSPR751 Barcode

XCSPR751

Get a Quote

Current response time:

7 Minutes 9 Seconds
  • Description: safety switch XCSPR - spindle 30 mm - 2NC -Pg11
  • Product weight: 0.23 lb(US) (0.105 kg)
  • Range of product: Preventa Safety detection
  • IP degree of protection: IP67 conforming to IEC 60529
  • Standards: CSA C22.2 No 14, UL 508, EN 1088/ISO 14119, EN/ISO 12100, EN/IEC 60947-5-4, EN/IEC 60204-1, EN/IEC 60947-5-1
  • Width: 1.18 in (30 mm)
  • Height: 3.78 in (96 mm)
  • Depth: 2.36 in (60 mm)
  • Protective treatment: TH, TC
  • [Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V (degree of pollution: 3) conforming to EN/IEC 60947-1, 300 V conforming to UL 508
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
  • Mechanical durability: 1000000 cycles
  • Vibration resistance: 50 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
  • Shock resistance: 50 gn 11 ms conforming to IEC 60068-2-27
  • Electrical connection: Terminal
  • Material: Plastic
  • Number of poles: 2
  • Head type: Turret head rotary axis
  • Enclosure material: Polyamide PA66 fibre glass impregnated
  • Cable outer diameter: 0.28...0.39 in (7...10 mm)
  • Product or component type: Guard switch
  • Positive opening: With NC contact
  • Product certifications: UL, CSA, BG
  • Component name: XCSPR
  • Tripping angle: 5
  • Ambient air temperature for operation: -13...158 F (-25...70 C)
  • Minimum torque for tripping: 0.88 lbf.in (0.1 N.m)
  • Ambient air temperature for storage: -40...158 F (-40...70 C)
  • Insulation: Double insulated
  • Positive opening minimum torque: 2.21 lbf.in (0.25 N.m)
  • Type of operator: Spindle 30 mm
  • Contact code designation: A300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to EN/IEC 60947-5-1, A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1
  • [Ithe] conventional enclosed thermal current: 10:00 AM
  • Electrical shock protection class: Class II conforming to EN/IEC 61140
  • Contacts type and composition: 1 NC + 1 NC
  • Contact operation: Slow-break
  • Clamping connection capacity: 1 x 0.5...2 x 1.5 mm with or without cable end
  • Resistance across terminals: <= 30 mOhm conforming to EN/IEC 60947-5-4
  • Cable entry: 1 entry tapped Pg 11
  • Short-circuit protection: 10 A cartridge fuse type gG (gl)
  • Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
  • Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
  • Lever material: Stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCSPR751 . Santa Clara Systems carries 10,295 items from Telemecanique.
