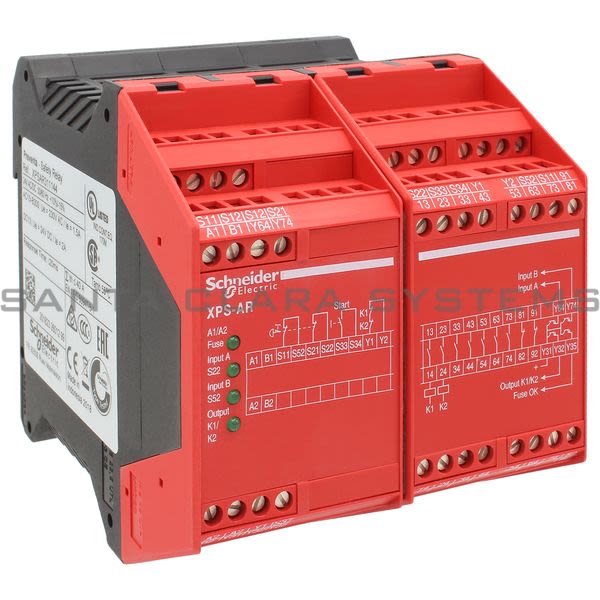

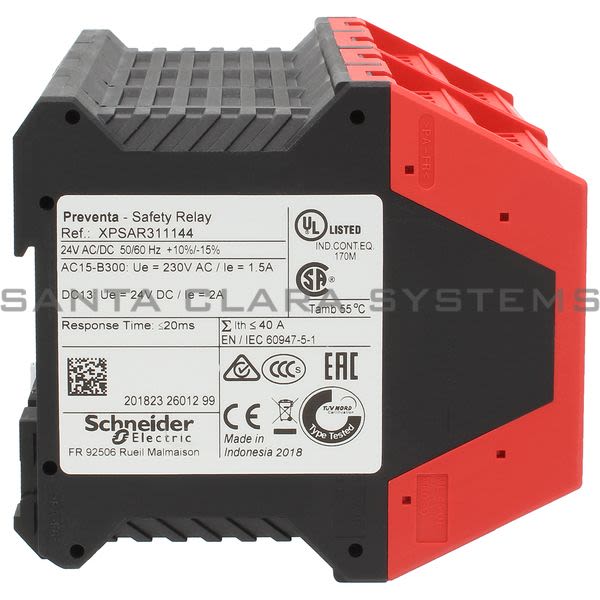

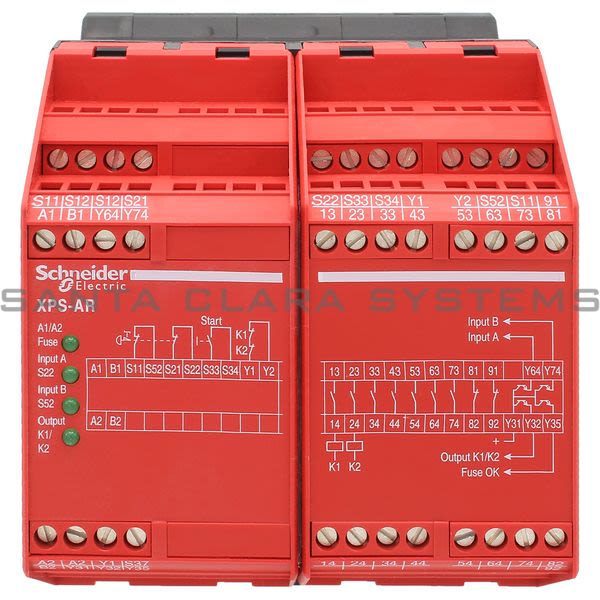

Telemecanique XPSAR311144 module XPSAR - Emergency stop - 24 V AC DC Product Image

XPSAR311144

Telemecanique - module XPSAR - Emergency stop - 24 V AC DC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: module XPSAR - Emergency stop - 24 V AC DC
Product weight: 0.66 lb(US) (0.3 kg)
Range of product: Preventa Safety automation
IP degree of protection: IP20 (terminals) conforming to EN/IEC 60529IP40 (enclosure) conforming to EN/IEC 60529
Standards: EN 1088/ISO 14119EN/IEC 60204-1EN/IEC 60947-5-1EN/ISO 13850
[Ui] rated insulation voltage: 300 V (degree of pollution: 2) conforming to DIN VDE 0110 part 1300 V (degree of pollution: 2) conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to IEC 60947-5-14 kV overvoltage category III conforming to DIN VDE 0110 part 1
Connections - terminals: Captive screw clamp terminals, clamping capacity: 2 x 0.5...2 x 1.5 mm² flexible cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² flexible cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² solid cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 1.5 mm² flexible cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm² flexible cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm² flexible cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm² solid cable with cable end, with double bezelCaptive screw clamp terminals, clamping capacity: 2 x 0.25...2 x 1 mm² flexible cable with cable end, with double bezel
Mounting support: 35 mm symmetrical DIN rail
[Ith] conventional free air thermal current: 40 A
[Uc] control circuit voltage: 24 V DC
[Us] rated supply voltage: 24 V AC (- 15...10 %)24 V DC (- 15...10 %)
Associated fuse rating: 10 A fuse type fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 2006 A fuse type gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Breaking capacity: 20 mA at 24 V2 A at 24 V (DC-13) time constant: 50 ms for relay output
Output type: Relay instantaneous opening 7 NO, volt-free
Synchronisation time between inputs: 100 ms
Product or component type: Preventa safety module
Supply frequency: 50/60 Hz
Product certifications: CSATÜVUL

Safety module name: XPSAR
power consumption in W: <= 4 W DC
Safety module application: For emergency stop, switch and safety light curtain monitoring
power consumption in VA: <= 7 VA AC
Ambient air temperature for operation: 14...131 °F (-10...55 °C)
Function of module: Monitoring of electro-sensitive protection equipment (ESPE)Monitoring of a movable guard associated with 2 switches and automatic startMonitoring of a movable guardEmergency stop monitoring 1-channel wiringEmergency stop with 2 NC contacts monitoring 2-channel wiringMultiple emergency stop monitoring 2-channel wiring
Input protection type: Internal, electronic
Ambient air temperature for storage: -13...185 °F (-25...85 °C)
Safety level: Can reach PL e/category 4 conforming to EN/ISO 13849-1Can reach SILCL 3 conforming to EN/IEC 62061
Safety reliability data: DC > 99 % conforming to EN/ISO 13849-1MTTFd = 277.8 years conforming to EN/ISO 13849-1PFHd = 2.22E-9 1/h conforming to EN/IEC 62061
Line resistance: 50 Ohm
Type of start: Configurable
Output thermal current: 10 A per relay relay output
Number of additional circuits: 2 NC + 4 solid state outputs
Minimum output current: 170 mA for relay output
Minimum output voltage: 17 V relay output
Response time on input open: <= 20 ms
Local signalling: 4 LEDs
Current consumption: 20 mA at 24 V DC (on power supply)
