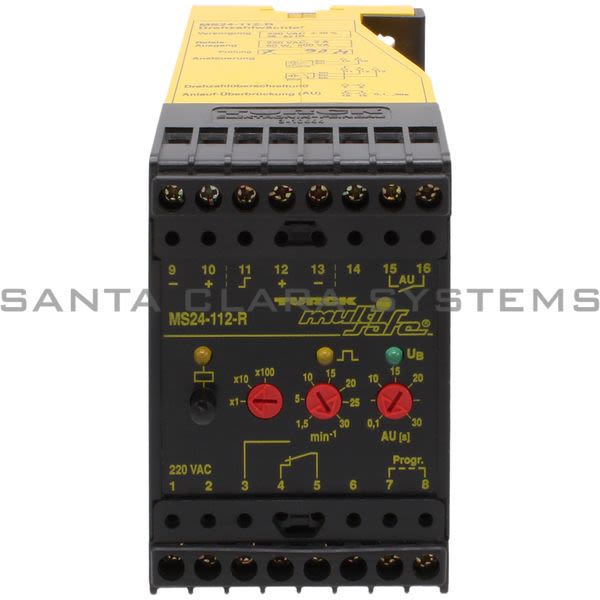

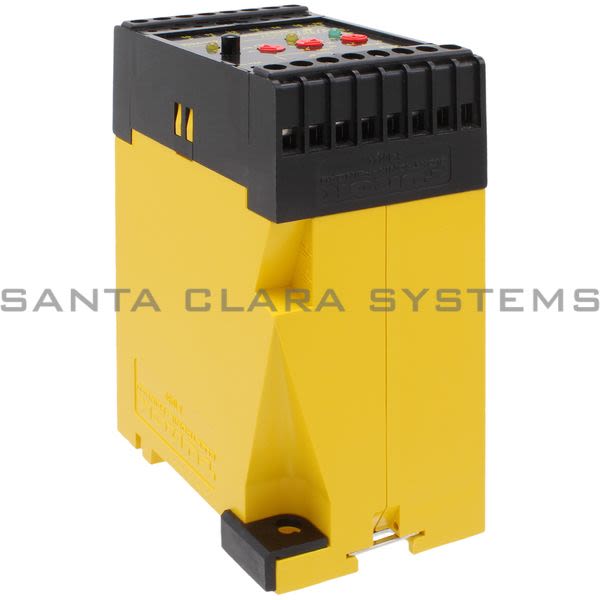

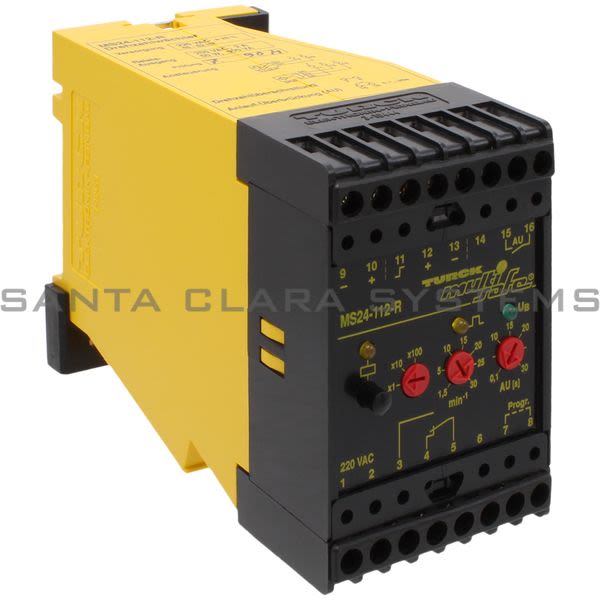

MS24-112-R
Product Summary:
- Operating Voltage: 20 ? 250 VAC
- Housing Material: Polycarbonate/ABS
- Current: 30 mA
- Weight: 236 g
- Frequency: 40 ? 70 Hz
- Description: Rotational Speed Monitor | Multi-Safe
- Operating Voltage: 20 ? 250 VAC
- Housing Material: Polycarbonate/ABS
- Current: 30 mA
- Weight: 236 g
- Frequency: 40 ? 70 Hz
- Operating Voltage Range: 20 ? 250 VDC
- Monitoring Range/Setting Range: 1,5?30 min / 15?300 min / 150?3000 min
- Max. Input Frequency: 60000 min
- Pulse / Pause Time: 0 ... 0.02 ms
- NAMUR: EN-60947-5-6
- No-Load Voltage: 15 VDC
- Short-Circuit Current: 8.2 mA
- Switch-On Threshold: 1.55 mA
- Switch-Off Threshold: 1.75 mA
- 0-signal: 0 ... 3VDC
- 1-signal: 5 ... 30 VDC
- Output Circuits (Digital): 1 x relay (change-over)
- Protection Class: IP20
- Dimensions: 75 x 50 x 110 mm
- Mounting Instructions: DIN rail (NS35) or panel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS24-112-R . Santa Clara Systems carries 1,814 items from Turck.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
