I12H048

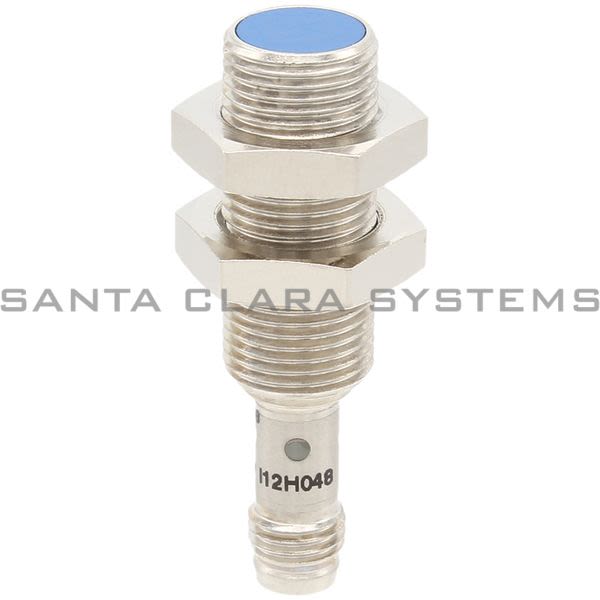

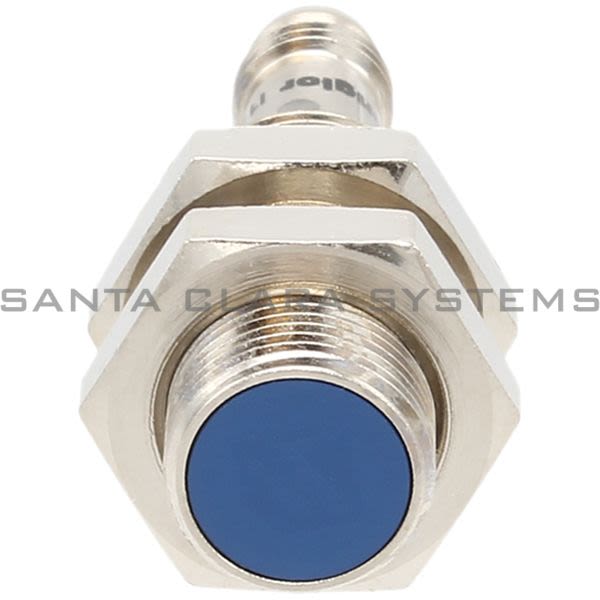

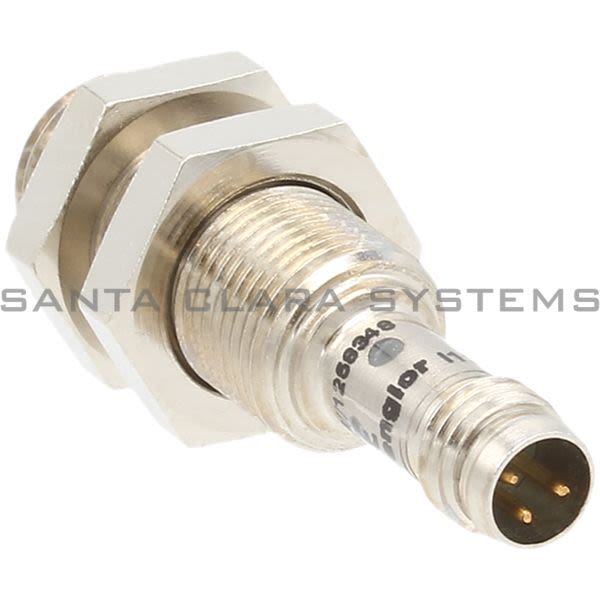

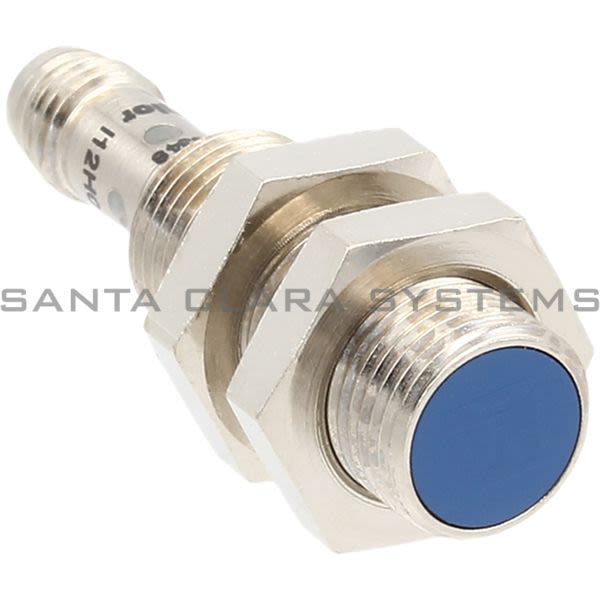

Wenglor - Inductive Sensor with Increased Switching Distance

Product Summary:

Switching Distance: 4 mm
Mounting: flush
Supply Voltage: 10 ... 30 V DC
Current Consumption (Ub = 24 V): < 7 mA
Switching Frequency: 1,060 Hz

Current response time:

14 Minutes 36 Seconds

Description: Inductive Sensor with Increased Switching Distance
Switching Distance: 4 mm
Mounting: flush
Supply Voltage: 10 ... 30 V DC
Current Consumption (Ub = 24 V): < 7 mA
Switching Frequency: 1,060 Hz
Temperature Drift: < 10 %

Temperature Range: -40 ... 80 °C
Switching Output Voltage Drop: < 1 V
Switching Output/Switching Current: 150 mA
Residual Current Switching Output: < 100 µA
Short Circuit Protection: Yes
Protection Class: III
