P1KY001

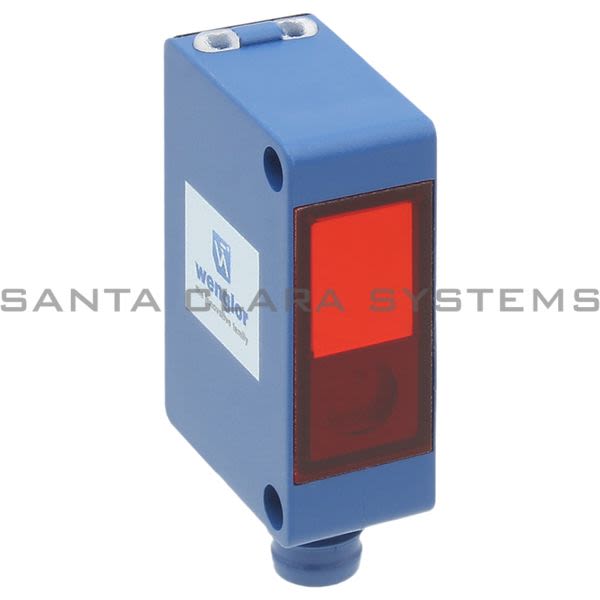

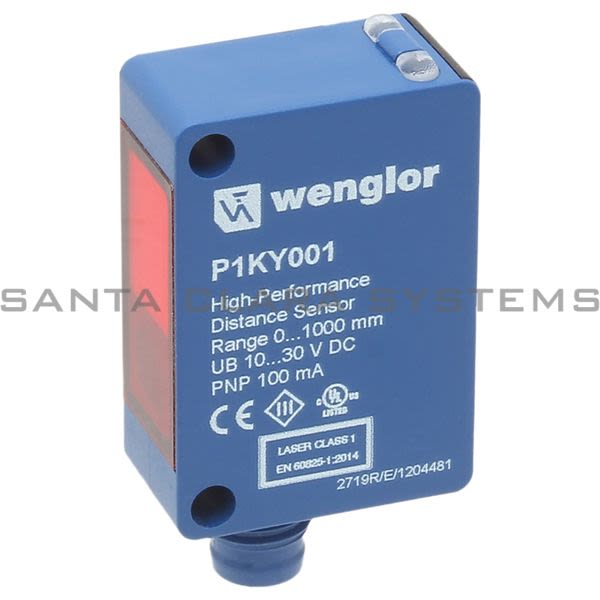

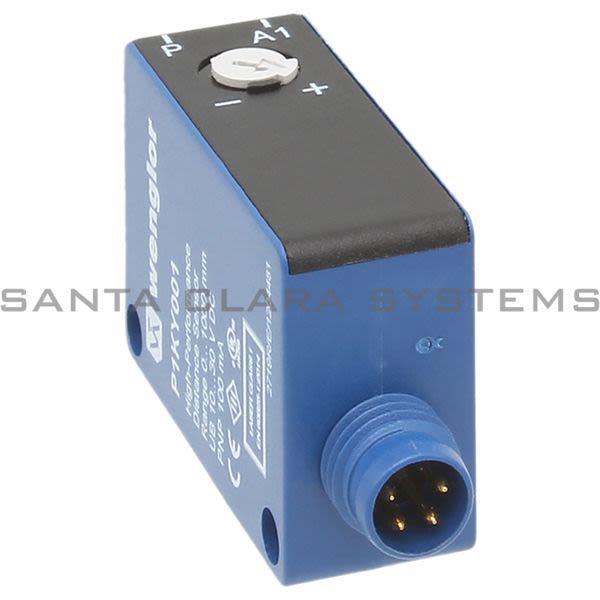

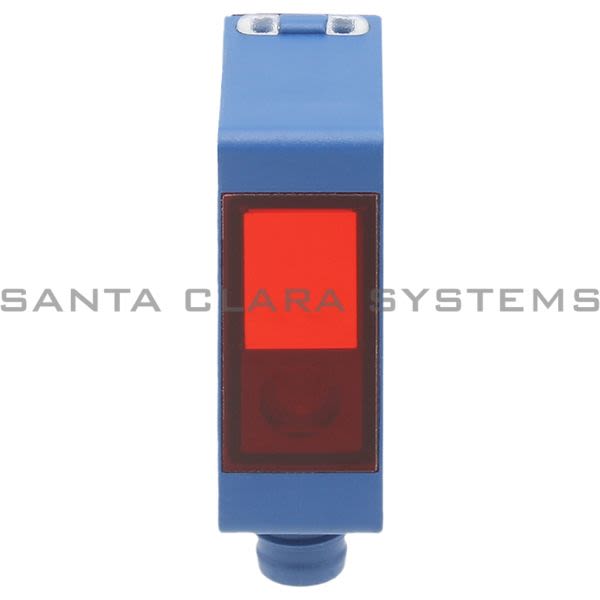

Wenglor - Laser Distance Sensor Time of Flight

Product Summary:

Working Range: 0...1000 mm
Adjustable Range: 100...1000 mm
Switching Hysteresis: < 20 mm
Light Source: Laser (red)
Wavelength: 680 nm

Current response time:

4 Minutes 40 Seconds

Description: Laser Distance Sensor Time of Flight
Working Range: 0...1000 mm
Adjustable Range: 100...1000 mm
Switching Hysteresis: < 20 mm
Light Source: Laser (red)
Wavelength: 680 nm
Service Life (T = +25 C): 100000 h
Laser Class (EN 60825-1): 1
Beam Divergence: < 16 mrad
Max. Ambient Light: 10000 Lux
Supply Voltage: 10...30 V DC
Current Consumption (Ub = 24 V): < 30 mA

Switching Frequency: 1000 Hz
Response Time: 0,5 ms
Temperature Drift: < 2,5 %
Temperature Range: -40...50 C
Number of Switching Outputs: 2
Switching Output Voltage Drop: < 2,5 V
PNP Switching Output/Switching Current: 100 mA
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Protection Class: III
FDA Accession Number: 1620293-001
