P1NH701
Product Summary:
- Range: 300 mm
- Setting Range: 65 ... 300 mm
- Switching Hysteresis: < 1 %
- Light Source: Laser (red)
- Wavelength: 655 nm
Get a Quote
Current response time:
9 Minutes 19 Seconds

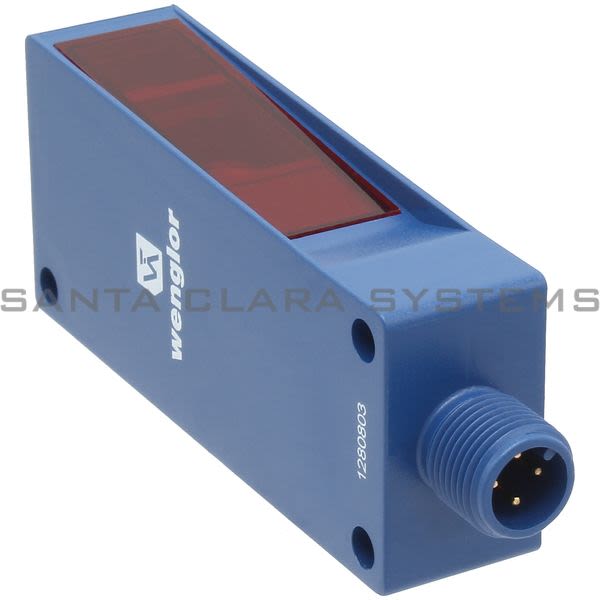

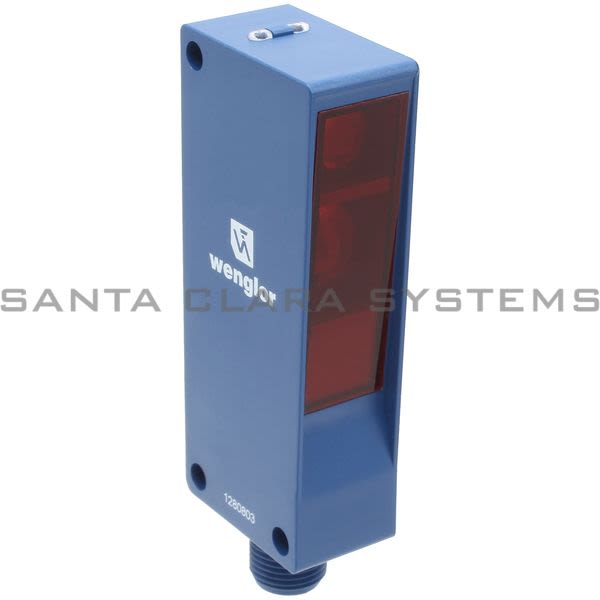

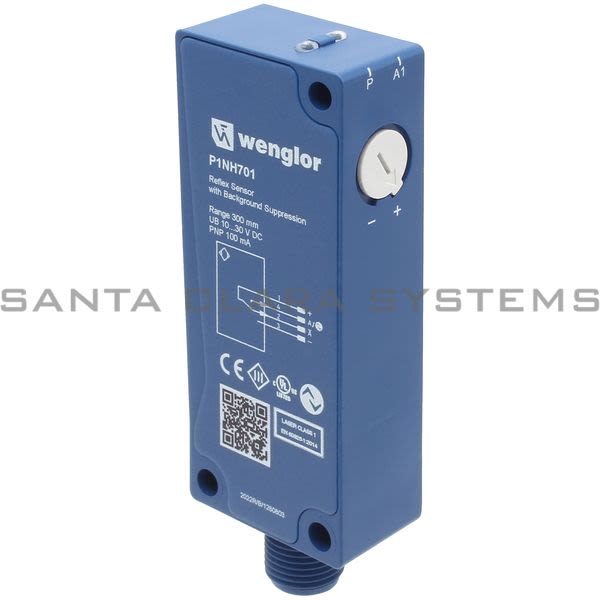

- Description: Reflex Sensor with Background Suppression
- Range: 300 mm
- Setting Range: 65 ... 300 mm
- Switching Hysteresis: < 1 %
- Light Source: Laser (red)
- Wavelength: 655 nm
- Service Life (T = +25 C): 100,000 h
- Laser Class (EN 60825-1): 1
- Max. Ambient Light: 10,000 Lux
- Light Spot Diameter: See Table 1
- Supply Voltage: 10 ... 30 V DC
- Supply Voltage with IO-Link: 18 ... 30 V DC
- Current Consumption (Ub = 24 V): < 15 mA
- Switching Frequency: 1,000 Hz
- Switching Frequency (interference-free mode): 500 Hz
- Response Time: 0.5 ms
- Response time (interference-free mode): 1 ms
- Temperature Drift: < 2 %
- Temperature Range: -25 ... 60 C
- Switching Output Voltage Drop: < 2 V
- Switching Output/Switching Current: 100 mA
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
- Overload Protection: Yes
- Interface: IO-Link V1.1
- Protection Class: III
- Setting Method: Single-turn
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1NH701 . Santa Clara Systems carries 3,326 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
