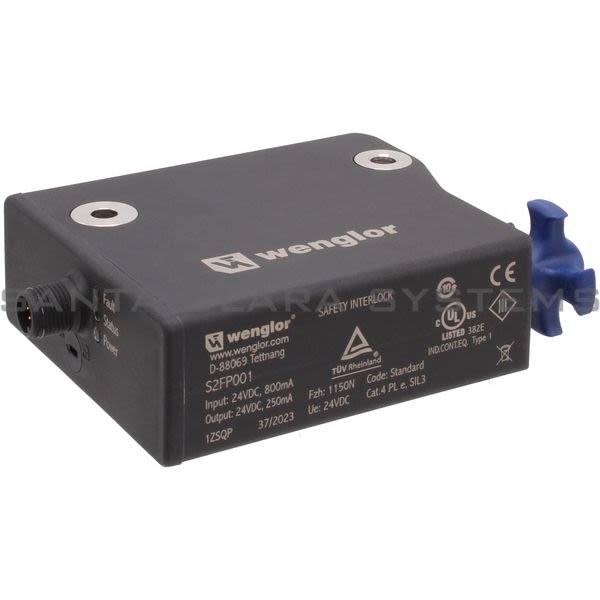

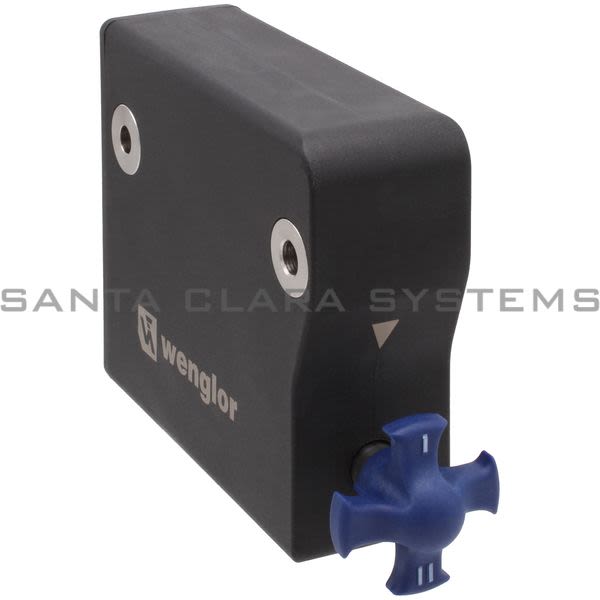

S2FP001

Wenglor - Guard Locking Device Electromechanic, closed-circuit current principle

Product Summary:

Sensor Type: Locking unit
Supply Voltage: 20,4...26,4 V DC
Response Time: ≤ 100 ms
Risk time: ≤ 200 ms
Temperature Range: 0...60 °C

Current response time:

8 Minutes 22 Seconds

Description: Guard Locking Device Electromechanic, closed-circuit current principle
Sensor Type: Locking unit
Supply Voltage: 20,4...26,4 V DC
Response Time: ≤ 100 ms
Risk time: ≤ 200 ms
Temperature Range: 0...60 °C
Storage temperature: -10...90 °C
Safety Output: OSSD
No. Safety Outputs (OSSDs): 2
PNP Safety Output/Switching Current: 250 mA
Number of Signal Outputs: 1

PNP signal output switching current: 50 mA
Short Circuit Protection: yes
Operating principle: RFID
Coding: Standard
Performance Level (EN ISO 13849-1): Cat. 4 PL e *
PFHD: 5,20 × E-10 1/h *
Safety Integrity Level (EN 61508): SIL3*
Safety Integrity Level (EN 62061): SILCL3*
PDDB (EN 60947-5-3): yes
Locking Device: Power to unlock principle
Locking Force F (Zh): 1150 N
