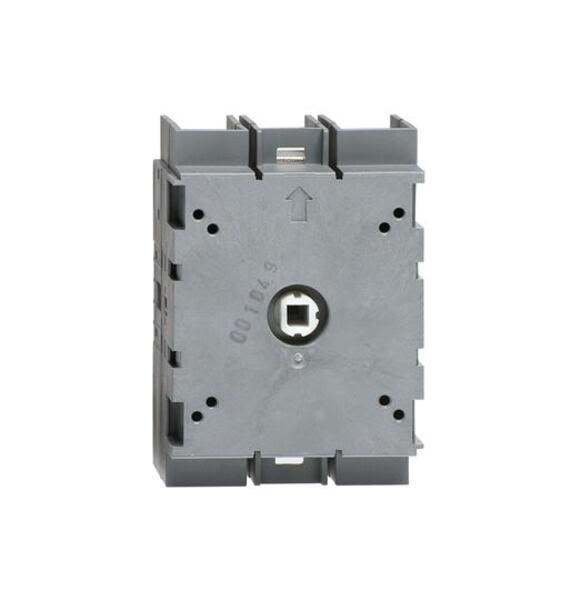

  • ABB OT30F3 Switch-Disconnector | 1SCA105068R1001 Product Image

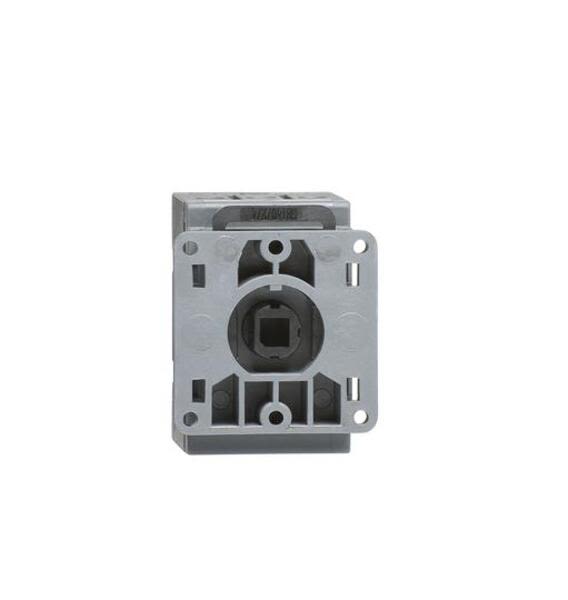

  • ABB OT30F3 Switch-Disconnector | 1SCA105068R1001 Product Image
  • ABB OT30F3 Switch-Disconnector | 1SCA105068R1001 Product Image

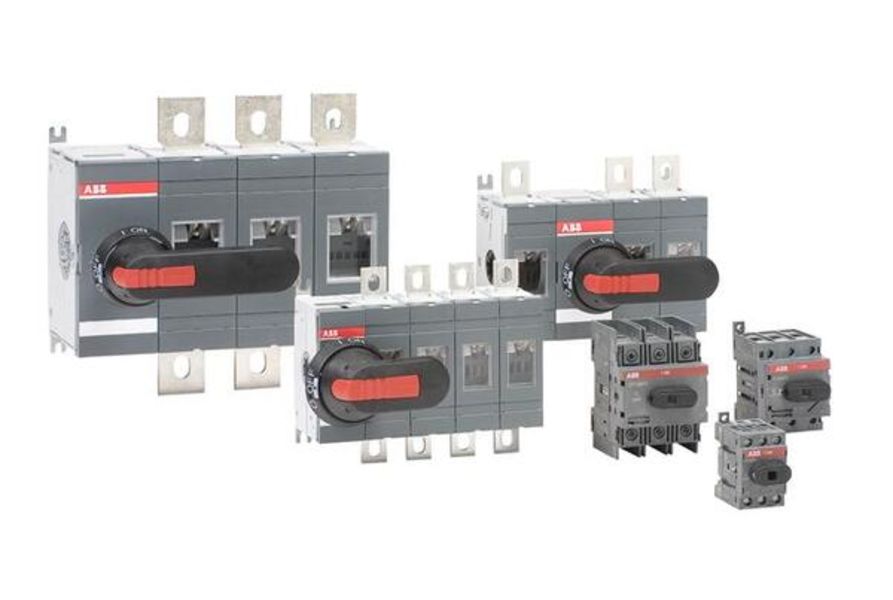

  • ABB OT30F3 Switch-Disconnector | 1SCA105068R1001 Product Image
  • ABB OT30F3 Switch-Disconnector | 1SCA105068R1001 Product Image
  • Abb OT30F3 Barcode

OT30F3

Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Switch-Disconnector | 1SCA105068R1001
  • Product ID: 1SCA105068R1001
  • Extended Product Type: 1SCA105068R1001
  • Product Net Weight: 0.4 kg
  • Product Net Width: 70 mm
  • Product Net Height: 100 mm
  • Product Net Depth: 63 mm
  • Product Main Type: OT30
  • Product Name: Switch-disconnector
  • Standards: IEC
  • Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
  • Rated Insulation Voltage (U<sub>i</sub>): 750 V
  • Number of Poles: 3
  • Terminal Type: Screw Terminals
  • Power Loss: 0.6 W
  • Mounting Type: Modular
  • Handle Type: None
  • Order Multiple: 10 piece
  • Cable Cross-Section: 2.525 mm
  • Ampere Rating UL/CSA: 30 A
  • Horsepower Rating UL/CSA: (acc. to UL 240 V) 7.5 Hp (acc. to UL 480 V) 15 Hp (acc. to UL 600 V) 20 Hp
  • Switches Operating Mechanism: Mechanism Between the Poles
  • Position of Line Terminals: Top In - Bottom Out
  • Special Functions: No
  • Operating Mode: Front Operated
  • EAN: 6417019391984
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85365080
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 81 mm
  • Package Level 1 Height: 86 mm
  • Package Level 1 Length: 112 mm
  • Package Level 1 Gross Weight: 0.4 kg
  • Package Level 1 EAN: 6417019391984
  • Package Level 2 Units: 1 piece
  • Package Level 2 Width: 70 mm
  • Package Level 2 Height: 74 mm
  • Package Level 2 Length: 100 mm
  • Package Level 2 Gross Weight: 0.36 kg
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
  • Earthing Switch Type: No Additional Type
  • IIT Publishing Status: Level 0 - Information enabled
  • Includes: None
  • Pollution Degree: 3
  • Rated Operational Current AC-21A (I<sub>e</sub>): (690 V) 40 A (380 ... 415 V) 40 A (500 V) 40 A
  • Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 25 A (500 V) 25 A (690 V) 25 A
  • Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 20 A (500 V) 20 A (690 V) 11 A
  • Rated Operational Voltage: 750 V
  • Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 0.5 kiloampere rms
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Declaration of Conformity - CE: 1SCC301166D0201
  • ETIM 5: EC000216 - Switch disconnector
  • Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT30F3 . Santa Clara Systems carries 36,673 items from ABB.
  • Front Operated Switch-Disconnector. Types Ot 16...125 Include Protected Terminal Clamps
  • Front Operated Switch-Disconnector. Types Ot 16...125 Include Protected Terminal Clamps
  • Ip 20.
