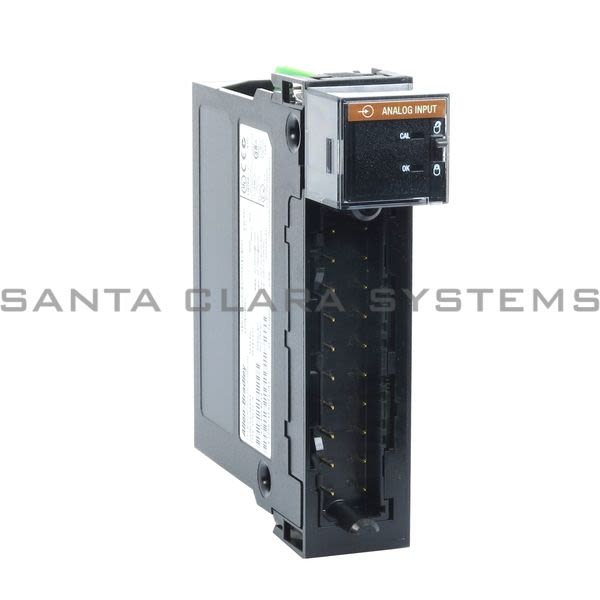

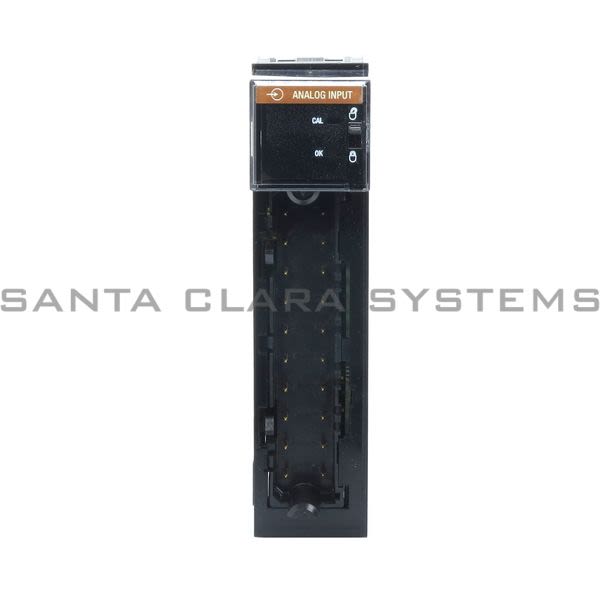

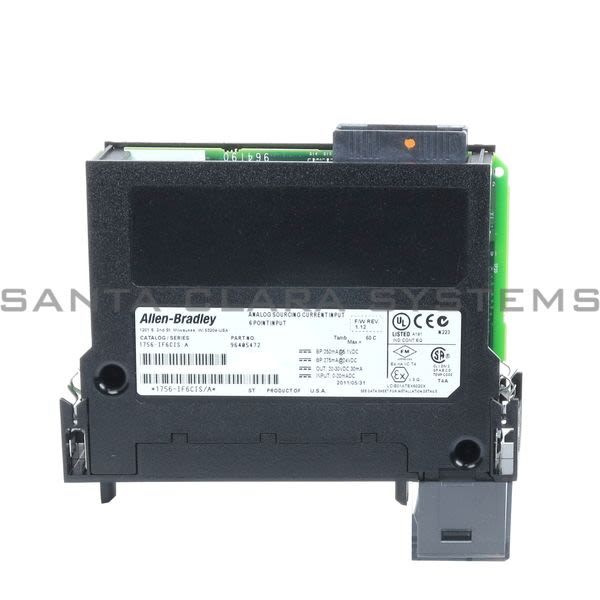

- Description: Isolated Analog Input Module | ControlLogix
- Resolution: 16 bits
- Product Type: Sourcing Current Loop Analog Input Module
- Product Series: 1756 ControlLogix I/O Modules
- Inputs: 6 individually isolated current sourcing
- Input range: 0...20 mA (overrange indication when exceeded)
- Current draw @ 5.1V: 250 mA
- Current draw @ 24V: 275 mA
- Total backplane power: 7.9 W
- Power dissipation, max: 5.1 W @ 60 C (140 F)
- Thermal dissipation: 17.4 BTU/hr
- Sourcing voltage, min - max: 20V DC...30V DC
- Sourcing current, max: Current limited to < 30 mA
- Open circuit detection time: Zero reading within 5 s
- Overvoltage protection, max: 30V AC/DC with PTC and sense resistor
- Normal mode noise rejection: 60 dB @ 60 Hz(Notch filter dependent)
- Module input scan time, min: 25 ms min floating point | 10 ms min integer
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IF6CIS . Santa Clara Systems carries 53,633 items from Allen Bradley.
