1756-IF8I

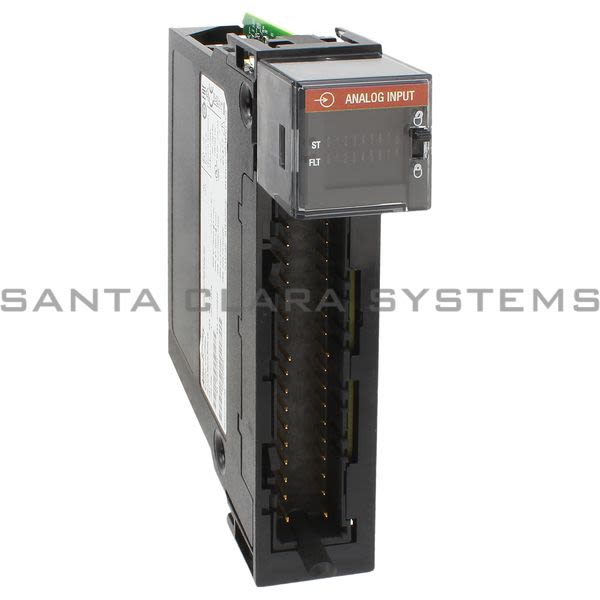

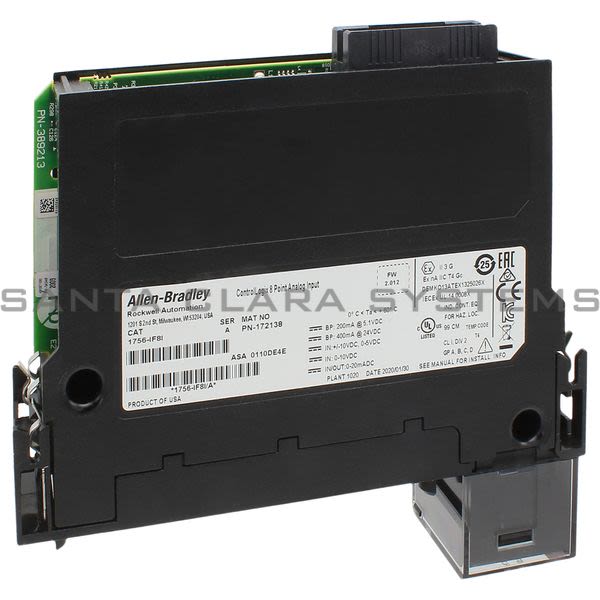

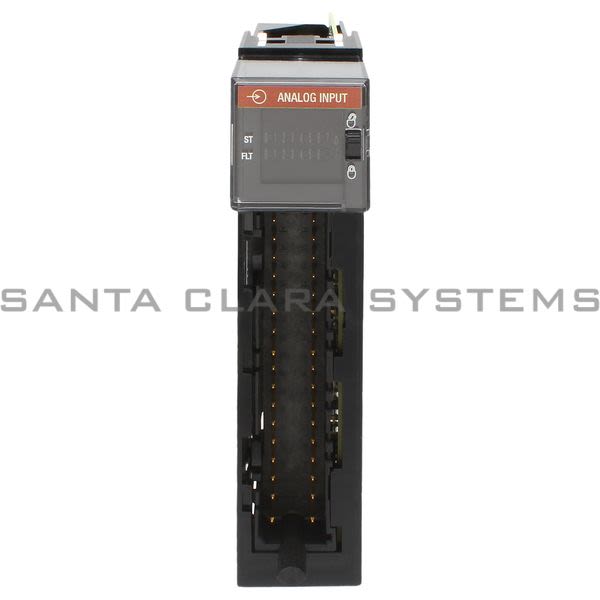

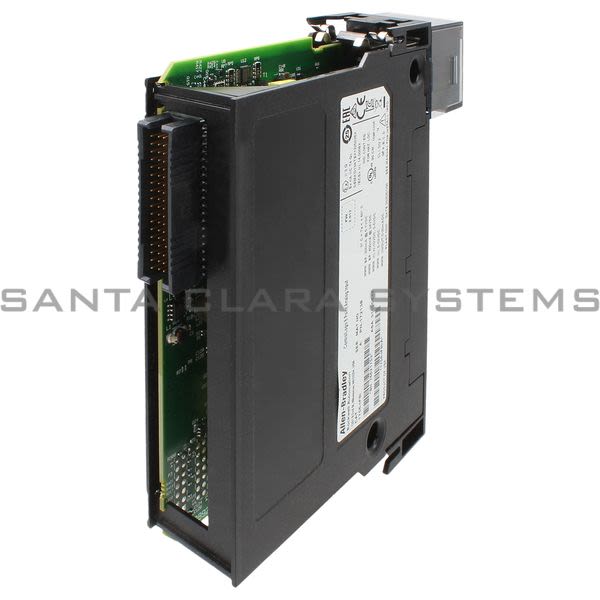

Allen Bradley - Analog Input Module | ControlLogix

Current response time:

17 Minutes 27 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Analog Input Module | ControlLogix
Input Voltage: -10V to +10V, 0V to 10V, 0V to 5V
Resolution: 24-bit
Product Type: Isolated Voltage/Current Analog Input Module
Product Series: 1756 ControlLogix I/O Modules
Inputs: Eight Isolated Channels - Any Combination of Voltage or Current Mode
Backplane voltage: 5.1V DC 200 mA, 24V DC 400 mA
Input & Output Current: 0 mA to 20 mA
Current draw @ 5.1V: 200 mA
Current draw @ 24V: Voltage/Non-sourcing Current mode: 150 mA Sourcing Current mode: 400 mA (In Sourcing Current mode, the channel provides loop power.)
Total backplane power: Voltage/Non-sourcing Current mode: 4.6 W Sourcing | Current mode: 10.6 W
Power dissipation, Voltage mode: 4.6 W (15.7 BTU/hr)

Power dissipation, Non-sourcing Current mode: 5.1 W (17.4 BTU/hr)
Power dissipation, Sourcing Current mode: 7.3 W (24.9 BTU/hr)
Thermal dissipation, Voltage mode: 15.7 BTU/hr
Thermal dissipation, Non-sourcing Current mode: 17.4 BTU/hr
Thermal dissipation, Sourcing Current mode: 24.9 BTU/hr
Sourcing voltage, min: 20V DC
Sourcing voltage, max: 36V DC (open circuit)
Sourcing current, max: Current Limited < 45 mA (IN_x/I/SRC to RTN_x)
Overvoltage protection, max: 30V DC
Common mode noise rejection: 120 dB @ 50/60 Hz
Normal mode noise rejection: 80 dB @ 60 Hz (Notch filter dependent)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IF8I . Santa Clara Systems carries 53,635 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
