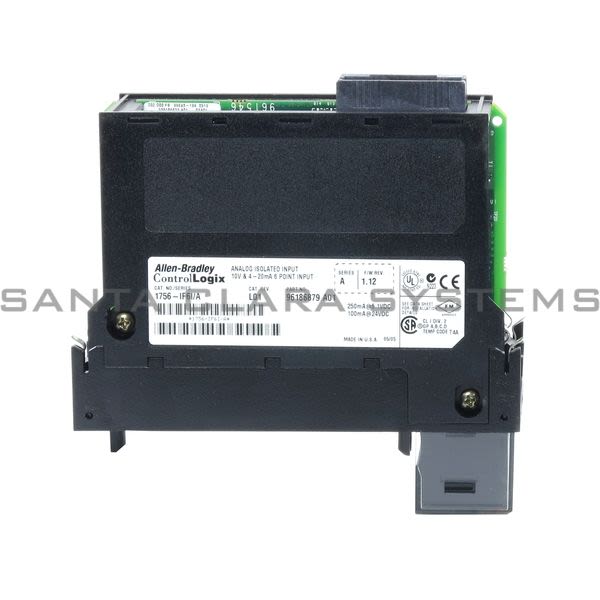

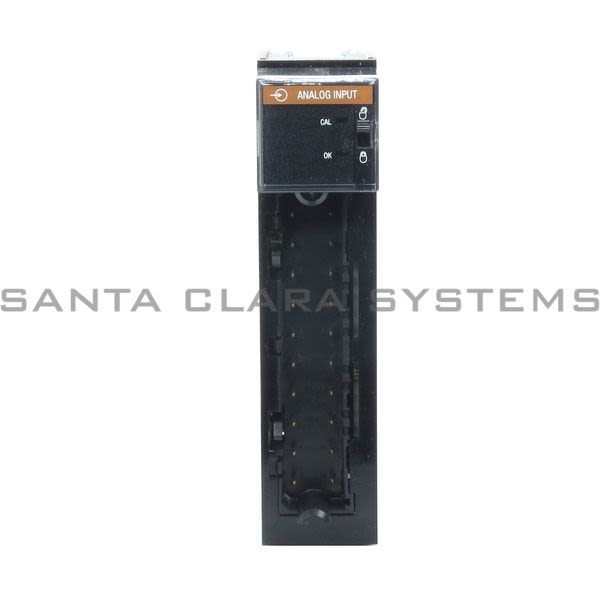

- Description: Input Module | ControlLogix
- Resolution: 16 bits
- Product Type: Isolated Voltage/Current Analog Input Module
- Product Series: 1756 ControlLogix I/O Modules
- Inputs: 6 individually isolated
- Current draw @ 5.1V: 250 mA
- Current draw @ 24V: 100 mA
- Total backplane power: 3.7 W
- Power dissipation, max: Voltage: 3.7 W | Current: 4.3 W
- Thermal dissipation: Voltage: 12.62 BTU/hr | Current: 14.32 BTU/hr
- Open circuit detection time: Positive full scale reading within 5 s
- Overvoltage protection, max: Voltage: 120V AC/DC | Current: 8V AC/DC (with onboard current resistor)
- Common mode noise rejection: 120 dB @ 60 Hz | 100 dB @ 50 Hz
- Calibration interval: 6 months
- Module error: 0.54% of range
- Data format: Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
- Module conversion method: Sigma-Delta
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IF6I . Santa Clara Systems carries 53,635 items from Allen Bradley.
