1756-IF8

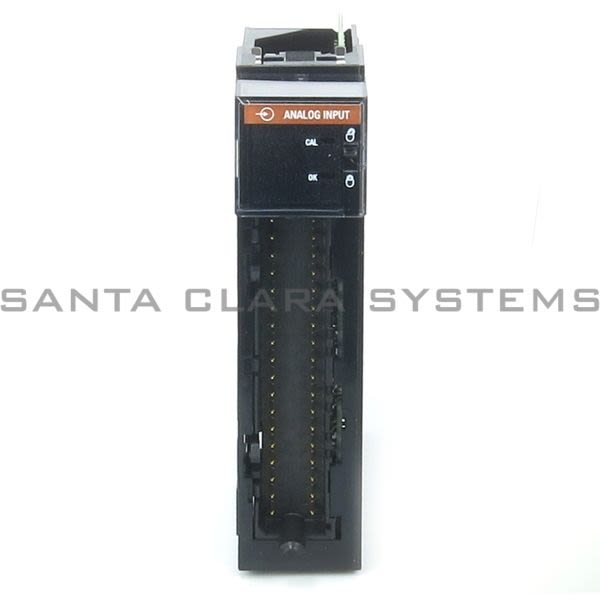

Allen Bradley - Input Module | ControlLogix

Current response time:

12 Minutes 48 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Input Module | ControlLogix
Product Type: Voltage/Current Analog Input Module
Product Series: 1756 ControlLogix I/O Modules
Inputs: Eight single-ended, Four differential, Two high-speed differential
Current draw @ 5.1V: 150 mA
Current draw @ 24V: 40 mA
Total backplane power: 1.73 W
Backplane Voltage: 5.1V DC, 150 mA max, 24V DC, 40 mA max
Input voltage range: -10...+10V
Input current range: 4...20mA (Limited to 100VA)

Power consumption: 1.73 W
Power dissipation: Voltage: 1.73 W | Current 2.33 W
Thermal dissipation: Voltage: 5.88 BTU/hr | Current: 7.92 BTU/hr
Overvoltage protection, max: Voltage: 30V DC | Current: 8V DC
Common mode noise rejection: >100 dB @ 50/60 Hz
Normal mode noise rejection: >80 dB @ 50/60 Hz(Notch filter dependent)
Calibration interval: 12 months
Module error: Voltage: 0.1% of range | Current: 0.3% of range
Data format: Integer mode (left justified, 2 s complement) IEEE 32-bit floating point

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IF8 . Santa Clara Systems carries 53,612 items from Allen Bradley.
