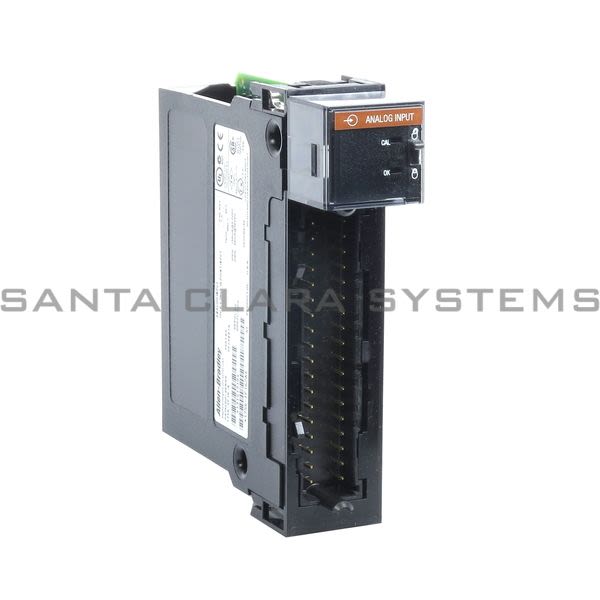

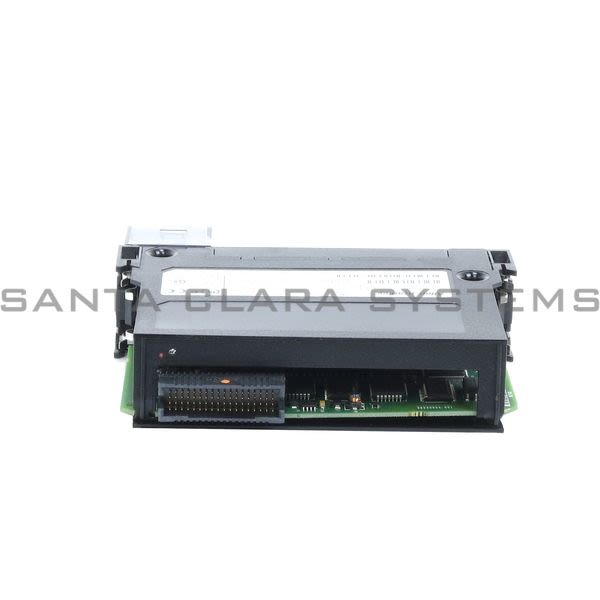

- Description: Analog Input Module | ControlLogix
- Product Type: Voltage/Current Analog Input Module
- Product Series: 1756 ControlLogix I/O Modules
- Inputs: 16 single ended, 8 differential or 4 differential (high speed)
- Input range: 10V | 0...10V | 0...5V | 0...20 mA
- Current draw @ 5.1V: 150 mA
- Current draw @ 24V: 65 mA
- Total backplane power: 2.33 W
- Voltage and current ratings, Backplane: 5.1V DC, 150 mA max 24V DC, 65 mA max
- Thermal dissipation: Voltage: 7.84 BTU/hr | Current: 13.3 BTU/hr
- Overvoltage protection, max: Voltage: 30V DC | Current: 8V DC
- Power consumption: 2.3 W
- Module error: Voltage: 0.1% of range | Current: 0.3% of range
- Power dissipation: Voltage: 2.3 W | Current: 3.9 W
- Data format: Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IF16 . Santa Clara Systems carries 53,612 items from Allen Bradley.
