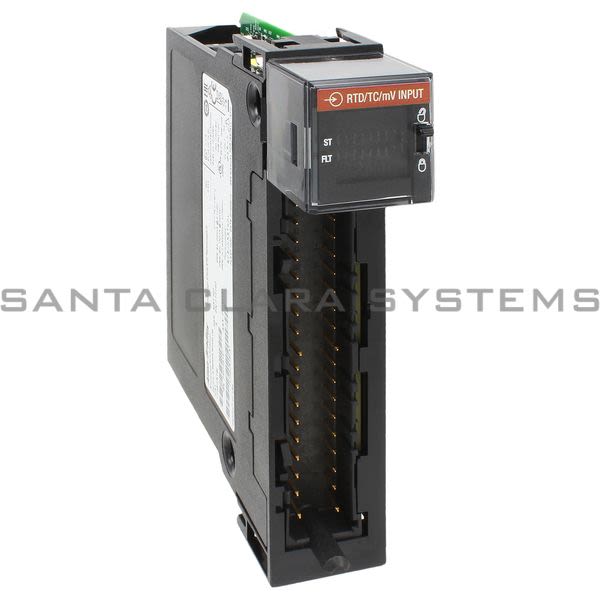

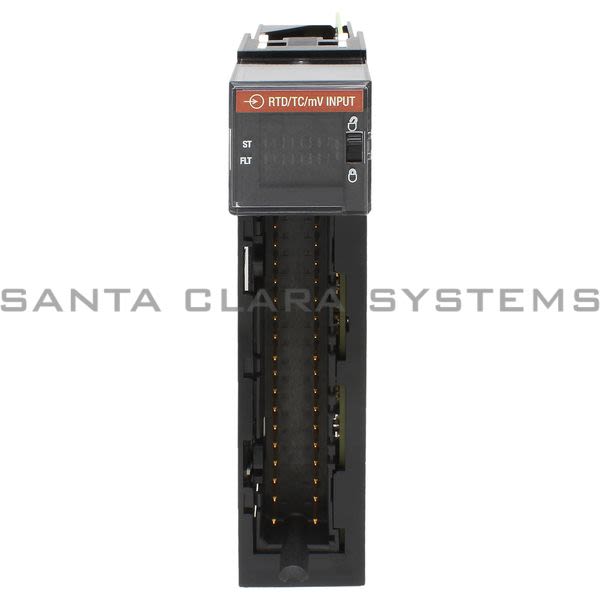

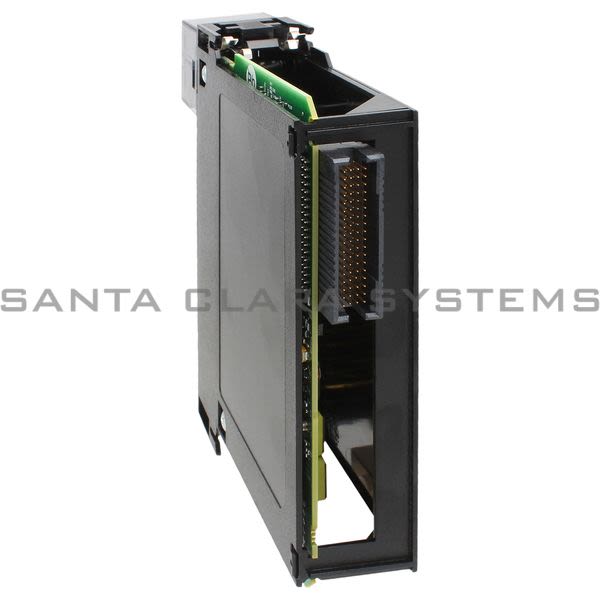

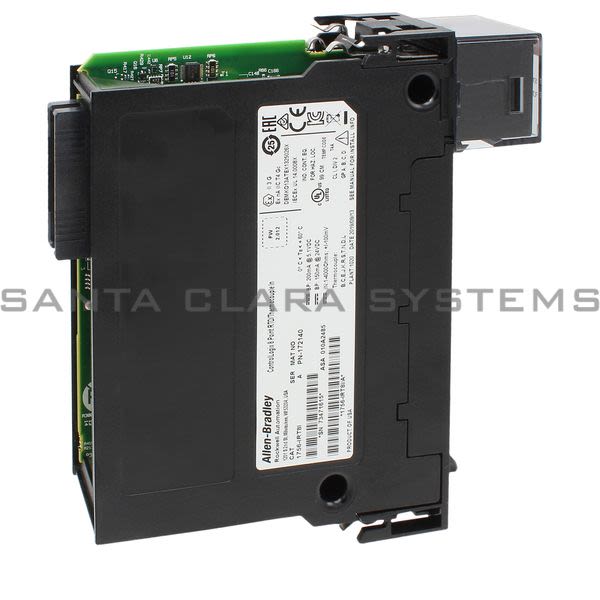

1756-IRT8I

Allen Bradley - Temperature Sensing Module | ControlLogix

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Temperature Sensing Module | ControlLogix
Resolution: 24 bits
Product Type: Isolated RTD/Thermocouple Analog Input Module
Product Series: 1756 ControlLogix I/O Modules
Inputs: Eight isolated channels - Any combination of RTD or Thermocouple mode Two CJC sensors for Thermocouple use. The CJC sensors, product catalog number 1756-CJC, do not come with the module. You must order the sensors separately
Thermocouple types: B, C, D, E, J, K, N, R, S, T, TXK/XK (L)
Thermocouple linearization: ITS-90
Current draw @ 5.1V: 200 mA
Current draw @ 24V: 150 mA

Total backplane power: 4.6 W
Power dissipation: 4.6 W (15.7 BTU/hr) max
Thermal dissipation: 15.7 BTU/hr
Overvoltage protection, max: 30V DC
Module error over full temperature range: 0.1%
Module input scan time, min: 1 ms
Data format: IEEE 32-bit floating point
Module conversion method: Sigma-Delta
Isolation voltage: 250V (continuous), reinforced insulation type, inputs to backplane. 250V (continuous), basic insulation type, input to input.
