1756-IT6I

Get a Quote

Current response time:

By 5AM PT on Thursday

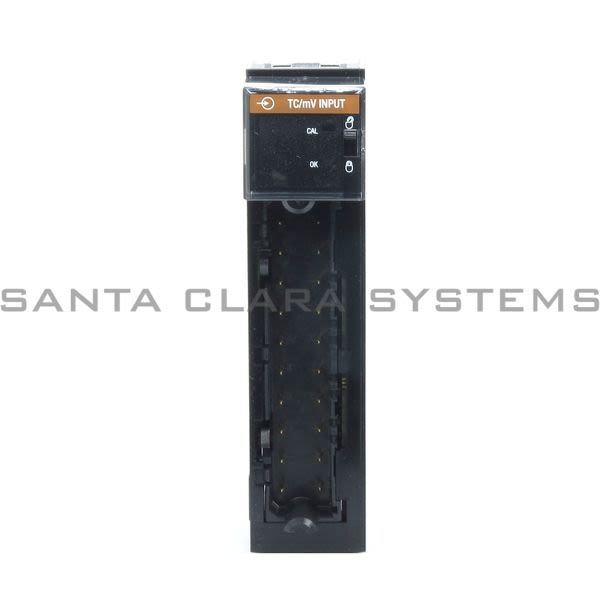

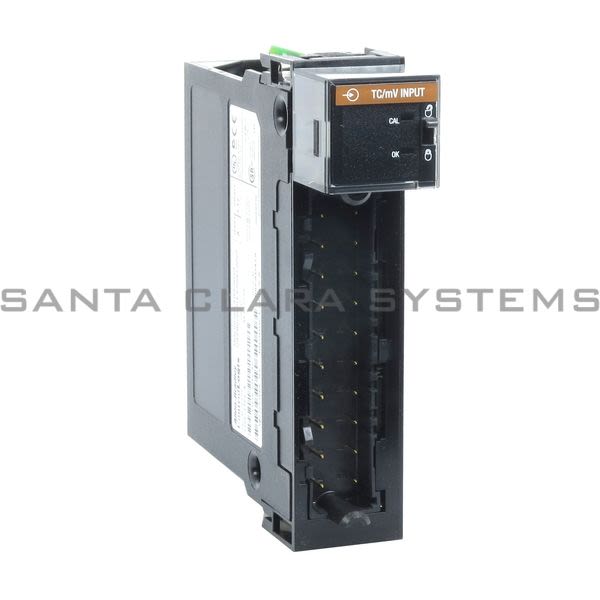

  • Description: Isolated Thermocouple Module | ControlLogix
  • Resolution: 16 bits
  • Product Type: Temperature Sensing Analog Input Module
  • Product Series: 1756 ControlLogix I/O Modules
  • Inputs: Six Individually Isolated Thermocouple | 1 CJC
  • Input range: -1278 mV | -1230 mV (high-resolution range)
  • Thermocouples: B, E, J, K, R, S, T, N, C, D, L (TXK/XK)
  • Thermocouple linearization: ITS-90
  • Current draw @ 5.1V: 250 mA
  • Current draw @ 24V: 125 mA
  • Total backplane power: 4.3 W
  • Power dissipation, max: 4.3 W
  • Thermal dissipation: 14.66 BTU/hr
  • Open circuit detection time: Positive full scale reading within 2 s
  • Overvoltage protection, max: 120V AC/DC
  • Common mode noise rejection: 120 dB @ 60 Hz | 100 dB @ 50 Hz
  • Calibration interval: 6 months
  • Module error: 0.5% of range
  • Module conversion method: Sigma-Delta
  • Data format: Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
