IW5058

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10V to 36V DC
  • Sensing Range: 8mm
  • Mounting: non-flush mountable
Get a Quote

Current response time:

14 Minutes 59 Seconds

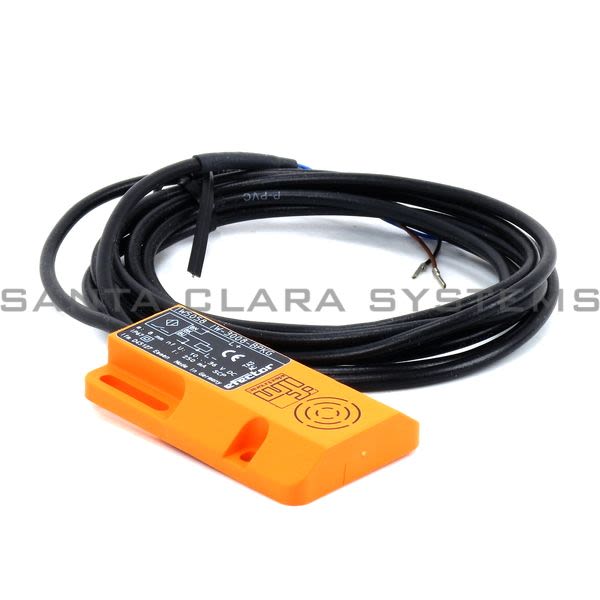

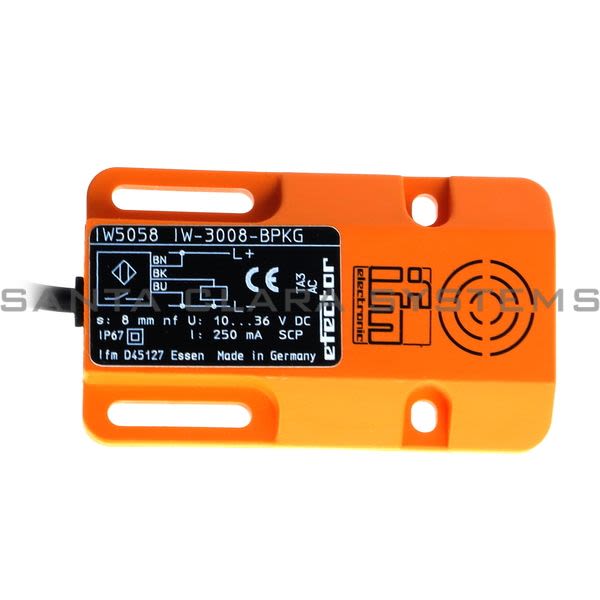

  • Description: Inductive Sensor | IW-3008-BPKG
  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10V to 36V DC
  • Sensing Range: 8mm
  • Mounting: non-flush mountable
  • Material: PBT
  • Ambient temperature [C]: -25 to 80
  • Alternate Manufacturer Name: IFM
  • Housing: rectangular
  • Dimensions [mm]: 60 x 36 x 10
  • Current consumption [mA]: 15; (24 V)
  • Protection class: II
  • Reverse polarity protection: yes
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 250
  • Switching frequency DC [Hz]: 300
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Real sensing range Sr [mm]]: 8 10 %
  • Operating distance [mm]: 0...6.5
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
  • Hysteresis [% of Sr]: 1...15
  • Switch-point drift [% of Sr]: -10...10
  • Protection: IP 67
  • EMC: EN 60947-5-2 EN 55011 class B
  • MTTF [years]: 2526
  • Weight [g]: 58.6
  • Display: Switching status 1 x LED, yellow
  • Pack quantity: 1 pcs.

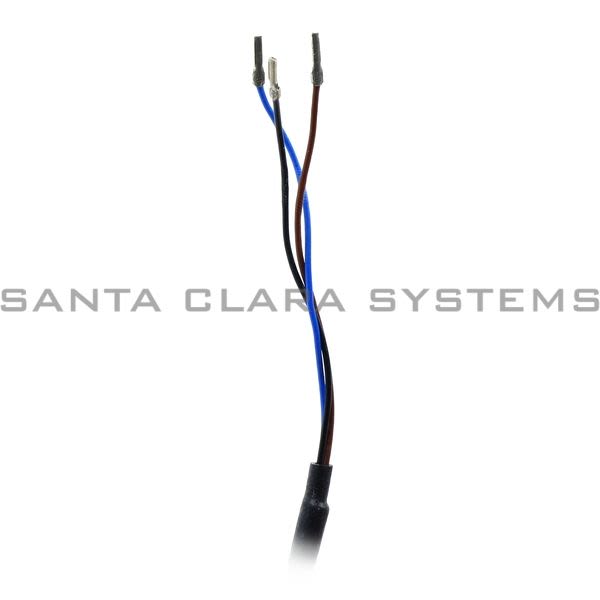

  • Connection: Cable: 2 m, PVC; 3 x 0.14 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IW5058 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
