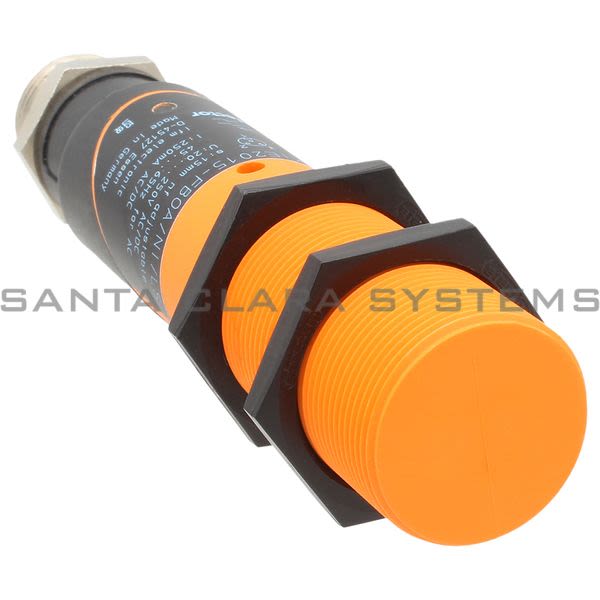

• Efector KI3514 Capacitive Sensor | KIE2015-FBOA/NI/LS300L Product Image

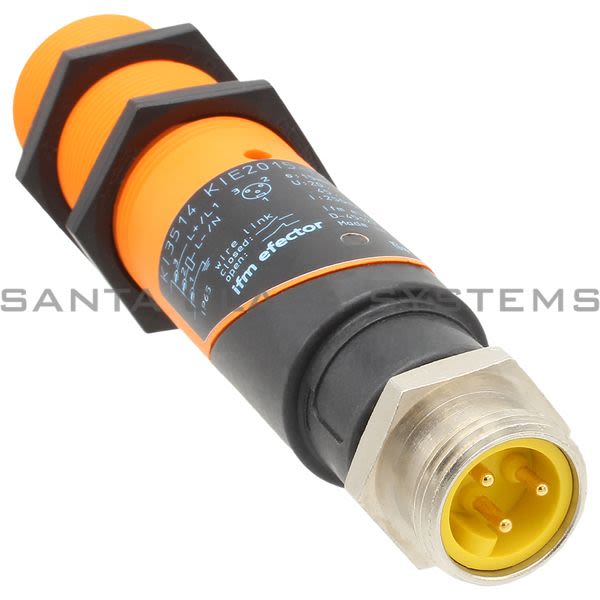

  • Efector KI3514 Capacitive Sensor | KIE2015-FBOA/NI/LS300L Product Image

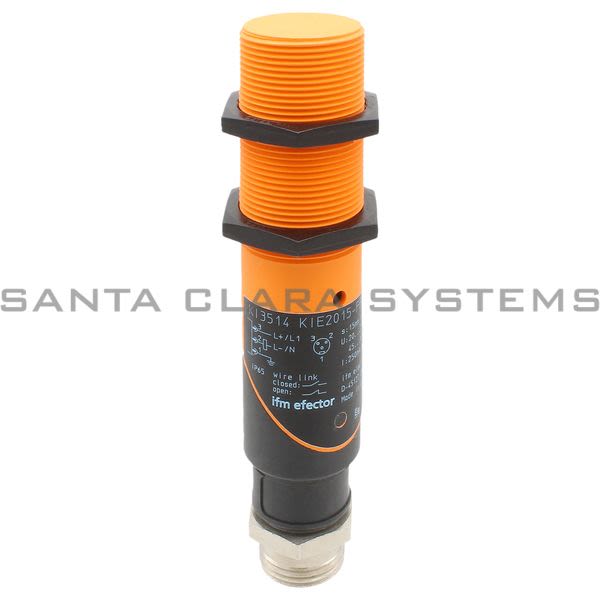

  • Efector KI3514 Capacitive Sensor | KIE2015-FBOA/NI/LS300L Product Image

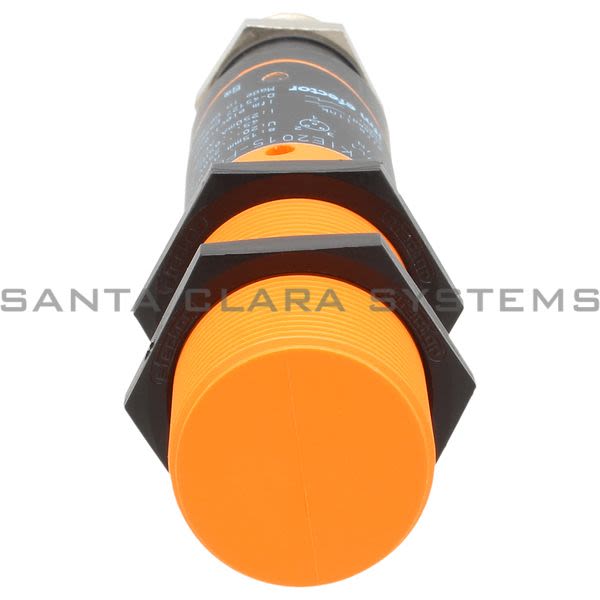

  • Efector KI3514 Capacitive Sensor | KIE2015-FBOA/NI/LS300L Product Image
  • Efector KI3514 Barcode

KI3514

Product Summary:

  • Output Function: Normally Open / Closed; (Selectable)
  • Mounting: Non-Flush Mountable
  • Material: Pbt; End Cap: Pc
  • Operating Voltage [V]: 20...250 Ac/Dc
  • Protection Class: I
Get a Quote

Current response time:

17 Minutes 47 Seconds
  • Description: Capacitive Sensor | KIE2015-FBOA/NI/LS300L
  • Output Function: Normally Open / Closed; (Selectable)
  • Mounting: Non-Flush Mountable
  • Material: Pbt; End Cap: Pc
  • Operating Voltage [V]: 20...250 Ac/Dc
  • Protection Class: I
  • Reverse Polarity Protection: No
  • Max. Voltage Drop Switching Output Dc [V]: 8
  • Max. Voltage Drop Switching Output Ac [V]: 10
  • Minimum Load Current [Ma]: 5
  • Max. Leakage Current [Ma]: 2.5 (250 V Ac) / 1.7 (110 V Ac) / 1.5 (24 V Dc)
  • Permanent Current Rating Of Switching Output Ac [Ma]: 200; (250 (...50 C))
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200; (250 (...50 C))
  • Short-Time Current Rating Of Switching Output [Ma]: 2200; (20 Ms / 1 Hz)
  • Switching Frequency Ac [Hz]: 25
  • Switching Frequency Dc [Hz]: 40
  • Short-Circuit Proof: No
  • Overload Protection: No
  • Sensing Range [Mm]: 3...15
  • Sensing Range Adjustable: Yes
  • Factory Setting Sensing Range [Mm]: 15
  • Real Sensing Range Sr [Mm]: 15 10 %
  • Operating Distance [Mm]: 0...12.1
  • Correction Factor: Glass: 0.4 / Water: 1 / Ceramics: 0.2 / Pvc: 0.2
  • Hysteresis [% Of Sr]: 1...15
  • Switch-Point Drift [% Of Sr]: -15...15
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 65
  • Increased Immunity: Yes; (Increased Immunity To Conducted Radio Frequency Interference)
  • Emc: En 60947-5-2
  • Housing: Threaded Type
  • Dimensions [Mm]: M30 X 1.5
  • Thread Designation: M30 X 1.5
  • Display: Switching Status 1 X Led, Red
  • Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
  • Accessories (Supplied): Lock Nuts: 2 Screwdriver: 1
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KI3514 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • KIE2015-FBOA/NI/LS300L
