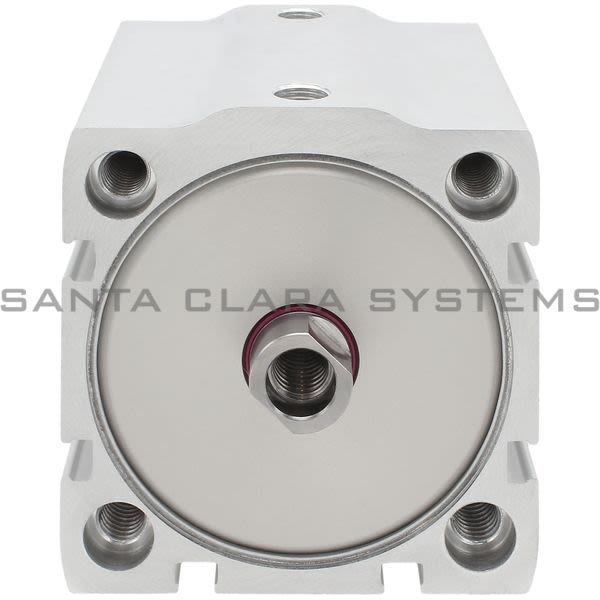

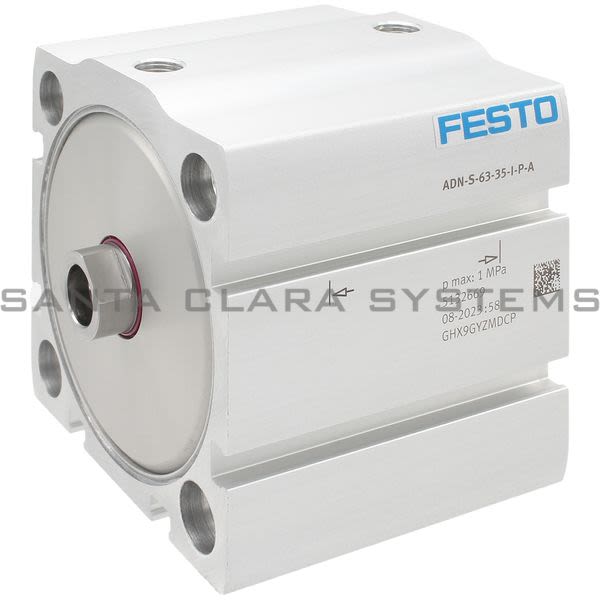

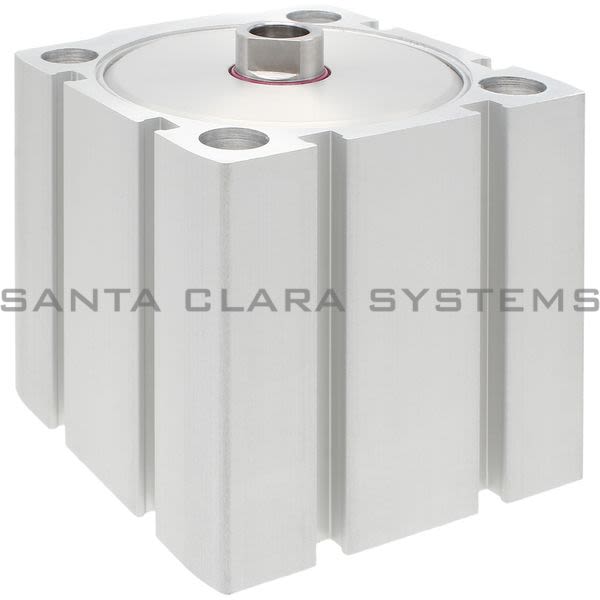

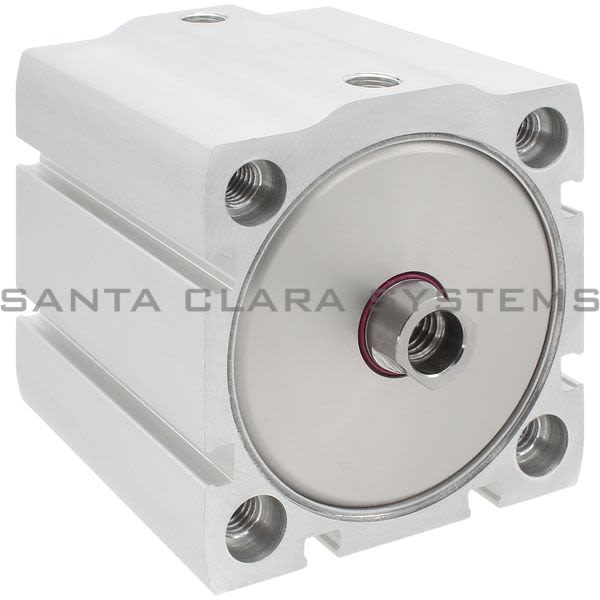

- Description: Compact Air Cylinder
- Ambient temperature: 0 C ... 60 C
- Stroke: 35 mm
- Piston diameter: 63 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Mode of operation: Double-acting
- Piston rod end: Internal thread
- Structural design: Piston Piston - rod
- Position sensing: For proximity sensor
- Symbol: 00991217
- Variants: Piston rod at one end
- Operating pressure MPa: 0.04 MPa ... 1 MPa
- Operating pressure: 0.4 bar ... 10 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Impact energy in the end positions: 1.3 J
- Theoretical force at 6 bar, retracting: 1750 N
- Theoretical force at 6 bar, advancing: 1870 N
- Moving mass at 0 mm stroke: 151 g
- Additional moving mass per 10 mm stroke: 16 g
- Basic weight with 0 mm stroke: 499 g
- Additional weight per 10 mm stroke: 77 g
- Type of mounting: Optionally: With through-hole - With internal thread - With accessories
- Pneumatic connection: G1/8
- Cover material: Wrought aluminum alloy, anodized
- Material of dynamic seals: TPE-U(PU)
- Housing material: Wrought aluminum alloy, anodized
- Piston rod material: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ADN-S-63-35-I-P-A . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
