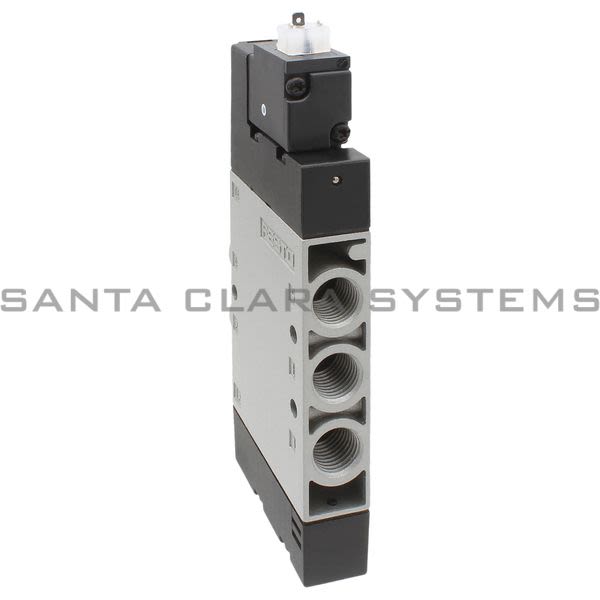

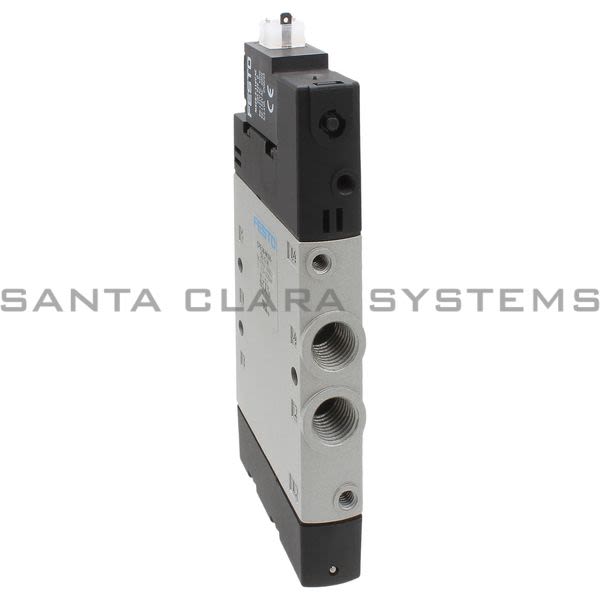

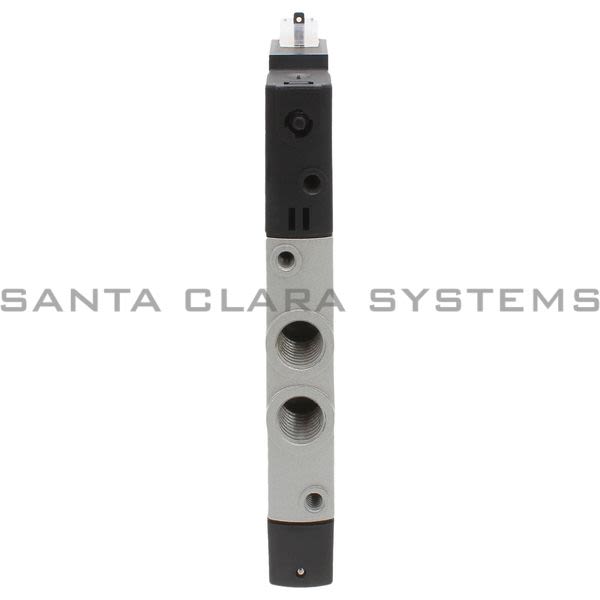

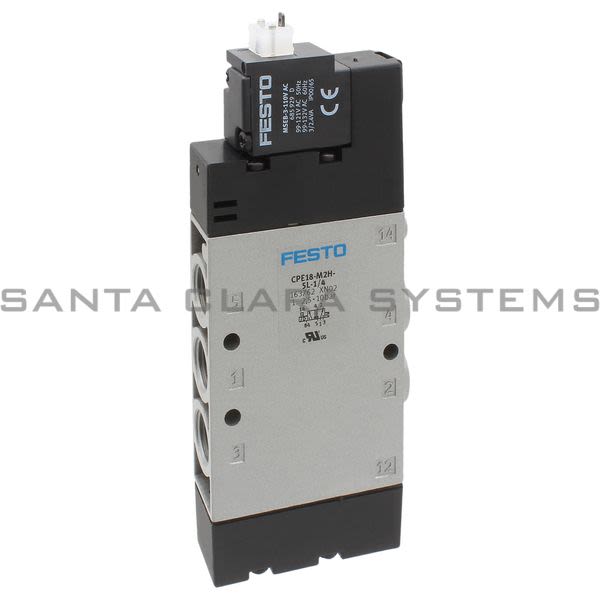

CPE18-M2H-5L-1-4

Festo - Air Solenoid Valve

Current response time:

By 5AM PT on Monday

Emergency?

Description: Air Solenoid Valve
Width: 18 mm
Ambient temperature: -5 °C ... 50 °C
Electrical connection: Form C
Valve function: 5/2, monostable
Actuation type: Electrical
Normal nominal flow rate (normalized to DIN 1343): 1500 l/min
Pneumatic working port: G1/4
Operating voltage: 110V AC
Operating pressure: 0.25 MPa ... 1 MPa - 2.5 bar ... 10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP65 - With plug socket - as per IEC 60529
Nominal width: 8 mm
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory - Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 00991023
Valve position ID: Label holder
Lap: Overlap
Switching time off: 20 ms

On switching time: 26 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 3300 µs
Max. negative test pulse on 1 signal: 3100 µs
Coil characteristics: 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Permissible voltage fluctuations: -15 % / +10 %
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -5 °C ... 50 °C
Product weight: 220 g
Type of mounting: With through-hole
Pilot exhaust air port 82: M5
Pilot exhaust air port 84: M5
Pilot air port 12: M5
Pilot air port 14: M5
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/4
Pneumatic connection 5: G1/4

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPE18-M2H-5L-1-4 . Santa Clara Systems carries 7,778 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
