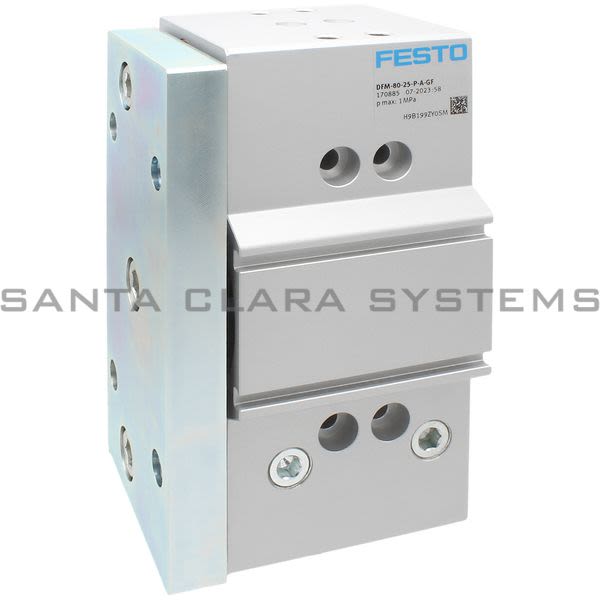

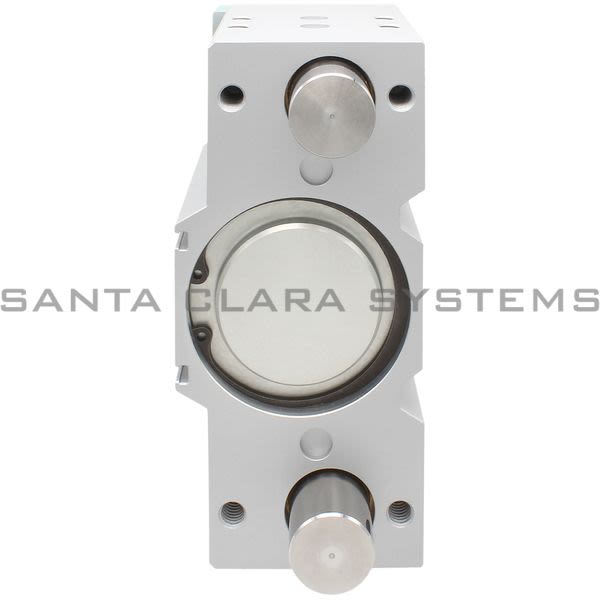

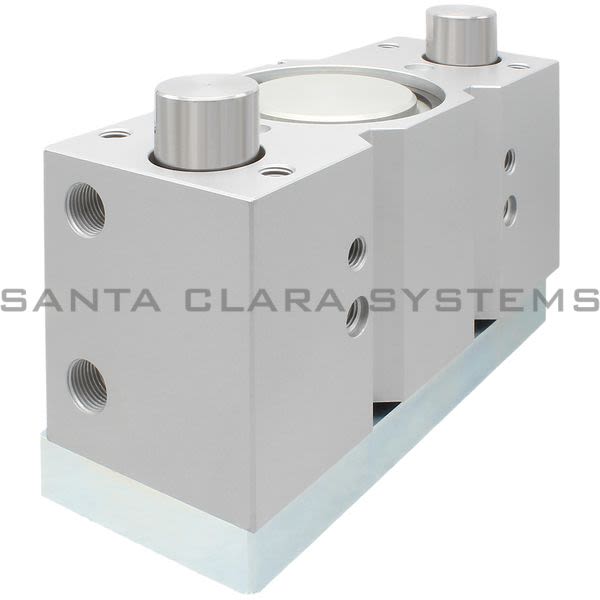

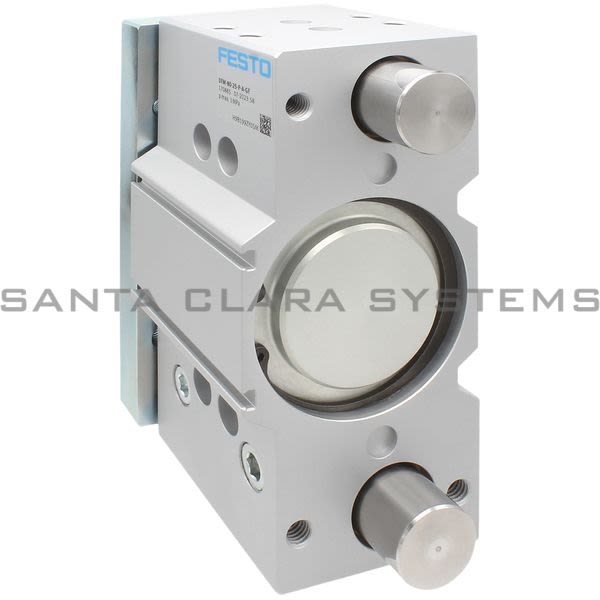

- Description: Guided Actuator
- Ambient temperature: -20 C ... 80 C
- Distance of centre of gravity of payload to yoke plate xs: 125 mm
- Stroke: 25 mm
- Piston diameter: 80 mm
- Drive unit operating mode: Yoke
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Guide: Sliding guide
- Structural design: Guide
- Position sensing: For proximity sensor
- Symbol: 00991737
- Perating pressure: 0.5 bar ... 10 bar
- Max. speed: 0.4 m/s
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Impact energy in the end positions: 0.75 J
- Max. force Fy: 2320 N
- Max. force Fy static: 2320 N
- Max. force Fz: 2320 N
- Max. force Fz static: 2320 N
- Max. torque Mx: 179.8 Nm
- Max. static moment Mx: 179.8 Nm
- Max. torque My: 67.28 Nm
- Max. static moment My: 67.28 Nm
- Max. torque Mz: 67.28 Nm
- Max. static moment Mz: 67.28 Nm
- Max. permissible torque load Mx as a function of the stroke: 41.01 Nm
- Max. payload as a function of the stroke at defined distance xs: 276 N
- Theoretical force at 6 bar, retracting: 2827 N
- Theoretical force at 6 bar, advancing: 3016 N
- Moving mass: 4141 g
- Product weight: 6984 g
- Alternative connections: See product drawing
- Pneumatic connection: G3/8
- Cover material: Wrought aluminum alloy
- Seals material: NBR
- Housing material: Wrought aluminum alloy
- Piston rod material: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DFM-80-25-P-A-GF . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
