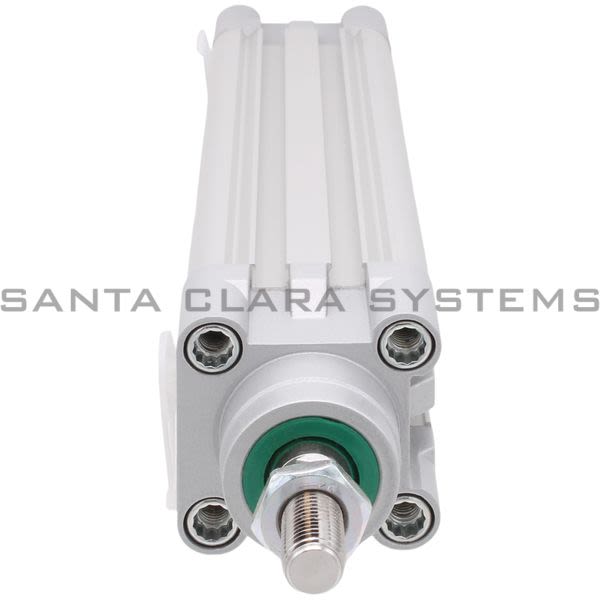

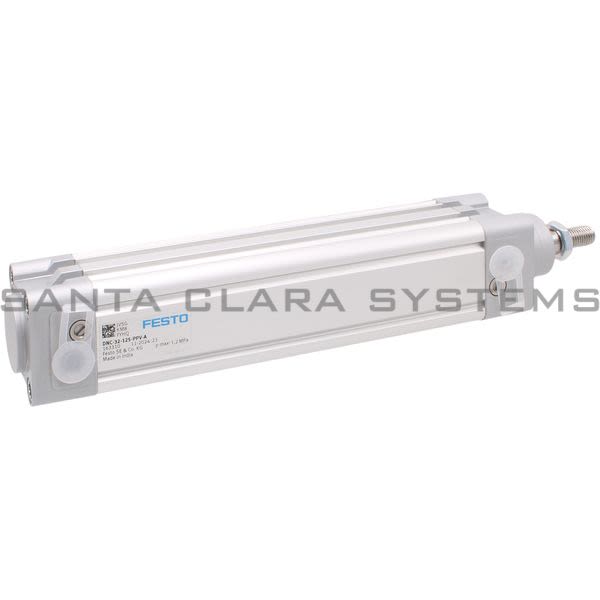

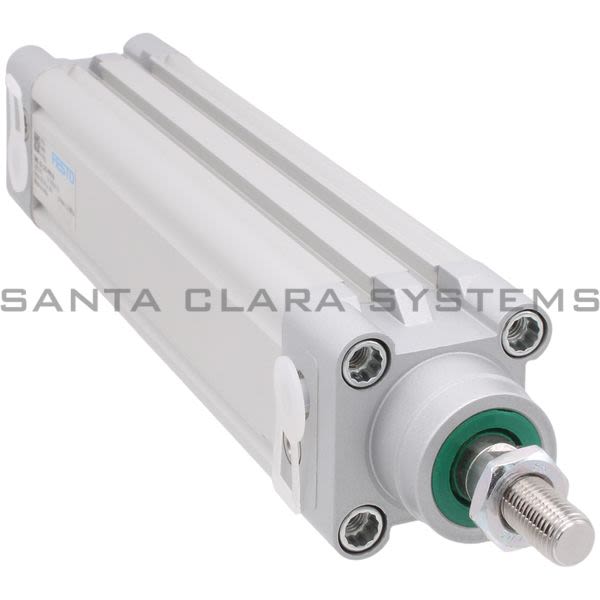

DNC-32-125-PPV-A

Festo - ISO Cylinder

Product Summary:

Ambient temperature: -20 °C ... 80 °C
Stroke: 125 mm
Piston diameter: 32 mm
Piston rod thread: M10x1.25
Cushioning: Pneumatic cushioning, adjustable at both ends

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: ISO Cylinder
Ambient temperature: -20 °C ... 80 °C
Stroke: 125 mm
Piston diameter: 32 mm
Piston rod thread: M10x1.25
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Conforms to standard: ISO 15552
Piston rod end: External thread
Structural design: Piston - Piston rod - Profile barrel
Position sensing: For proximity sensor
Symbol: 00991235
Variants: Piston rod at one end
Operating pressure MPa: 0.06 MPa ... 1.2 MPa
Operating pressure: 0.6 bar ... 12 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Impact energy in the end positions: 0.1 J
Cushioning length: 20 mm
Theoretical force at 6 bar, retracting: 415 N
Theoretical force at 6 bar, advancing: 483 N
Moving mass at 0 mm stroke: 162 g
Additional moving mass per 10 mm stroke: 9 g
Basic weight with 0 mm stroke: 517 g
Additional weight per 10 mm stroke: 30 g
Type of mounting: With internal thread - With accessories
Pneumatic connection: G1/8
Cover material: Die-cast aluminum - Coated
Seals material: TPE-U(PU)
Piston rod material: High-alloy steel
Material of cylinder barrel: Wrought aluminum alloy - Smooth anodized
