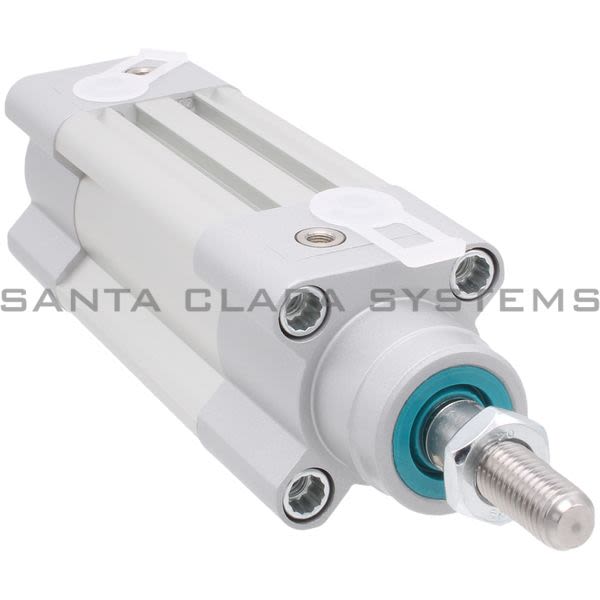

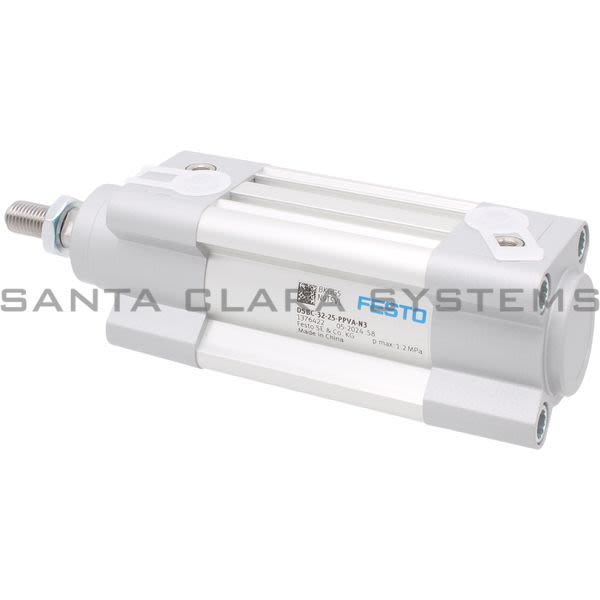

- Description: ISO Cylinder
- Ambient temperature: -20 C ... 80 C
- Stroke: 25 mm
- Piston diameter: 32 mm
- Piston rod thread: M10x1.25
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Mounting position: Any
- Conforms to standard: ISO 15552
- Piston rod end: External thread
- Structural design: Piston Piston rod Profile barrel
- Position sensing: For proximity sensor
- Symbol: 00991235
- Variants: Piston rod at one end
- Operating pressure: 0.6 bar ... 12 bar
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 6 according to ISO 14644-1
- Impact energy in the end positions: 0.4 J
- Cushioning length: 17 mm
- Theoretical force at 6 bar, retracting: 415 N
- Theoretical force at 6 bar, advancing: 483 N
- Moving mass at 0 mm stroke: 110 g
- Additional moving mass per 10 mm stroke: 9 g
- Basic weight with 0 mm stroke: 465 g
- Additional weight per 10 mm stroke: 27 g
- Type of mounting: Optionally: With internal thread With accessories
- Pneumatic connection: G1/8
- Cover material: Die-cast aluminum, coated
- Piston seal material: TPE-U(PU)
- Material of piston: Wrought aluminum alloy
- Piston rod material: High-alloy steel
- Piston rod wiper material: TPE-U(PU)
- Buffer seal material: TPE-U(PU)
- Cushion piston material: POM
- Material of cylinder barrel: Wrought aluminum alloy, smooth-anodized
- Nut material: Steel, galvanized
- Material of bearing: POM
- Flange screws material: Steel, galvanized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DSBC-32-25-PPVA-N3 . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
