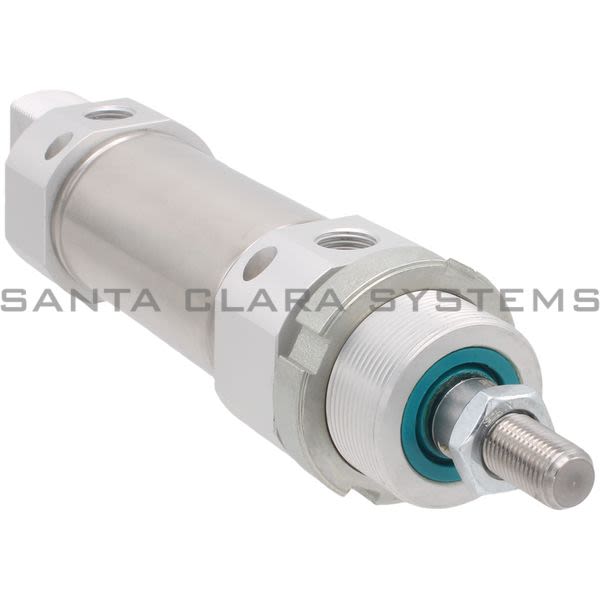

DSNU-40-50-PPV-A

Festo - Round Cylinder

Current response time:

5 Minutes 46 Seconds

Description: Round Cylinder
Ambient temperature: -20 °C ... 80 °C
Stroke: 50 mm
Piston diameter: 40 mm
Piston rod thread: M12x1.25
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Structural design: Piston Piston rod Cylinder barrel
Position sensing: For proximity sensor
Symbol: 00991235
Operating pressure: 0.1 MPa ... 1 MPa
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cushioning length: 18 mm
Theoretical force at 6 bar, retracting: 633.3 N
Theoretical force at 6 bar, advancing: 752.9 N
Moving mass: 310 g
Product weight: 781 g
Type of mounting: With accessories
Pneumatic connection: G1/4
Cover material: Wrought aluminum alloy
Seals material: NBR TPE-U(PU)
Piston rod material: High-alloy steel
Material of cylinder barrel: High-alloy stainless steel
