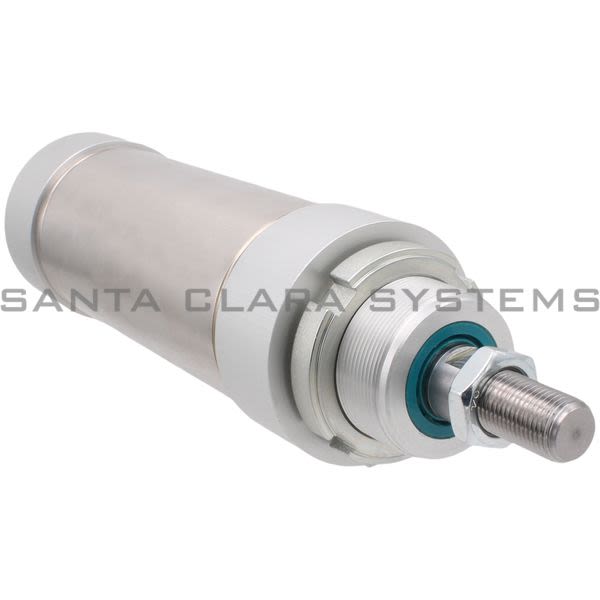

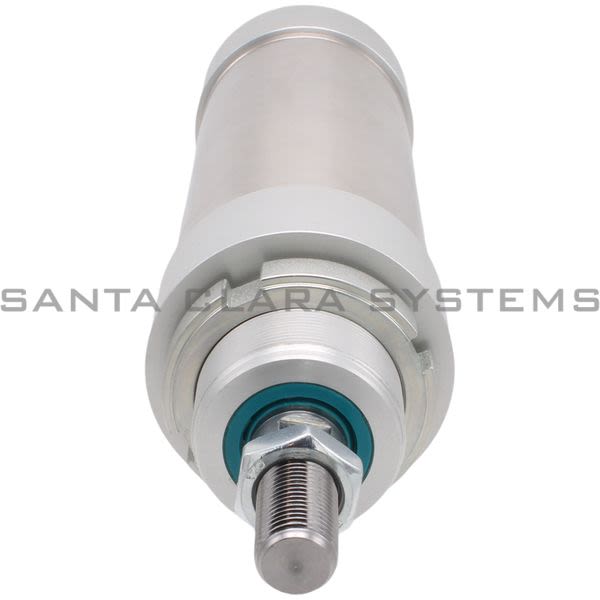

DSNU-63-100-PPV-A

Festo - Round Cylinder

Product Summary:

Ambient temperature: -20 °C ... 80 °C
Mode of operation: Double-acting
Piston diameter: 63 mm
Theoretical force at 6 bar, advancing: 1870.3 N
Stroke: 100 mm

Current response time:

13 Minutes 29 Seconds

Description: Round Cylinder
Ambient temperature: -20 °C ... 80 °C
Mode of operation: Double-acting
Piston diameter: 63 mm
Theoretical force at 6 bar, advancing: 1870.3 N
Stroke: 100 mm
Cushioning: Pneumatic cushioning, adjustable at both ends
Piston rod thread: M16x1.5
Mounting position: Any
Structural design: Piston, Piston rod, Cylinder barrel
Position sensing: For proximity sensor
Symbol: 00991235

Operating pressure: 1 bar ... 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Impact energy in the end positions: 1.3 J
Cushioning length: 21 mm
Theoretical force at 6 bar, retracting: 1681.9 N
Moving mass: 709 g
Product weight: 1885 g
Type of mounting: With accessories
Pneumatic connection: G3/8

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DSNU-63-100-PPV-A . Santa Clara Systems carries 9,904 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
