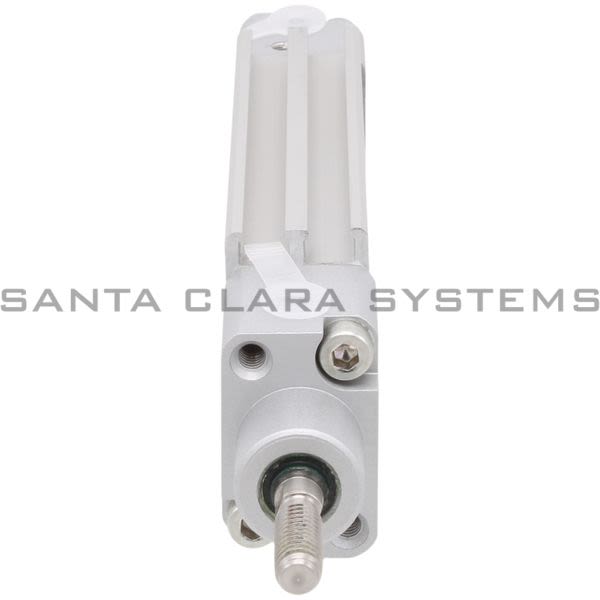

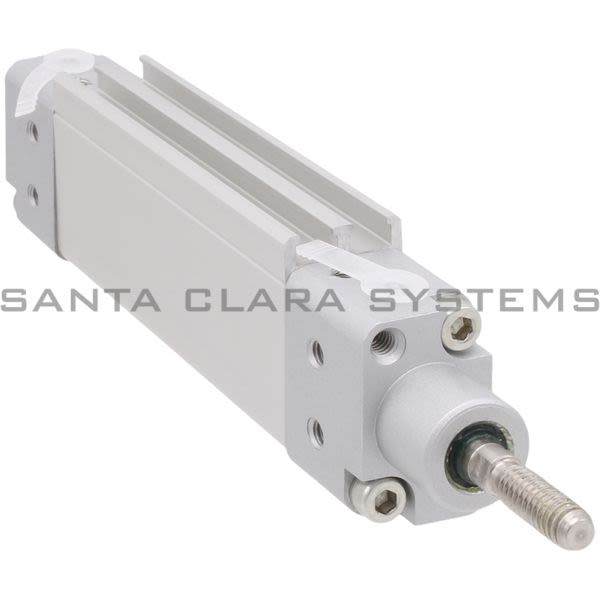

DZH-16-40-PPV-A

Festo - Flat Cylinder

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Flat Cylinder
Ambient temperature: -20 °C ... 80 °C
Stroke: 40 mm
Piston diameter: 16 mm, Equivalent diameter
Max. angle of rotation of the piston rod +/-: 3.1 deg
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston, Piston rod
Position sensing: For proximity sensor
Symbol: 00991235
Protection against torsion/guide: Oval piston
Operating pressure: 1 bar ... 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cushioning length: 14 mm
Max. torque for protection against rotation: 0.5 Nm
Theoretical force at 6 bar, retracting: 104 N
Theoretical force at 6 bar, advancing: 121 N
Additional weight per 10 mm stroke: 11 g
Basic weight with 0 mm stroke: 140 g
Type of mounting: Optionally: With internal thread, With accessories
Pneumatic connection: M5
Cover material: Aluminum
Seals material: TPE-U(PU)
Housing material: Aluminum
Piston rod material: High-alloy steel
