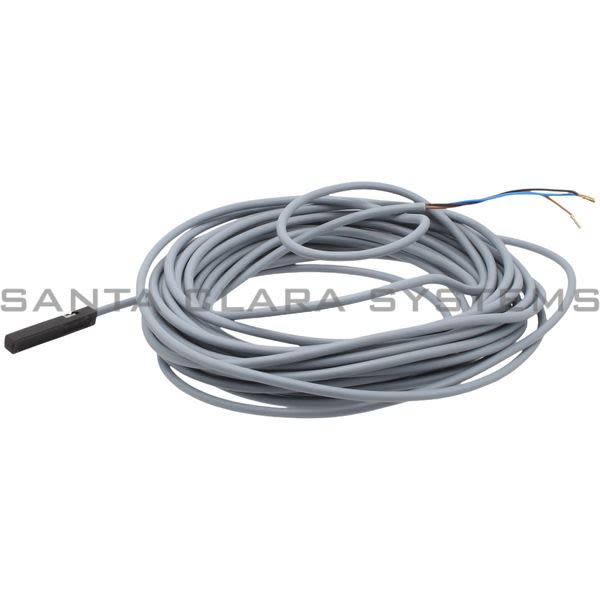

SIES-8M-PO-24V-K-7-5-OE

Festo - Proximity Sensor

Product Summary:

Size: Slot 8
Ambient temperature: -25 °C ... 70 °C
Switching output: PNP
Switching element function: N/C contact
DC operating voltage range: 10 V - 30 V

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Proximity Sensor
Size: Slot 8
Ambient temperature: -25 °C ... 70 °C
Switching output: PNP
Switching element function: N/C contact
DC operating voltage range: 10 V - 30 V
Design: For T-slot
Conforms to standard: EN 60947-5-2
EN 60947-5-2: 00991613
KC characters: KC EMC
Measured variable: Position
Measuring principle: Inductive
Rated operating distance: 1.5 mm
Reduction factors: Aluminum = 0.62 - Stainless steel V2A = 0.95 - Copper = 0.6 - Brass = 0.72 - Steel St 37 = 1.0
Repetition accuracy under constant conditions: <= 0.05 mm, approach from the side
On time: ≤1.0E-4 ms
Max. switching frequency: 4500 Hz
Max. output current: 150 mA
Max. switching capacity DC: 4.5 W

Voltage drop: ≤2 V
Inductive protective circuit: Installed
Minimum load current: 0 mA
Residual current: ≤0.01 mA
Short-circuit protection: Pulsed
Overload protection: Available
Residual ripple: 10 %
Idle current: ≤10 mA
Reverse polarity protection: For all electrical connections
Electrical connection 1, connection type: Cable
Electrical connection 1, connection technology: Open end
Electrical connection 1, number of pins/wires: 3
Connection outlet orientation: Longitudinal
Cable length: 7.5 m
Cable characteristic: Standard/suitable for energy chains
Type of mounting: Flush with T-slot - Screwed tightly - Can be inserted in slot from above
Tightening torque: 0.6 Nm
Mounting position: Any
Mounting type: Flush
