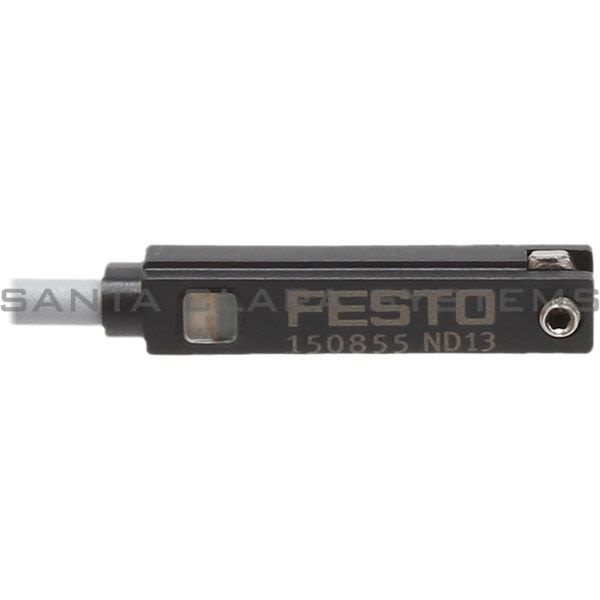

• Festo SME-8-K-LED-24 Proximity Switch Product Image

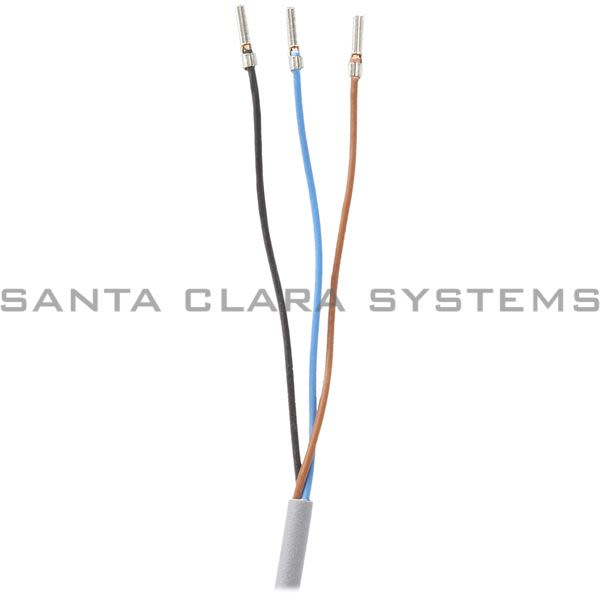

  • Festo SME-8-K-LED-24 Proximity Switch Product Image

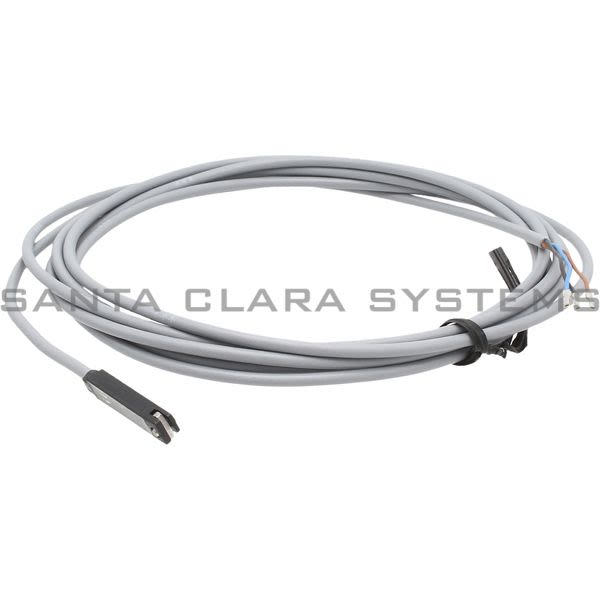

  • Festo SME-8-K-LED-24 Proximity Switch Product Image
  • Festo SME-8-K-LED-24 Barcode

SME-8-K-LED-24

Product Summary:

  • Ambient temperature: -40 C ... 60 C
  • Electrical connection: 3-wire Cable
  • Design: for T-slot
  • Conforms to standard: EN 60947-5-2
  • Symbol: 991620
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Proximity Switch
  • Ambient temperature: -40 C ... 60 C
  • Electrical connection: 3-wire Cable
  • Design: for T-slot
  • Conforms to standard: EN 60947-5-2
  • Symbol: 991620
  • Certification: RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive
  • Measuring principle: Magnetic reed
  • Switching output: Contact-based, bipolar
  • Switching element function: N/O contact
  • Reproducibility of switching value: +/- 0.1 mm
  • On time: 0.5 ms
  • Switch-off time: 0.03 ms
  • Max. switching frequency: 800 Hz
  • Max. output current: 500 mA
  • Min. switching capacity AC: 10 VA
  • Max. switching capacity DC: 10 W
  • Voltage drop: 0 V
  • Short-circuit protection: no
  • Overload protection: Not available
  • Operating voltage range AC: 12 V ... 30 V
  • DC operating voltage range: 12 V ... 30 V
  • Reverse polarity protection: no
  • Connection outlet orientation: Longitudinal
  • Cable length: 2.5 m
  • Material of cable sheath: TPE-U(PUR)
  • Type of mounting: "Clamped in T slot
  • Tightening torque: 0.2 Nm
  • Product weight: 30 g
  • Housing material: High-alloy stainless steel Epoxy resin PET PC
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: -5 C ... 60 C
  • Degree of protection: IP65 IP67
  • Insulation voltage: 50 V
  • Surge resistance: 0.8 kV
  • Contamination level: 3
  • Type code: SME
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SME-8-K-LED-24 . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
