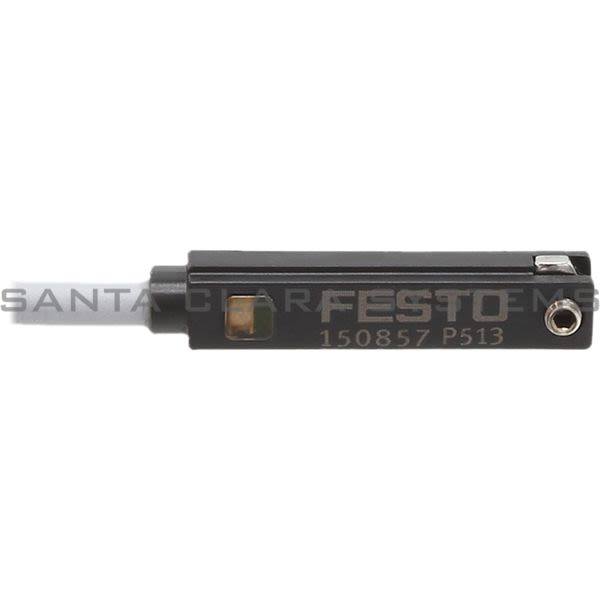

• Festo SME-8-S-LED-24 Proximity Sensor Product Image

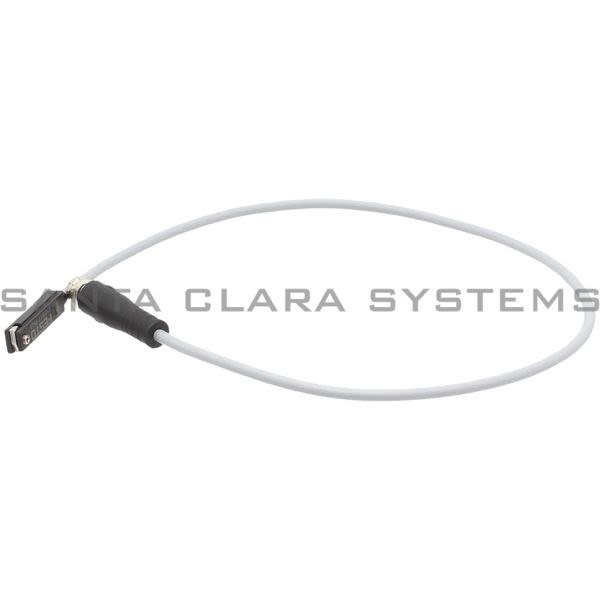

  • Festo SME-8-S-LED-24 Proximity Sensor Product Image

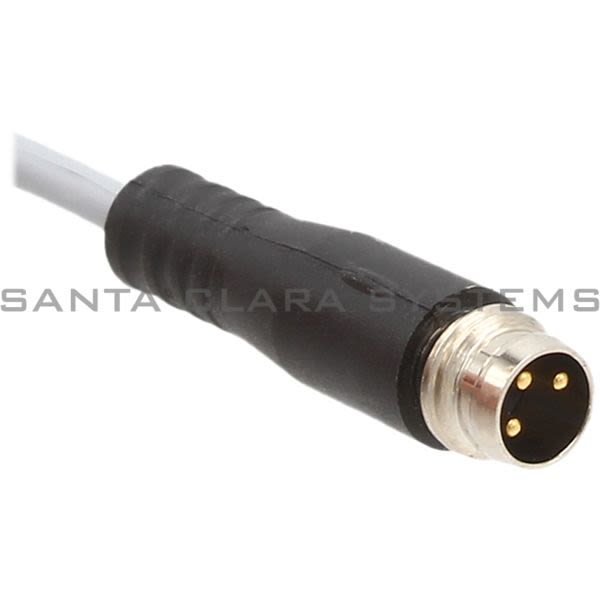

  • Festo SME-8-S-LED-24 Proximity Sensor Product Image
  • Festo SME-8-S-LED-24 Barcode

SME-8-S-LED-24

Product Summary:

  • Ambient temperature: -40 C ... 70 C
  • Electrical connection: M8x1 Cable with plug 3-pin
  • Maritime classification: See certificate
  • Type code: SME
  • Design: for T-slot
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Proximity Sensor
  • Ambient temperature: -40 C ... 70 C
  • Electrical connection: M8x1 Cable with plug 3-pin
  • Maritime classification: See certificate
  • Type code: SME
  • Design: for T-slot
  • Conforms to standard: EN 60947-5-2
  • Symbol: 991148
  • Certification: RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive
  • Measuring principle: Magnetic reed
  • Switching output: Contact-based, bipolar
  • Switching element function: N/O contact
  • Reproducibility of switching value: +/- 0.1 mm
  • On time: 0.5 ms
  • Switch-off time: 0.03 ms
  • Max. output current: 500 mA
  • Min. switching capacity AC: 10 VA
  • Max. switching capacity DC: 10 W
  • Short-circuit protection: no
  • Overload protection: Not available
  • Operating voltage range AC: 12 V ...30 V
  • DC operating voltage range: 12 V ...30 V
  • Reverse polarity protection: no
  • Connection outlet orientation: Longitudinal
  • Material of pin contacts: Nickel-plated Brass
  • Cable length: 0.3 m
  • Material of cable sheath: TPE-U(PUR)
  • Type of mounting: Clamped in T slot Can be inserted in slot lengthwise
  • Tightening torque: 0.2 Nm
  • Product weight: 8 g
  • Housing material: PC High-alloy stainless steel PET Epoxy resin
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: -5 C ...70 C
  • Degree of protection: IP67
  • Insulation voltage: 50 V
  • Surge resistance: 0.8 kV
  • Contamination level: 3
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SME-8-S-LED-24 . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 150857
