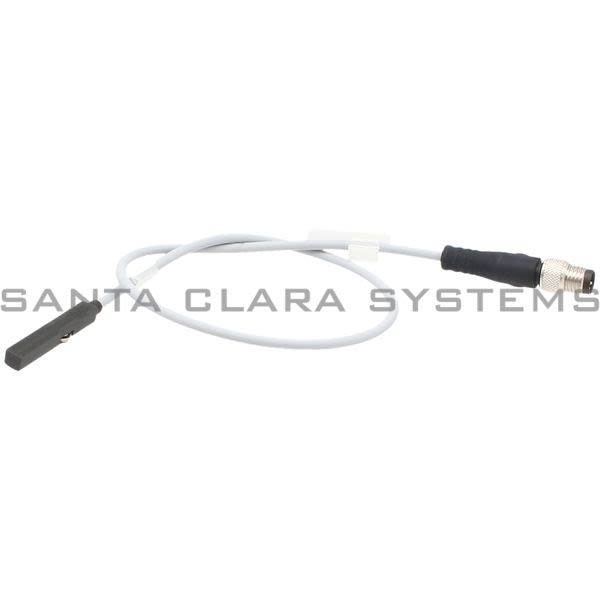

SME-8M-DS-24V-K-0-3-M8D

Festo - Proximity Sensor

Current response time:

10 Minutes 10 Seconds

Description: Proximity Sensor
Ambient temperature: -40 C ...70 C
Electrical connection 1, type of mounting: Screw-type lock
Electrical connection for input 1, connection pattern: 991155
Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, connection type: Cable with plug
Electrical connection 1, number of pins/wires: 3
Valve function: 5/2, bistable
Lap: Overlap
Type code: SME
Electrical connection 1 type of mounting: Screw-type lock
Electrical connection for input 1 connection pattern: 991155
Electrical connection 1 connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1 connection type: Cable with plug
Electrical connection 1 number of pins/wires: 3
Symbol: 991619
Certification: c UL us - Listed (OL) RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive
Special features: Oil-resistant
Measuring principle: Magnetic reed
Switching output: Contact-based, bipolar
Switching element function: N/O contact
Max. output current: 500 mA

Max. output current in mounting kits: 80 mA
Min. switching capacity AC: 10 VA
Max. switching capacity DC: 10 W
Max. switching capacity DC in mounting kits: 2.4 W
Max. switching capacity AC in mounting kits: 2.4 VA
Voltage drop: 1.17 V
Short-circuit protection: no
Overload protection: Not available
Operating voltage range AC: 5 V ...30 V
DC operating voltage range: 5 V ...30 V
Reverse polarity protection: no
Connection outlet orientation: Longitudinal
Connector cable test conditions: Test conditions on request Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
Cable length: 0.3 m
Cable characteristic: Standard + cable chain
Material of cable sheath: TPE-U(PUR)

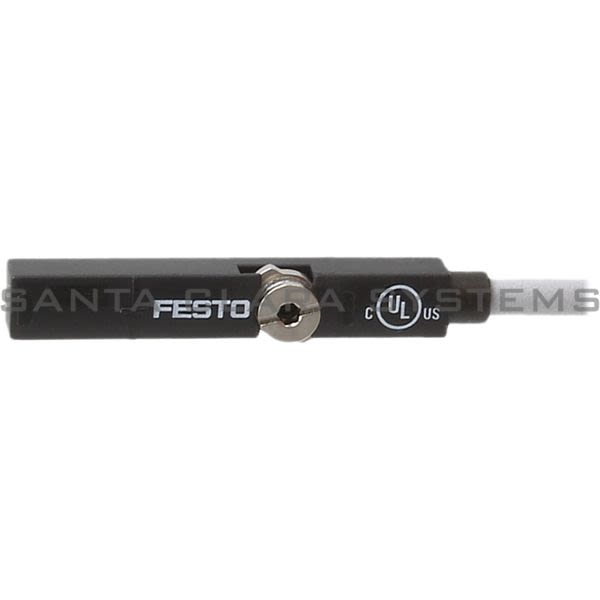

Type of mounting: Can be inserted in slot from above Screwed tightly
Product weight: 8.9 g
Housing material: TPE-U(PUR) High-alloy stainless steel PA Brass, nickel-plated
Switching status indication: LED yellow
Ambient temperature with flexible cable installation: -5 C ...70 C
Degree of protection: IP68 IP65
