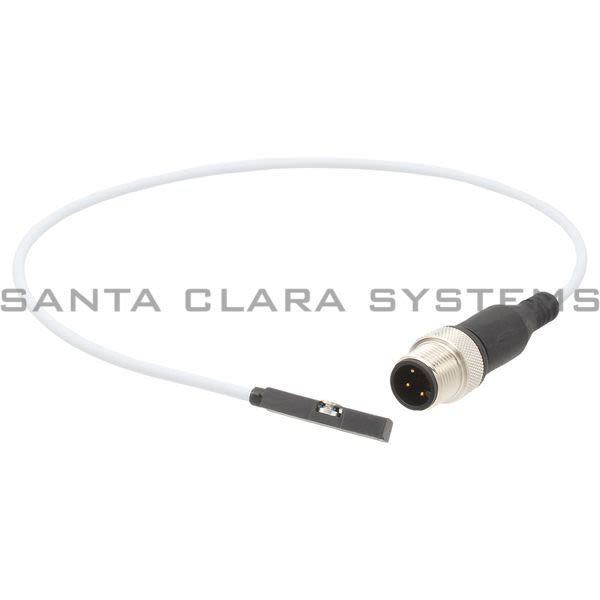

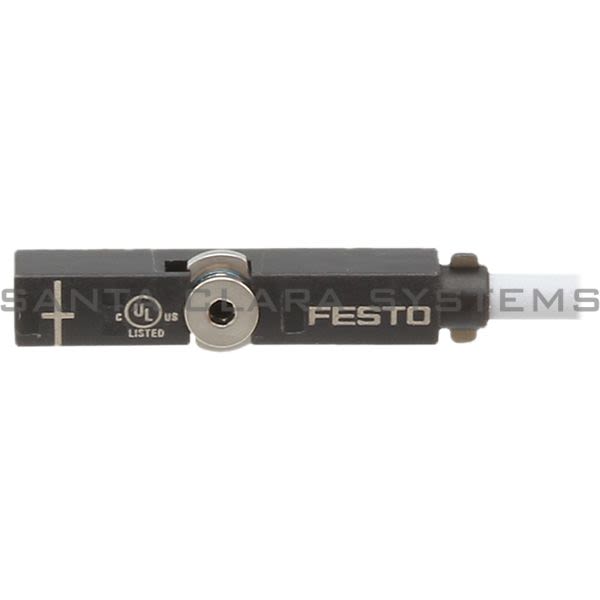

SMT-8M-A-PS-24V-E-0-3-M12

Festo - Proximity Sensor

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Proximity Sensor
Ambient temperature: -40 °C ... 85 °C

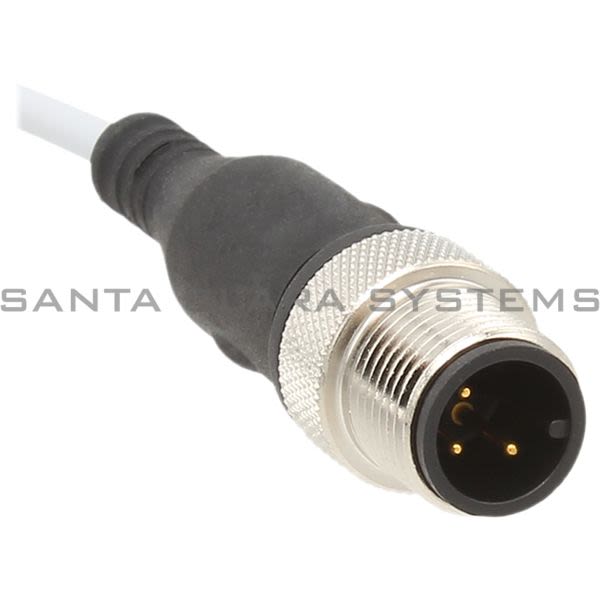

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
DC operating voltage range: 5 V - 30 V
Switching element function: N/O contact
Switching output: PNP
Design: For T-slot
Based on norm: EN 60947-5-2
Symbol: 00991153
CE marking (see declaration of conformity): As per EU EMC directive - As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
Certificate issuing authority: UL E232949
Special features: Oil-resistant
Note on materials: RoHS-compliant - Halogen-free
Application note: Https://www.festo.com/Drive-Sensor-Overview
Measured variable: Position
Measuring principle: Magneto-resistive
Repetition accuracy: 0.2 mm
On time: ≤1.3 ms
Switch-off time: ≤7.3 ms
Max. switching frequency: 130 Hz
Max. output current: 100 mA
Max. output current in mounting kits: 100 mA
Max. switching capacity DC: 2.8 W
Max. switching capacity DC in mounting kits: 2.8 W
Voltage drop: <1.5 V
Short-circuit protection: Yes
Overload protection: Yes

Rated operating voltage DC: 24 V
Reverse polarity protection: For all electrical connections
Electrical connection 1, connection type: Cable with plug
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Rotatable
Electrical connection for input 1, connection pattern: 00995573
Connection outlet orientation: Longitudinal
Material of pin contacts: Copper alloy, gold-plated
Material of plug housing: TPE-U(PU)
Material of screw-type lock: Brass, nickel-plated
Connector cable test conditions: Test conditions on request - Torsion resistance: > 300,000 cycles, ±270°/0.1 m - Flexural strength: > 50000 cycles, bending radius 5 mm - Energy chain: > 5 million cycles, bending radius 28 mm
Cable length: 0.3 m
Cable characteristic: Suitable for energy chains/robot applications
Color cable sheath: Gray
Material of cable sheath: TPE-U(PUR)
Insulating sheath material: PP
Type of mounting: Screwed tightly - Can be inserted in slot from above
Max. tightening torque: 0.6 Nm
Mounting position: Any
Housing colour: Black
Housing material: High-alloy stainless steel
Switching status indication: LED yellow
Function reserve indication: LED orange
Ambient temperature with flexible cable installation: -20 °C ... 85 °C
Degree of protection: IP65 - IP68 - IP69K
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible according to ISO 14644-1
