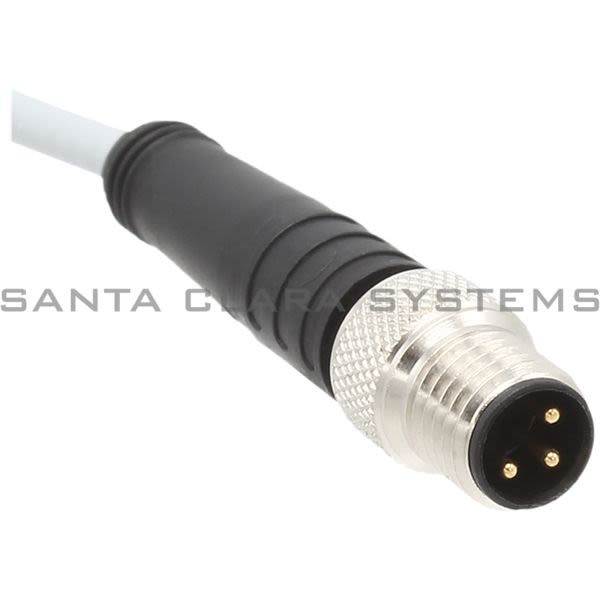

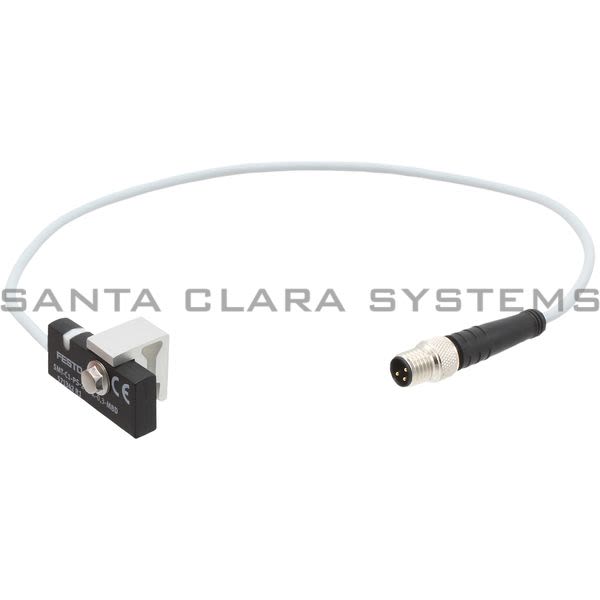

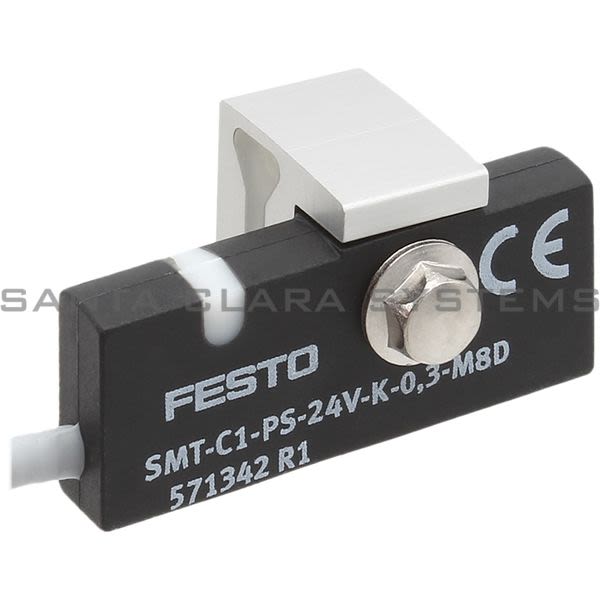

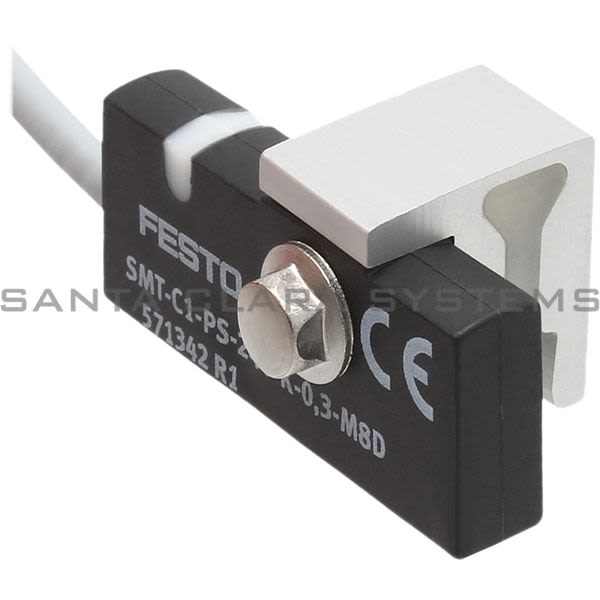

• Festo SMT-C1-PS-24V-K-0,3-M8D Proximity Sensor Product Image
  • Festo SMT-C1-PS-24V-K-0,3-M8D Proximity Sensor Product Image
  • Festo SMT-C1-PS-24V-K-0,3-M8D Proximity Sensor Product Image
  • Festo SMT-C1-PS-24V-K-0,3-M8D Proximity Sensor Product Image
  • Festo SMT-C1-PS-24V-K-0,3-M8D Barcode

SMT-C1-PS-24V-K-0-3-M8D

Get a Quote

Current response time:

18 Minutes 14 Seconds
  • Description: Proximity Sensor
  • Ambient temperature: -20 C ...70 C
  • Electrical connection: M8x1 3-pin Rotatable thread Cable with plug
  • Type code: SMT
  • Design: Block design
  • Based on norm: EN 60947-5-2
  • Symbol: 991153
  • Certification: RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive
  • Measured variable: Position
  • Measuring principle: Magneto-inductive
  • Switching output: PNP
  • Switching element function: N/O contact
  • On time: 0.5 ms
  • Switch-off time: 0.5 ms
  • Max. output current: 200 mA
  • Max. switching capacity DC: 6 W
  • Voltage drop: < 1.8 V
  • Short-circuit protection: Pulsed
  • Overload protection: Available
  • DC operating voltage range: 10 V ...30 V
  • Residual ripple: 10%
  • Reverse polarity protection: for all electrical connections
  • Connection outlet orientation: Longitudinal
  • Cable length: 0.3 m
  • Material of cable sheath: TPE-O
  • Wire ends: Cable end sleeve
  • Type of mounting: Clamped
  • Tightening torque: 1.2 Nm
  • Mounting position: Any
  • Product weight: 24.4 g
  • Housing material: TPE-U(PU) Wrought aluminum alloy High-alloy stainless steel Brass, nickel-plated TPE-O
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: -20 C ...70 C
  • Degree of protection: IP65 as per IEC 60529 IP68
  • For use in the food industry: See supplementary material information
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SMT-C1-PS-24V-K-0-3-M8D . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
