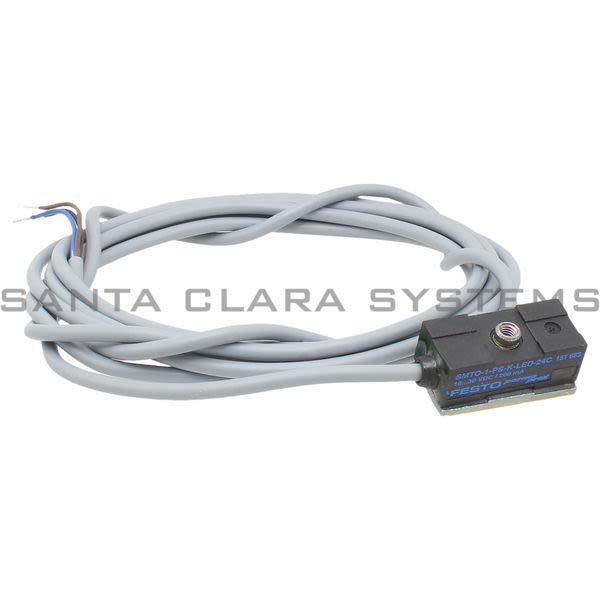

• Festo SMTO-1-PS-K-LED-24C Proximity Sensor Product Image

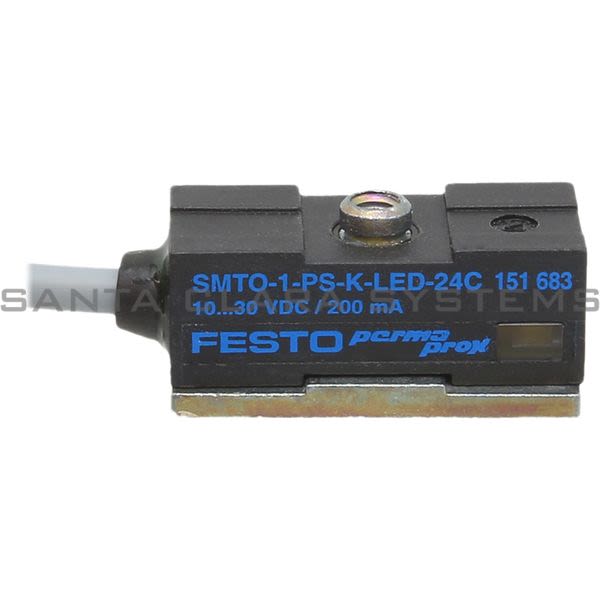

  • Festo SMTO-1-PS-K-LED-24C Proximity Sensor Product Image

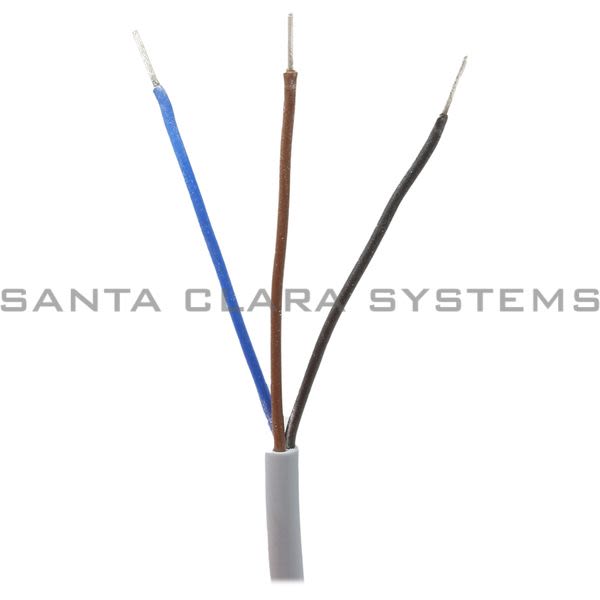

  • Festo SMTO-1-PS-K-LED-24C Proximity Sensor Product Image

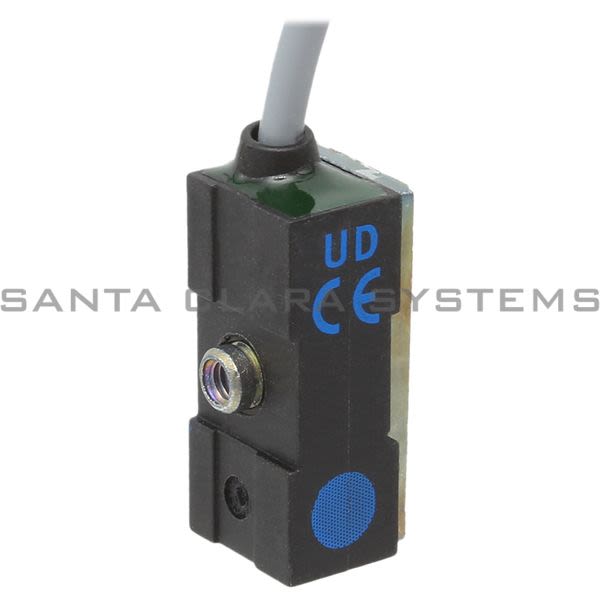

  • Festo SMTO-1-PS-K-LED-24C Proximity Sensor Product Image
  • Festo SMTO-1-PS-K-LED-24C Barcode

SMTO-1-PS-K-LED-24C

Product Summary:

  • Ambient temperature: -25 C ...70 C
  • Electrical connection: 3-wire Cable
  • Hysteresis: 0.08 bar ... 0.2 bar
  • Type code: SMTO
  • Design: Block design
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Proximity Sensor
  • Ambient temperature: -25 C ...70 C
  • Electrical connection: 3-wire Cable
  • Hysteresis: 0.08 bar ... 0.2 bar
  • Type code: SMTO
  • Design: Block design
  • Symbol: 991152
  • Certification: RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive
  • Measuring principle: Magneto-inductive
  • Switching output: PNP
  • Switching element function: N/O contact
  • Reproducibility of switching value: +/- 0.1 mm
  • On time: 1 ms
  • Switch-off time: 1 ms
  • Max. output current: 200 mA
  • Max. switching capacity DC: 6 W
  • Voltage drop: 3 V
  • Residual current: 0.01 mA
  • Short-circuit protection: yes
  • Overload protection: Available
  • DC operating voltage range: 10 V ...30 V
  • Reverse polarity protection: for all electrical connections
  • Connection outlet orientation: Longitudinal
  • Cable length: 2.5 m
  • Cable characteristic: Standard
  • Material of cable sheath: PVC
  • Type of mounting: With accessories
  • Max. tightening torque: 0.3 Nm
  • Product weight: 85 g
  • Housing material: Die-cast zinc PET
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: -5 C ...70 C
  • Degree of protection: IP67
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SMTO-1-PS-K-LED-24C . Santa Clara Systems carries 391 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
