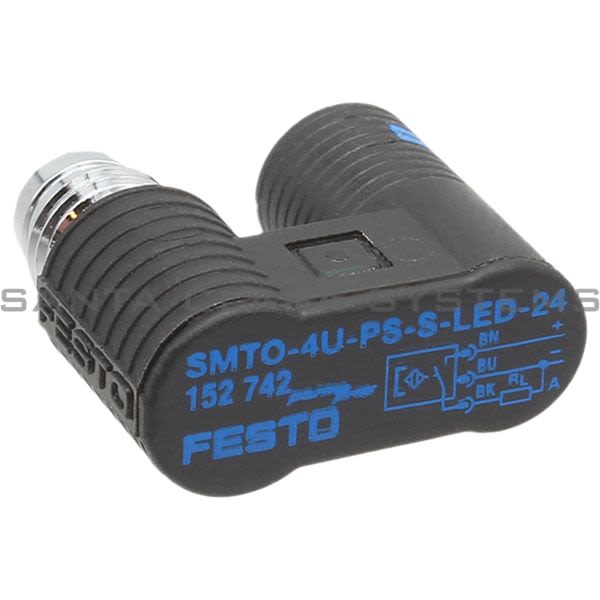

• Festo SMTO-4U-PS-S-LED-24 Proximity Sensor Product Image

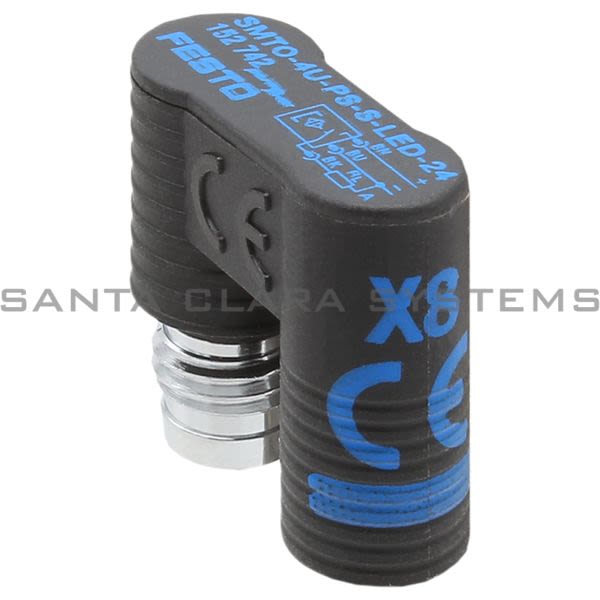

  • Festo SMTO-4U-PS-S-LED-24 Proximity Sensor Product Image

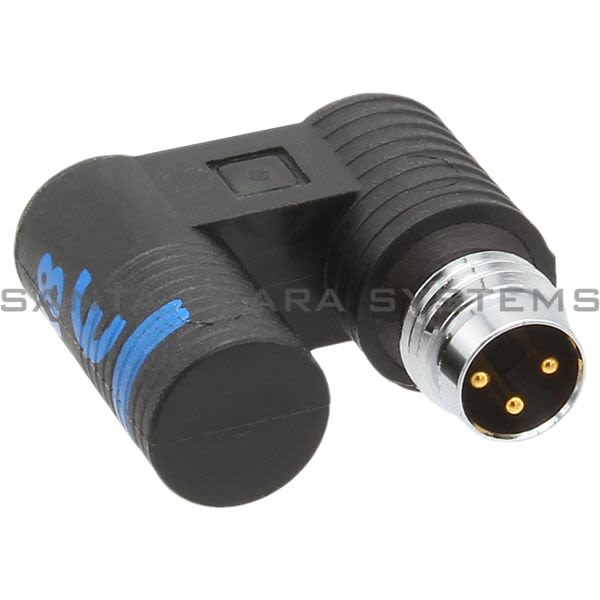

  • Festo SMTO-4U-PS-S-LED-24 Proximity Sensor Product Image
  • Festo SMTO-4U-PS-S-LED-24 Barcode

SMTO-4U-PS-S-LED-24

Product Summary:

  • Ambient temperature: -25 C ...70 C
  • Electrical connection: 3-pin Plug M8x1
  • Type code: SMTO
  • Design: Round
  • Symbol: 991153
Get a Quote

Current response time:

14 Minutes 47 Seconds
  • Description: Proximity Sensor
  • Ambient temperature: -25 C ...70 C
  • Electrical connection: 3-pin Plug M8x1
  • Type code: SMTO
  • Design: Round
  • Symbol: 991153
  • Certification: RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive
  • Measuring principle: Magneto-inductive
  • Switching output: PNP
  • Switching element function: N/O contact
  • Reproducibility of switching value: +/- 0.1 mm
  • On time: 0.5 ms
  • Switch-off time: 0.5 ms
  • Max. output current: 200 mA
  • Max. switching capacity DC: 6 W
  • Voltage drop: 2 V
  • Residual current: 0.01 mA
  • Short-circuit protection: Pulsed
  • Overload protection: Available
  • DC operating voltage range: 10 V ...30 V
  • Reverse polarity protection: for all electrical connections
  • Connection outlet orientation: Longitudinal
  • Max. tightening torque plug: 0.3 Nm
  • Type of mounting: With accessories
  • Max. tightening torque: 0.8 Nm
  • Product weight: 6 g
  • Housing material: PUR PET PA
  • Switching status indication: LED yellow
  • Degree of protection: IP67
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SMTO-4U-PS-S-LED-24 . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
