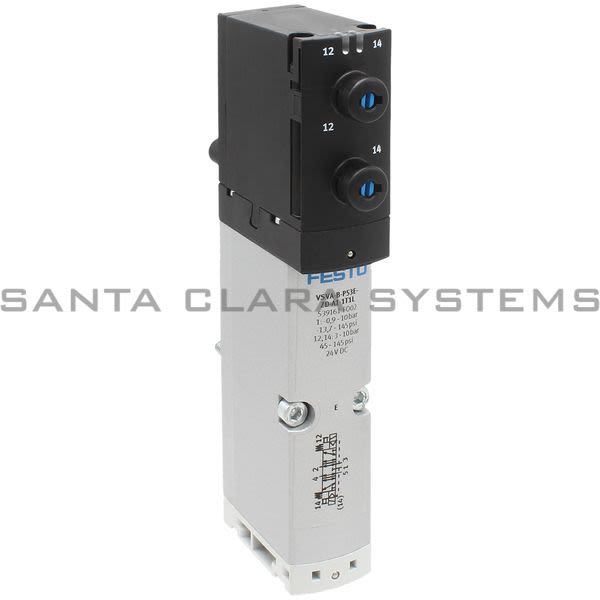

• Festo VSVA-B-P53E-ZD-A1-1T1L Air Solenoid Valve Product Image

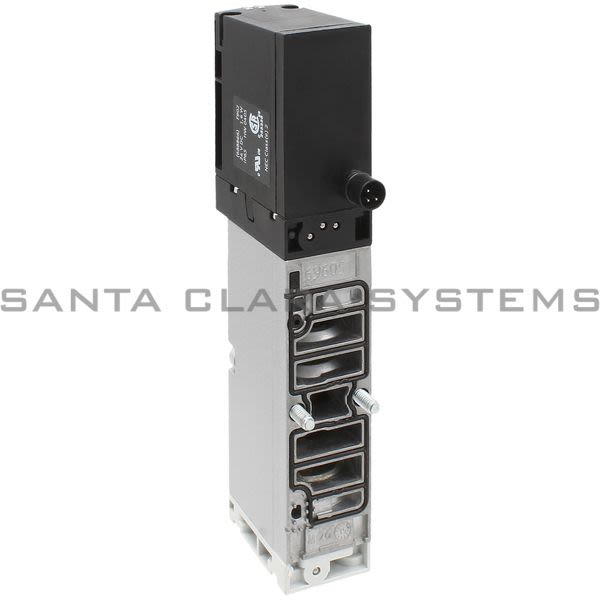

  • Festo VSVA-B-P53E-ZD-A1-1T1L Air Solenoid Valve Product Image

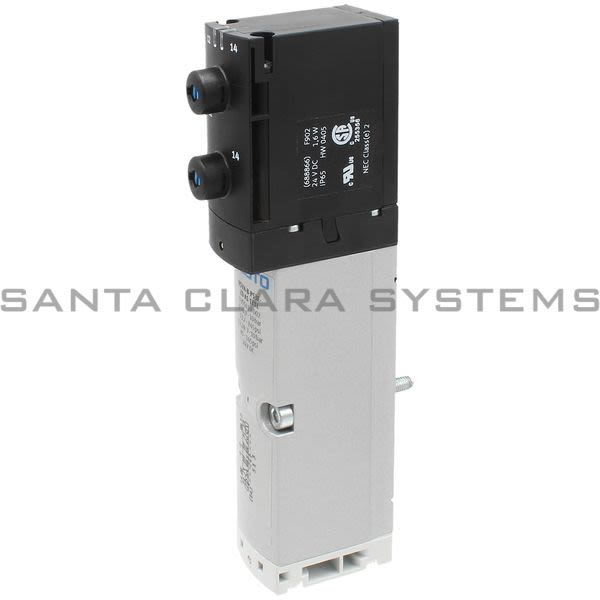

  • Festo VSVA-B-P53E-ZD-A1-1T1L Air Solenoid Valve Product Image

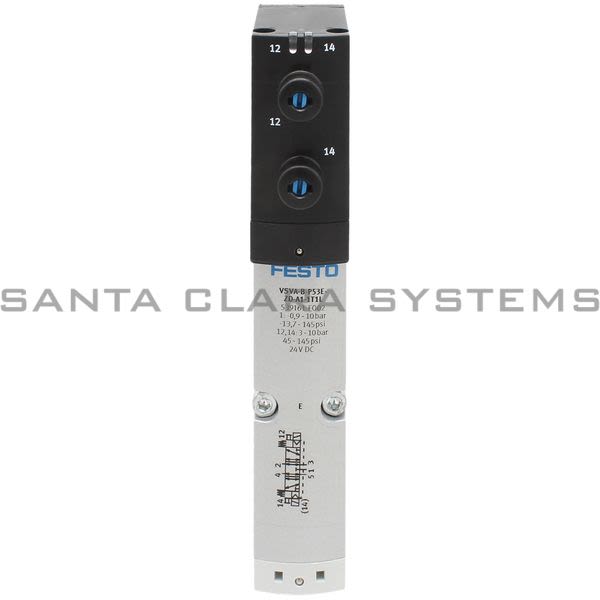

  • Festo VSVA-B-P53E-ZD-A1-1T1L Air Solenoid Valve Product Image
  • Festo VSVA-B-P53E-ZD-A1-1T1L Barcode

VSVA-B-P53E-ZD-A1-1T1L

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Air Solenoid Valve
  • Width: 26 mm
  • Ambient temperature: -5 C ... 50 C
  • Electrical connection: Plug-in as per ISO 15407-2
  • Valve function: 5/3, exhausted
  • Actuation type: Electrical
  • Standard nominal flow rate: 1000 l/min
  • Pneumatic working port: Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4
  • Operating voltage: 24V DC
  • Operating pressure MPa: -0.09 MPa ... 1 MPa
  • Operating pressure: -0.9 bar ... 10 bar
  • Structural design: Piston gate valve
  • Certification: C UL us - Recognized (OL)
  • Degree of protection: IP65 NEMA 4
  • Exhaust air function: With flow control option Via throttle plate Via individual sub-base
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting - Non-detenting - Covered
  • Type of control: Pilot-controlled
  • Pilot air supply port: External Internal
  • Flow direction: Any
  • Symbol: 00992939
  • Lap: Overlap
  • Signal status display: LED
  • Pilot pressure MPa: 0.3 MPa ... 1 MPa
  • Pilot pressure: 3 bar ... 10 bar
  • Flow rate of pneumatic valve: 1400 l/min
  • Flow rate of pneumatic valve on individual sub-base: 1200 l/min
  • Optimized flow rate of pneumatic valve, pneumatically concatenated flow: 1350 l/min
  • Optimized flow rate of pneumatic valve pneumatically concatenated flow: 1000 l/min
  • Switching time off: 65 ms
  • On switching time: 22 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 1200 s
  • Max. negative test pulse on 1 signal: 1100 s
  • Max. current consumption: 72 mA
  • Nominal operating voltage DC: 24 V
  • Coil characteristics: 24 V DC: 1.6 W
  • Surge resistance: 2.5 kV
  • Contamination level: 3
  • Permissible voltage fluctuations: +/- 10 %
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class (CRC): 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Relative air humidity: 0 - 90 %
  • Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight: 320 g
  • Type of mounting: On sub-base
  • Pilot air port 12/14: Sub-base, size 26 mm as per ISO 15407-2
  • Pilot exhaust air port 82/84: Optionally:Ducted Not ducted as per standard
  • Pneumatic connection 1: Sub-base, size 26 mm as per ISO 15407-2
  • Seals material: FPM HNBR NBR
  • Housing material: Die-cast aluminum PA
  • Material of screws: Steel, galvanized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VSVA-B-P53E-ZD-A1-1T1L . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
