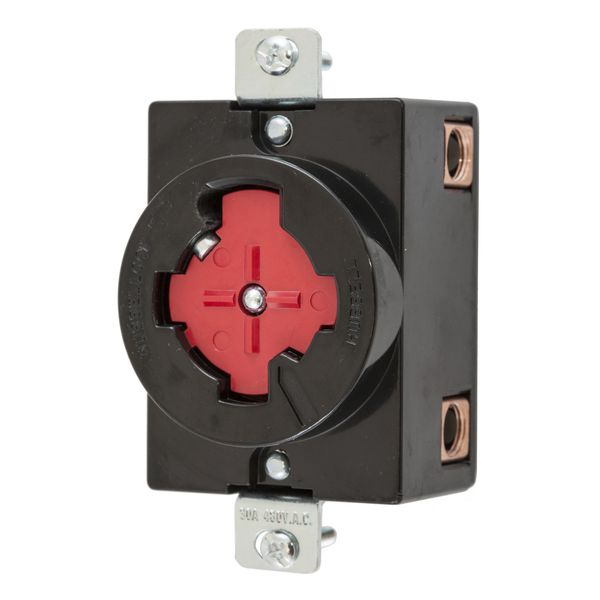

HBL20443

Hubbell - Control

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Control
Specifications Description: 3P4W, 30A 480V AC, Black Phenolic, Red Center Insert
UPC Number: 7.83585E+11
Weight in LBs: 0.55
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10AWG
Moisture Resistance: IP20
Terminal Screw Material: Steel pressure screw- zinc plate
Ground Screw Material: Steel pressure screw- zinc plate
Device Color: Red
Catalog No: Permanently ink marked on product

Product Item: Single Receptacle
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Multi-Rating: 30A 480V AC
Body Contact Carrier Material: Black Polyester
Contact Spring Material: .031" Brass
Mounting Screw Material: Steel, zinc plated
Cover (Top) Material: Black Thermoset
Base Material: Black Thermoset
Ground Contact Material: .031" Brass
Bridge (Mounting Strap) Material: .062" Steel, Zinc Plate
Listings: UL/CSA
