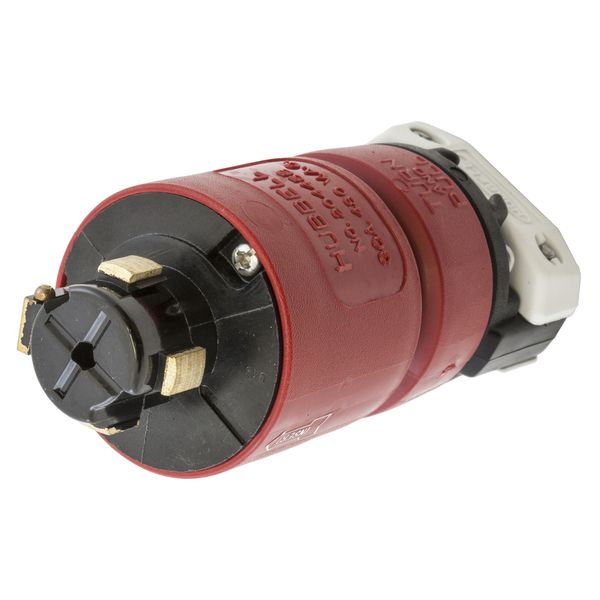

HBL20445B

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control
Specifications Description: 3P4W, 30A 480V AC, Red Nylon Housing, Thermoset Interior
UPC Number: 7.83585E+11
Weight in LBs: 0.9
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10AWG
Moisture Resistance: IP20
Terminal Screw Material: Copper lug terminals with steel set screws
Ground Screw Material: Copper lug terminals with steel set screws
Device Color: Red
Catalog No: Permanently ink marked on product

Product Item: Plug
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Housing Material: Black nylon
Multi-Rating: 30A 480V AC
Cord Dia.: .630"-1.20" (16.0-30.5)
Blade Holder Material: Black Thermoset
Cord Clamp Material: Glass Reinforced PET
Blade Material: Brass
Cord Clamp Screw Material: Stainless steel, Multi-drive
Body Holding Screw Material: Stainless steel, Multi-drive
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL
