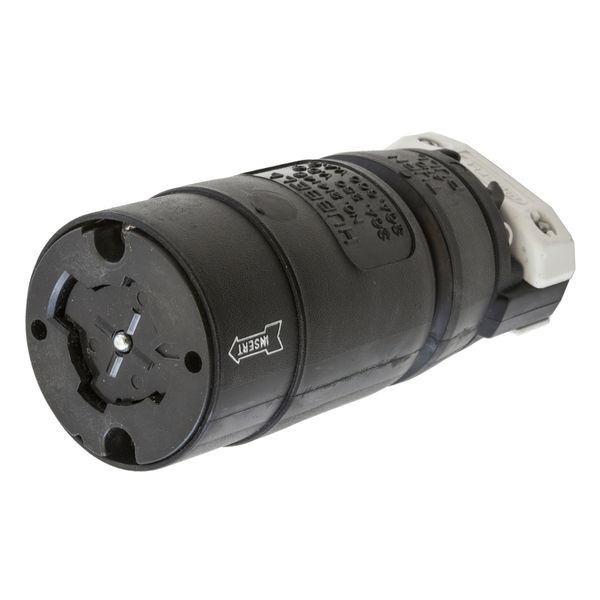

• Hubbell HBL21414B Connector Body | Hubbellock Product Image
  • Hubbell HBL21414B Barcode

HBL21414B

Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Connector Body | Hubbellock
  • Specifications Description: 3P4W, 30A 600V AC Max, Black Phenolic
  • UPC Number: 7.83585E+11
  • Weight in LBs: 1.05
  • Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Product Type: Hubbellock Devices
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 20A #12AWG; 30A #10AWG
  • Moisture Resistance: IP30
  • Terminal Screw Material: Steel pressure screw- zinc plate
  • Ground Screw Material: Steel pressure screw- zinc plate
  • Device Color: Black/White
  • Catalog No: Permanently ink marked on product
  • Product Item: Connector Body
  • Wiring Scheme: 3-Pole, 4-Wire Grounding
  • Dielectric Voltage Withstand: 2,000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Standard
  • Housing Material: Black nylon
  • Multi-Rating: 30A 600V AC, 20A 250V DC
  • Cord Dia.: .630"-1.20" (16.0-30.5)
  • Cord Clamp Material: Rynite (white)
  • Cord Clamp Screw Material: Steel-zinc-plated
  • Body Holding Screw Material: Steel-zinc-plated
  • Body Contact Carrier Material: Black Rynite
  • Contact Spring Material: .032" (.8) Bronze
  • Ground Contact Material: .032" Bronze
  • Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
  • Listings: UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL21414B . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
