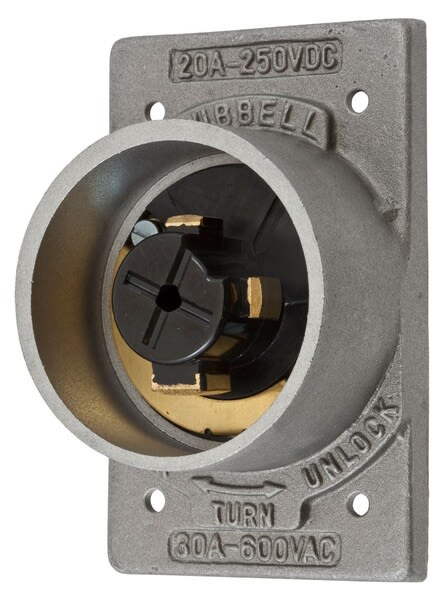

• Hubbell HBL20418 Hubbellock Flanged Inlet Product Image
  • Hubbell HBL20418 Barcode

HBL20418

Get a Quote

Current response time:

12 Minutes 43 Seconds
  • Description: Hubbellock Flanged Inlet
  • Specifications Description: 3P4W, 30A 600V AC Max, Black Phenolic
  • UPC Number: 7.83585E+11
  • Weight in LBs: 0.85
  • Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
  • Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
  • Product Type: Hubbellock Devices
  • Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
  • Terminal Accommodation: 20A #12AWG; 30A #10AWG
  • Moisture Resistance: IP30
  • Terminal Screw Material: Steel pressure screw- zinc plate
  • Ground Screw Material: Steel pressure screw- zinc plate
  • Device Color: Metallic
  • Catalog No: Permanently ink marked on product
  • Product Item: Flanged Inlet
  • Wiring Scheme: 3-Pole, 4-Wire Grounding
  • Dielectric Voltage Withstand: 2,000V minimum
  • Ratings: Molded In or Stamped On
  • Item Style: Standard
  • Multi-Rating: 30A 600V AC, 20A 250V DC
  • Blade Material: Brass
  • Flanged Casing Material: Cast Aluminum
  • Mounting Screw Material: Nickel-plated Brass Round head screws
  • Cover (Top) Material: Cast Aluminum
  • Listings: UL/CSA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL20418 . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
