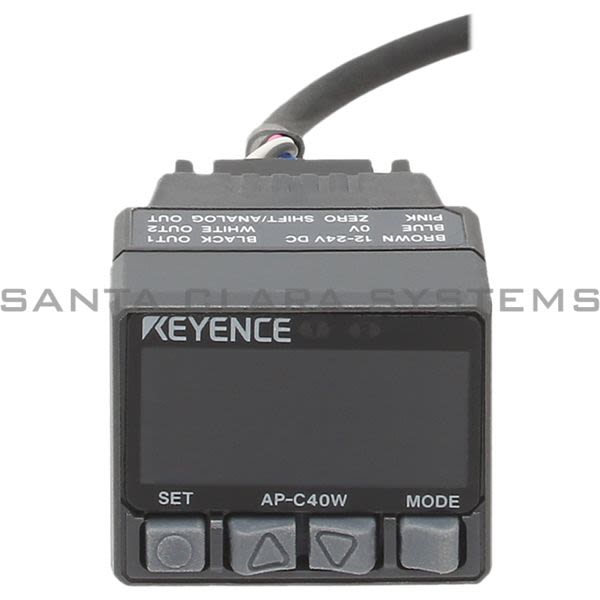

AP-C40W

Keyence - Pressure Sensor

Current response time:

8 Minutes 48 Seconds

Description: Pressure Sensor
Weight: Approx. 74 g (with 2-m 6.6' cable)
Footnotes: *1 The focus range applies while in focus mode only. *2 A response time of 100 or 500 ms applies if the AP-47 is used. *3 The maximum current is 20 mA if the AP-V42W (P) is installed as an expansion unit. *4 Only the AP-V41AW (P) (Master) and AP-C40W (P) apply.
Output: NPN output
Material: Front housing: Polysulfone, Rear housing: PBT, Front seat: Polycarbonate

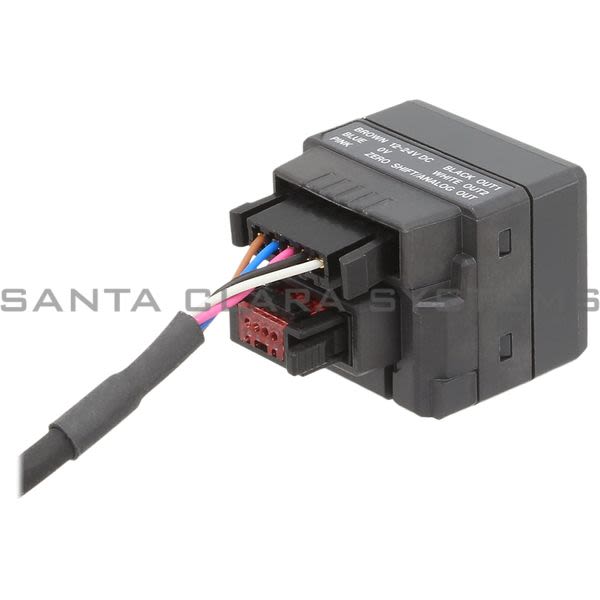

Accessories: Power supply code (2-m 6.6' cable with connector), head connector, and unit seal
Applicable sensor head: AP-41M, AP-41, AP-43, AP-44
Display power: 3 1/2-digit, 2-color, 7-segment LED (Character height: 11 mm 0.43") Display cycle: 10 times/s
Set and display range: -15 to +110% of F.S. *1
Operation indicator: Red LED x 2 (corresponding to control output 1 and 2)
Resolution - Standard mode - AP-41M: 0.1 kPa, 1 mmHg, 0.1 inchHg, 0.001 bar
Resolution - Standard mode - AP-41: 0.1 kPa, 1 mmHg, 0.1 inchHg, 0.001 bar
Resolution - Standard mode - AP-43: 0.001 MPa, 0.01 kgf/cm2, 0.01 bar
Resolution - Standard mode - AP-44: 0.1 kPa, 1 mmHg, 0.1 inchHg, 0.02 psi, 0.001 bar
Resolution - Standard mode - AP-48: 0.1 kPa, 0.001 kgf/cm2, 0.02 psi, 0.001 bar
Resolution - Focus mode - AP-41M: 0.01 kPa, 0.1 mmHg, 0.01 inchHg, 0.002 psi, 0.1 mbar
Resolution - Focus mode - AP-41: 0.01 kPa, 0.1 mmHg, 0.01 inchHg, 0.002 psi, 0.1 mbar

Resolution - Focus mode - AP-43: 0.1 kPa, 0.001 kgf/cm2, 0.02 psi, 0.001 bar
Resolution - Focus mode - AP-44: 0.02 kPa, 0.2 mmHg, 0.2 inchHg, 0.004 psi, 0.2 mbar
Resolution - Focus mode - AP-48: 0.02 kPa, 0.2 kgf/cm2, 0.004 psi, 0.2 mbar
Hysteresis: Variable (Standard: 0.5% of FS; high-resolution/focus mode: 0.1% of F.S.)
Response time (chattering prevention function): 1 (in high-speed mode only), 2.5, 5, 100, or 500 ms (selectable) *2
I/O - Control output: NPN open collector 100 mA max. (at 40 V or below) *3 with max. residual voltage of 1 V, 2 outputs (NO or NC selectable)
Temperature characteristic: ±1% of F.S. or less
I/O - Analog output (selectable): 1 to 5 V with load impedance of 1 k? max. (or zero-shift input selectable)*4
I/O - Zero-shift input (selectable): Input time: 2 ms or more (or analog output selectable)
Rating - Power voltage: 12 to 24 VDC ±10% with ripple (p-p) of 10% max.
Rating - Power consumption - At 12 V - Normal: 780 mW (65mA) max./960 mW (80mA)max.
Rating - Power consumption - At 12 V - Eco mode: 540 mW (45mA) or less
Rating - Power consumption - At 24 V - Normal: 1080 mW (45mA) or less
Rating - Power consumption - At 24 V - Eco mode: 840 mW (35mA) or less
Environmental resistance - Ambient temperature: 0 to 50°C 32 to 122°F, no freezing
Environmental resistance - Ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration resistance: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
