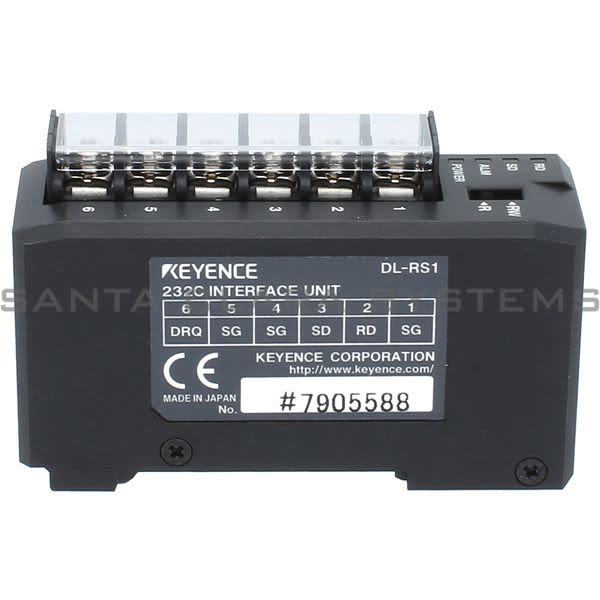

• Keyence DL-RS1 Communication Module Product Image

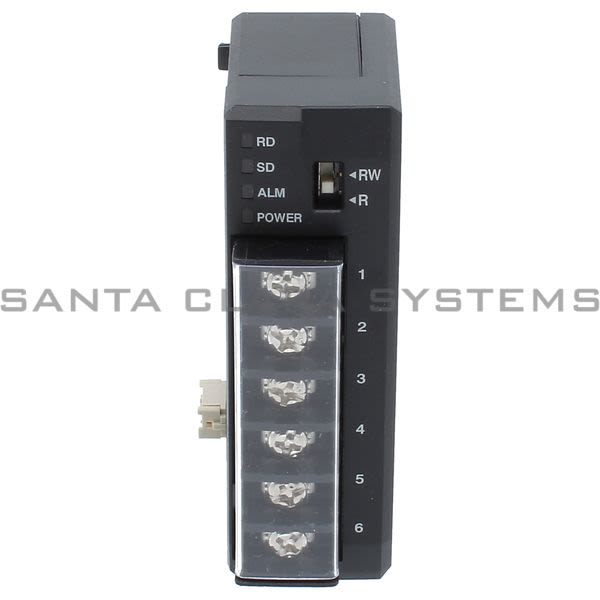

  • Keyence DL-RS1 Communication Module Product Image

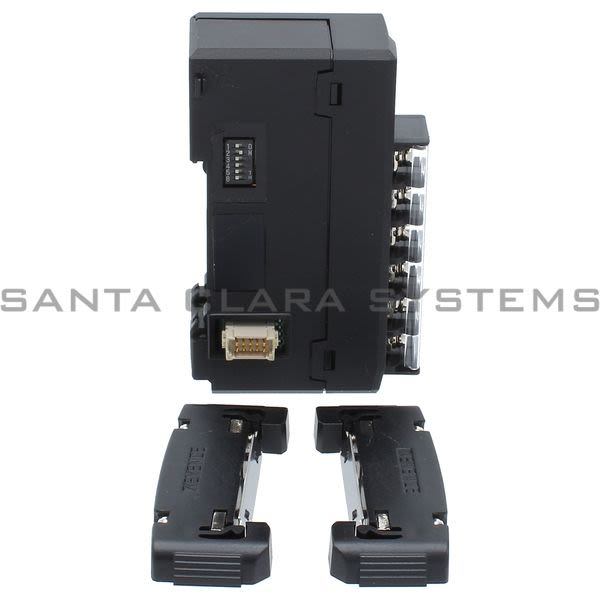

  • Keyence DL-RS1 Communication Module Product Image
  • Keyence DL-RS1 Communication Module Product Image
  • Keyence DL-RS1 Barcode

DL-RS1

Product Summary:

  • Type: RS-232C
  • Number of connectable sensor amplifiers: Up to 10 units (including the main unit)
  • Communication unit (DL-RS1 communication specifications) - Communication method: Full duplex
  • Synchronization between the transmitter and receiver: Asynchronous
  • Communication unit (DL-RS1 communication specifications) - Transmission code: ASCII
Get a Quote

Current response time:

15 Minutes 15 Seconds
  • Description: Communication Module
  • Indicator lamps: Communication status (green 2), alarm (red), power (green)
  • Rating - Power source voltage: 24 VDC, ripple (P-P): 10% or less (supplied by the connected sensor amplifier)
  • Rating - Current consumption.: 18mA or less
  • Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours in each of X, Y, and Z directions
  • Material: Main unit case: polycarbonate
  • Accessories: Instruction manual, end unit 2, switch protection sticker, extension connector cover
  • Weight: Approx 53 g
  • Type: RS-232C
  • Number of connectable sensor amplifiers: Up to 10 units (including the main unit)
  • Communication unit (DL-RS1 communication specifications) - Communication method: Full duplex
  • Synchronization between the transmitter and receiver: Asynchronous
  • Communication unit (DL-RS1 communication specifications) - Transmission code: ASCII
  • Baud rate: 2,400, 4,800, 9,600, 19,200, 38,400 (selectable; factory setting: 9,600 bps)
  • Data bit length: 8 bits, 7 bits (selectable; factory setting: 8 bits)
  • Parity check: None, even, odd (selectable; factory setting: none)
  • Stop bit length: 1bit
  • Data delimiter: Receiving: automatic recognition of CR or CR+LF, transmitting: fixed to CR+LF
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DL-RS1 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
