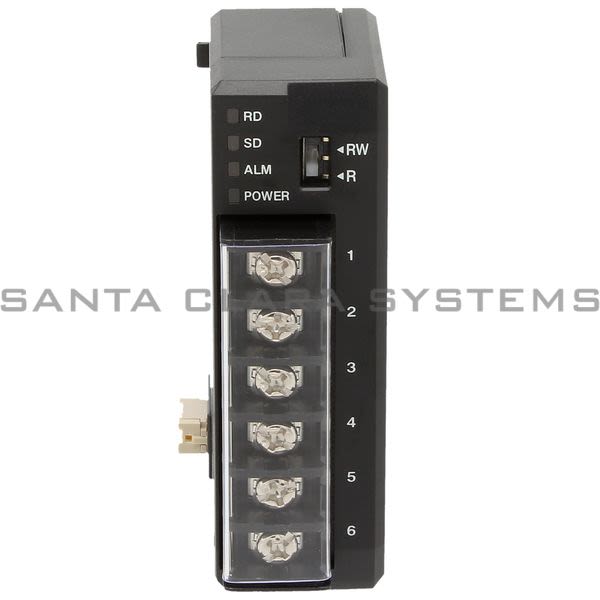

DL-RS1A

Keyence - Interface Unit

Current response time:

11 Minutes 43 Seconds

Description: Interface Unit
Weight: Approx 53 g
Footnotes: *1 For connecting with sensor, please refer to the user's Manual
Synchronization between the transmitter and receiver: Asynchronous
Transmission code: ASCII
Baud rate: 2400/4800/9600/19200/38400 bps selectable (Factory-setting: 9600 bps)
Data bit length: 8 bits/7 bits selectable (Factory-setting: 8 bits)
Parity check: None/Even/Odd selectable (Factory-setting: None)
Stop bit length: 1 bit
Data delimiter: Data reception: automatically recognizes CR or CR+LF Data transmission: Fixed to CR+LF

Indicator: Communication indicator lamp (green 2), Alarm indicator lamp (red), Power indicator lamp (green)
Sensor connection specifications - Number of connectable sensor units: Up to 8 units (including main unit)
Power voltage: 20 to 30 VDC, including ripple, Ripple (P-P): 10% max. Class 2 (Supplied via connected sensor amplifier)
Power consumption: 25 mA max.
Environmental resistance - Operating surrounding air temperature: -10 to +55C 14 to 131F
Environmental resistance - Operating surrounding air humidity: 35 to 85%RH (No condensation)
Environmental resistance - Vibration resistance: 10 to 55 Hz Double amplitude 1.5 mm 0.06" XYZ each axis: 2 hours
Materials: Case/Polycarbonate
Communication method: Full duplex
