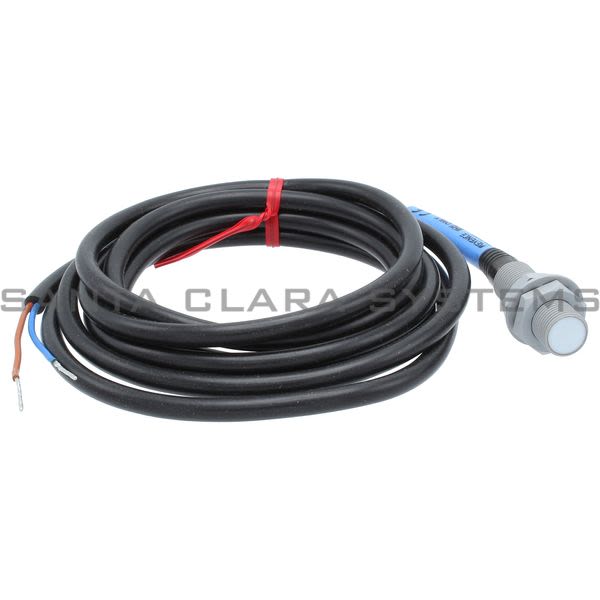

• Keyence EV-112F Proximity Switch Product Image
  • Keyence EV-112F Proximity Switch Product Image
  • Keyence EV-112F Proximity Switch Product Image
  • Keyence EV-112F Proximity Switch Product Image
  • Keyence EV-112F Barcode

EV-112F

Product Summary:

  • Type: Spatter-resistant/Shielded
  • Shape: M12
  • Detecting distance: 2.5 mm0.098"10%
  • Standard target (iron, t=1 mm 0.04"): 12 x 12 mm 0.47" x 0.47"
  • Hysteresis: 15% max. of detecting distance
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Proximity Switch
  • Rating - Power voltage: 12 to 24 VDC, Ripple (p-p) 20% max.
  • Rating - Current consumption (leakage current): Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6' cable)
  • Rating - Residual voltage: Residual voltage: 3.6 V max. (with 2-m 6.6' cable)
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 95%, No condensation
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in the X, Y, and Z directions, 2 hours respectively
  • Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively
  • Case material: Fluoro-chemical-coated brass
  • Accessories: Screw nut x 2, toothed washer x 1
  • Weight: approx 110 g
  • Type: Spatter-resistant/Shielded
  • Shape: M12
  • Detecting distance: 2.5 mm0.098"10%
  • Detectable object: Ferrous metals (see Characteristics for nonferrous metals)
  • Standard target (iron, t=1 mm 0.04"): 12 x 12 mm 0.47" x 0.47"
  • Hysteresis: 15% max. of detecting distance
  • Response frequency: 600 Hz
  • Operation mode: N.O.
  • Temperature characteristics: 10% max. of detecting distance at 23C 73.4F, within -25 to +70C -13 to +158F
  • Control output (switching capacity): 5 to 200 mA
  • Protection circuit: Reversed polarity, short-circuit, surge voltage

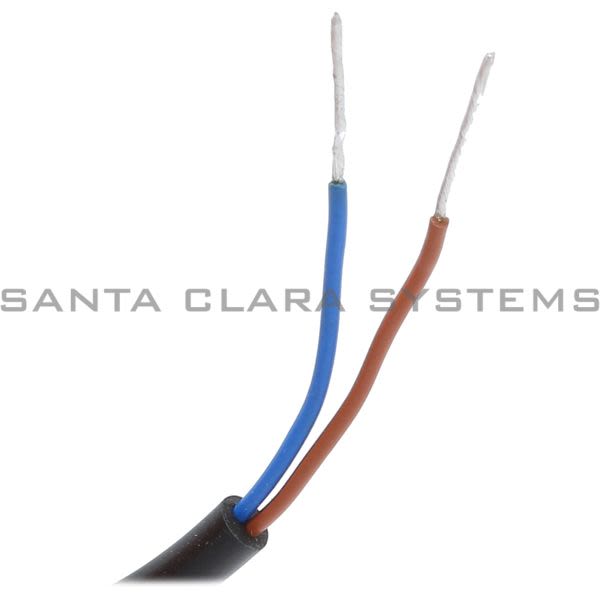

  • Cable length: 2 m 6.6'
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EV-112F . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
