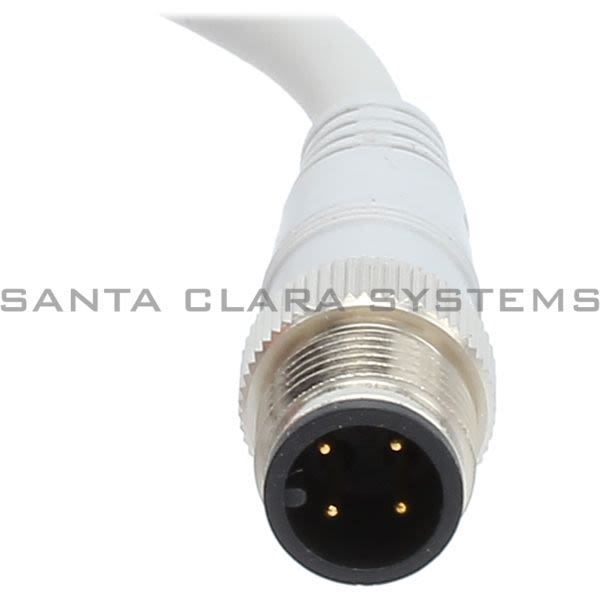

• Keyence EV-112U-SO-2065 Proximity Sensor Product Image

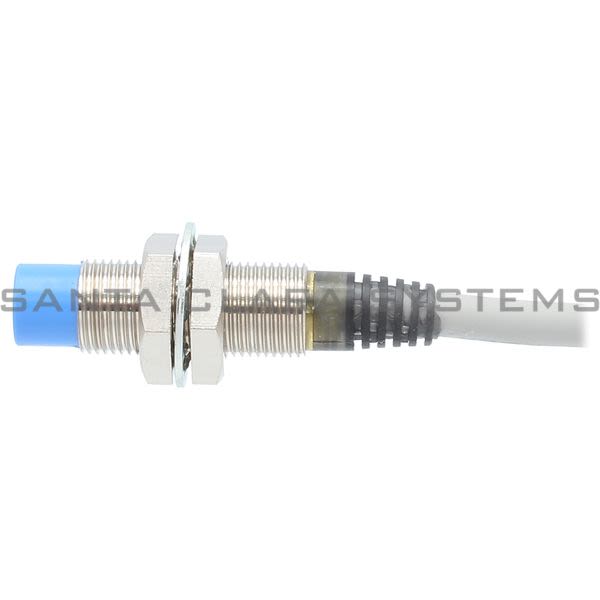

  • Keyence EV-112U-SO-2065 Proximity Sensor Product Image

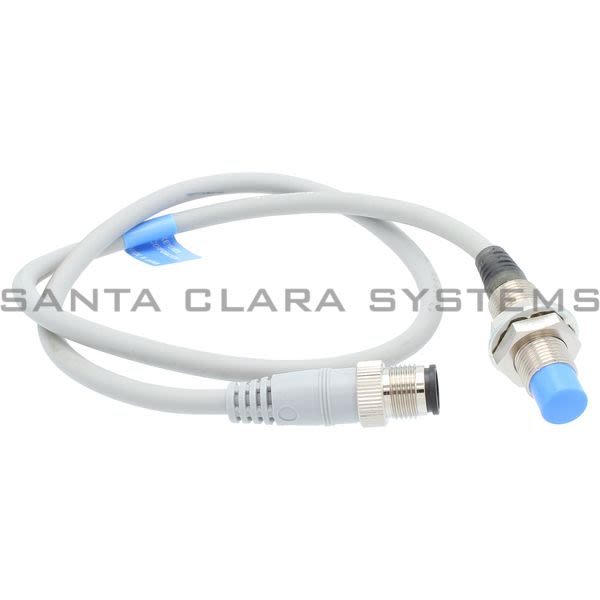

  • Keyence EV-112U-SO-2065 Proximity Sensor Product Image

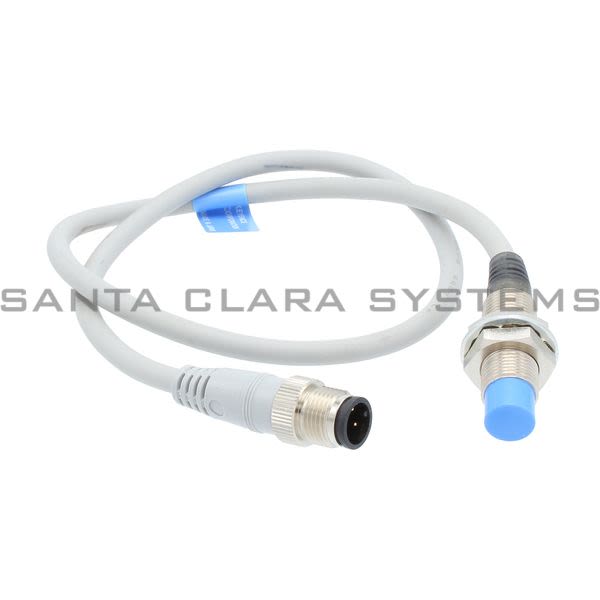

  • Keyence EV-112U-SO-2065 Proximity Sensor Product Image
  • Keyence EV-112U-SO-2065 Barcode

EV-112U-SO-2065

Product Summary:

  • Type: Non-shielded
  • Shape: M12
  • Detecting distance: 8 mm 0.31" 10%
  • Standard target (iron, t=1 mm 0.04"): 30 x 30 mm 1.18" x 1.18"
  • Response frequency: 600 Hz
Get a Quote
           or
  • Description: Proximity Sensor
  • Cable length: 500 mm19.685"
  • Rating - Power voltage: 12 to 24 VDC
  • Rating - Current consumption (leakage current): Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6' cable)
  • Rating - Residual voltage: Residual voltage: 3.6 V max. (with 2-m 6.6' cable)
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 95%RH (no condensation)
  • Case material: Nickel-plated brass
  • Weight: approx 55 g
  • Type: Non-shielded
  • Shape: M12
  • Detecting distance: 8 mm 0.31" 10%
  • Detectable object: Ferrous metals (see Characteristics for nonferrous metals)
  • Standard target (iron, t=1 mm 0.04"): 30 x 30 mm 1.18" x 1.18"
  • Hysteresis: 20% max. of detecting distance, within -10 to +70C 14 to 158F
  • Response frequency: 600 Hz
  • Operation mode: N.O.
  • Temperature characteristics: 10% max. of detecting distance, within -10 to +70C 14 to 158F
  • Control output (switching capacity): 5 to 200 mA
  • Protection circuit: Reversed polarity, short-circuit, surge voltage
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EV-112U-SO-2065 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
