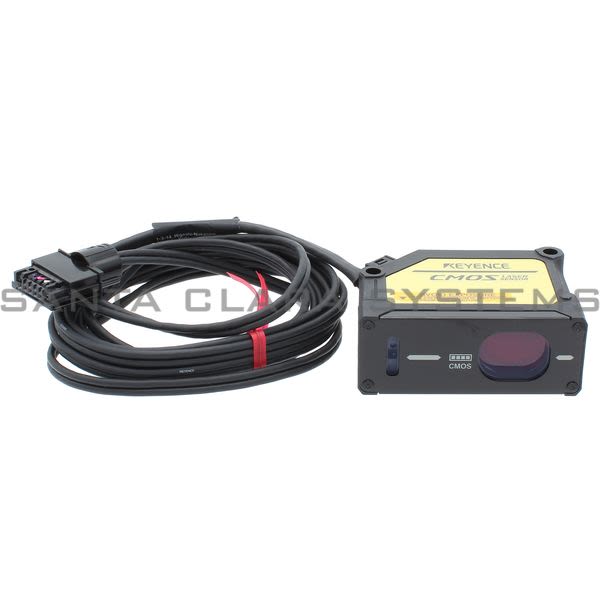

• Keyence GV-H450 Laser Sensor Product Image

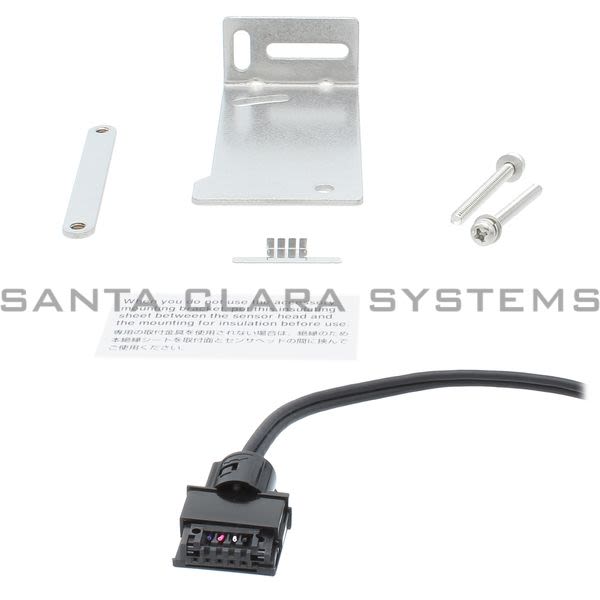

  • Keyence GV-H450 Laser Sensor Product Image

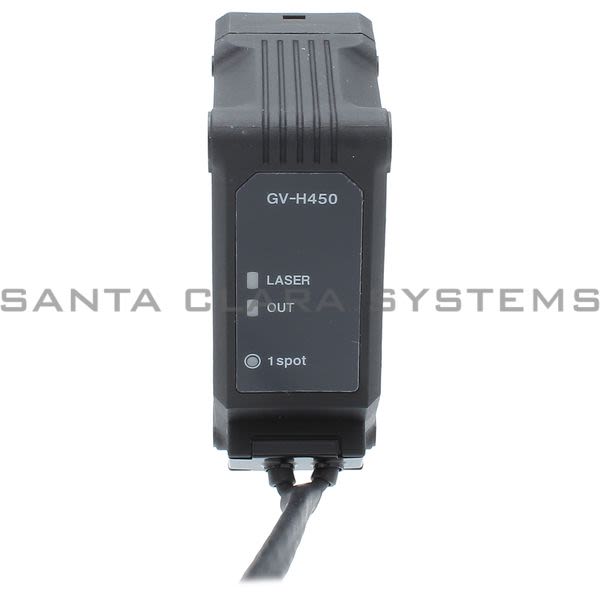

  • Keyence GV-H450 Laser Sensor Product Image
  • Keyence GV-H450 Laser Sensor Product Image
  • Keyence GV-H450 Barcode

GV-H450

Product Summary:

  • Type: Long-range
  • Laser class - FDA (CDRH) Part 1040.10: class 2 (560 ?W)
  • Laser class - IEC 60825-1: Class 2 (560 ?W)
  • Laser class - JIS C6802: class 2 (560 ?W)
  • Possible display range: 295 to -50
Get a Quote
           or
  • Description: Laser Sensor
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -10 to +50C 14 to 122F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Operating ambient luminance - Incandescent lamp: 5000?x
  • Environmental resistance - Operating ambient luminance - Sunlight: 10000?x
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude in the X, Y, and Z directions, 2 hours respectively
  • Material: Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC
  • Weight: Approx.190 g*2
  • Footnotes: *1 General guideline for amplifier display values relative to detection distance (when distance display mode is set to normal). *2 Including 2 m 6.6' connector cable (3 m 9.8' cable for GV-H1000)
  • Type: Long-range
  • Light source: Visible semiconductor laser, Wavelength: 655 nm
  • Laser class - FDA (CDRH) Part 1040.10: class 2 (560 ?W)
  • Laser class - IEC 60825-1: Class 2 (560 ?W)
  • Laser class - JIS C6802: class 2 (560 ?W)
  • Detection distance (Amplifier display ): 160 to 450 mm 6.30" to 17.72" (290 to 0)*1)
  • Possible display range: 295 to -50
  • Standard detection deviation: 3 mm 0.12"
  • Spot diameter: Approx. 0.8 mm 0.031" (Detection distance 450 mm 17.72")
  • Operation status indicators: Control output: Red LED/Laser radiation emission indicator: Green LED/1 spot indicator: Green LED
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GV-H450 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
