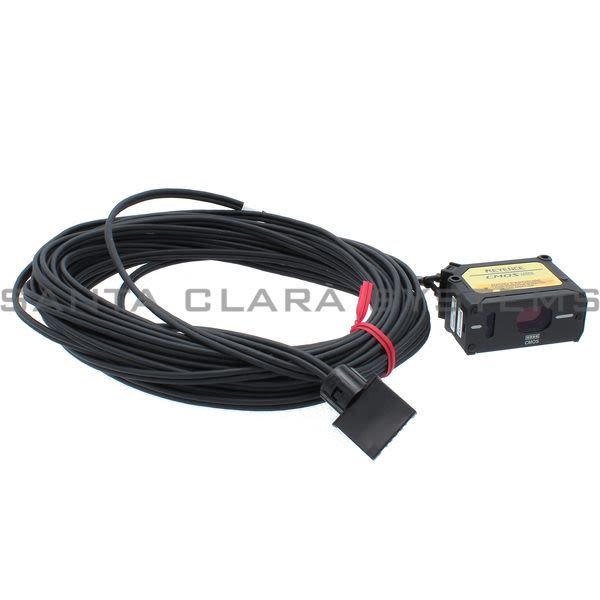

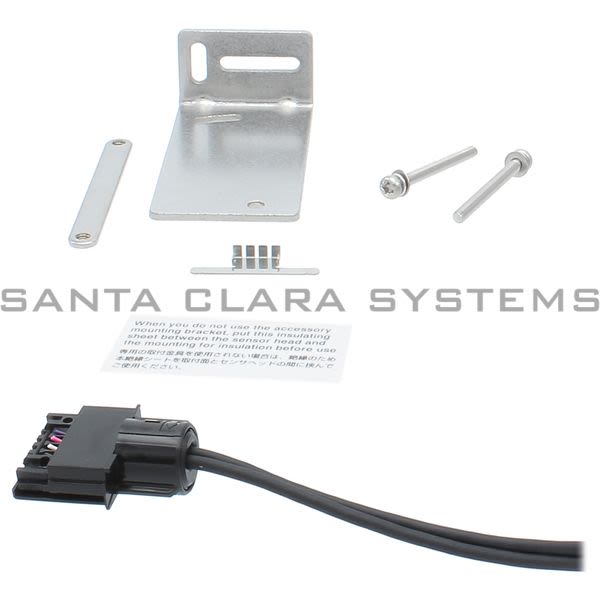

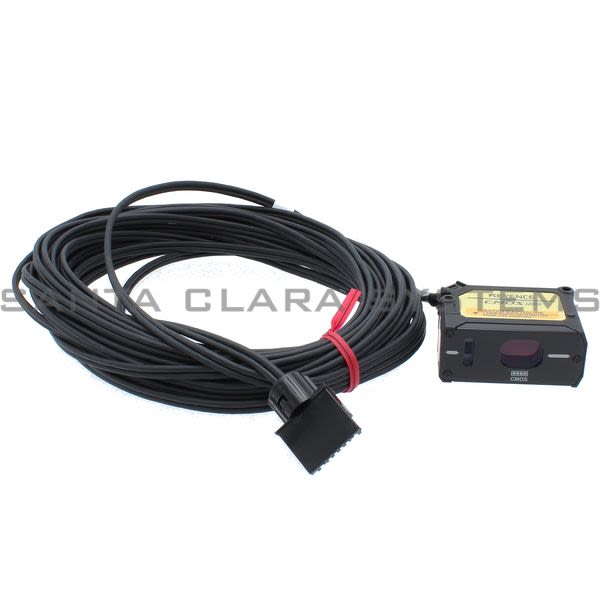

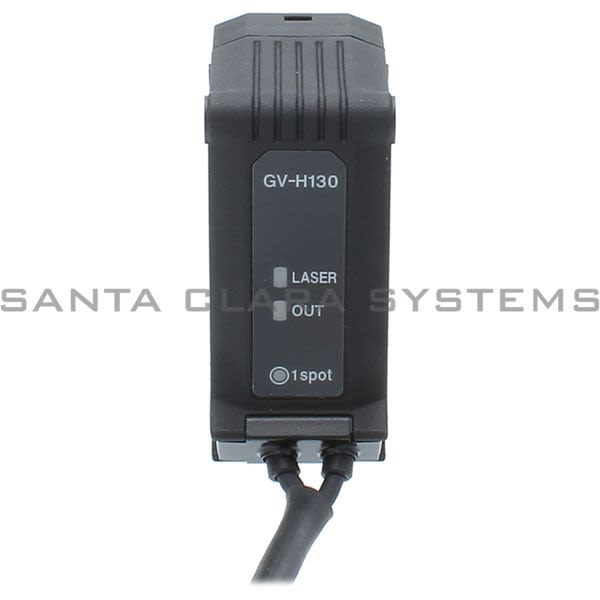

• Keyence GV-H130 (10M) Laser Sensor | Gv-H130 (10m) Product Image
  • Keyence GV-H130 (10M) Laser Sensor | Gv-H130 (10m) Product Image
  • Keyence GV-H130 (10M) Laser Sensor | Gv-H130 (10m) Product Image
  • Keyence GV-H130 (10M) Laser Sensor | Gv-H130 (10m) Product Image
  • Keyence GV-H130 (10M) Barcode

GV-H130-10M

Product Summary:

  • Type: Mid-range
  • Laser class - FDA (CDRH) Part 1040.10: class 2 (560 uW)
  • Laser class - IEC 60825-1: Class 2 (560 uW)
  • Laser class - JIS C6802: class 2 (560 uW)
  • Detection distance (amplifier display): 55 to 130 mm 2.17" to 5.12" (750 to 0)
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Laser Sensor | Gv-H130 (10m)
  • Operation status indicators: Control output: Red LED/Laser radiation emission indicator: Green LED/ 1 spot indicator: Green LED
  • Enviromental resistance - Enclosure rating: IP67
  • Enviromental resistance - Operating temperature range: -10 to +50*C 14 to 122*F, No freezing
  • Enviromental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Enviroment resistance - Operating ambient luminance - Incandescent lamp: 10000x
  • Enviroment resistance - Operating ambient luminance - Sunlight: 20000x
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude in the X, Y, and Z directions, 2 hours respectively
  • Material: Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC
  • Type: Mid-range
  • Light source: Visible semiconductor laser, Wavelength: 655 nm
  • Laser class - FDA (CDRH) Part 1040.10: class 2 (560 uW)
  • Laser class - IEC 60825-1: Class 2 (560 uW)
  • Laser class - JIS C6802: class 2 (560 uW)
  • Detection distance (amplifier display): 55 to 130 mm 2.17" to 5.12" (750 to 0)
  • Possible display range: 768 to -98
  • Standard dection deviation: 1 mm 0.04"
  • Cord Length: 10 meters
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GV-H130-10M . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
