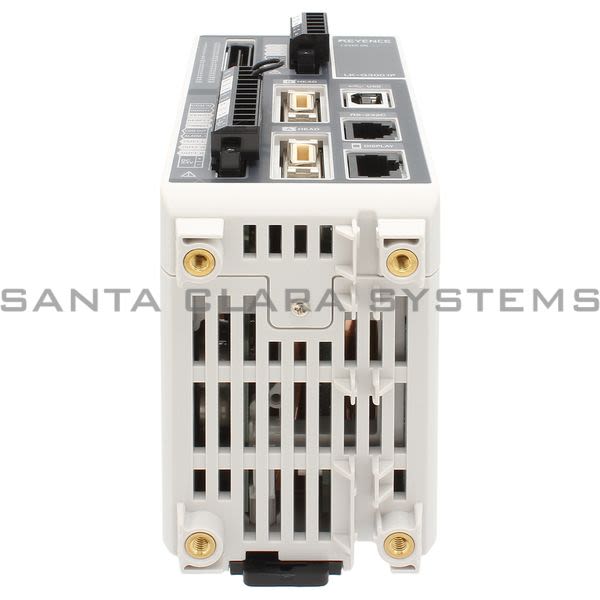

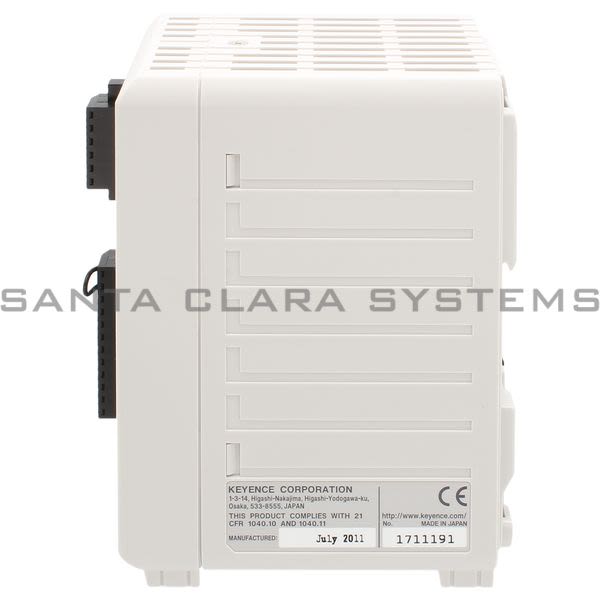

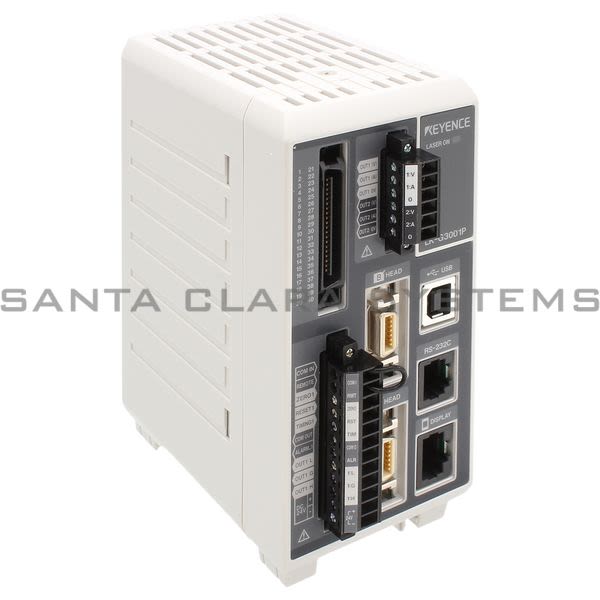

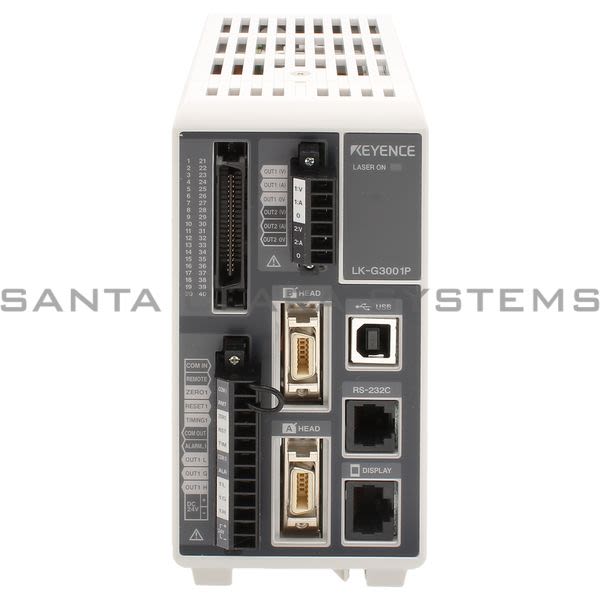

LK-G3001P

Keyence - Laser Displacement Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Laser Displacement Sensor
Weight: Approx. 370 g
Footnotes: *1 LK-G3001(P) can be operated singly. The measured value display and setting modifications can be performed on the display panel (LK-GD500) or via the setting support software (LK-H1W). *2 The rating of voltage input: 10.2 V or more ON voltage (26.4 V max.) 0.6 mA or less OFF current. *3 The rating of the PNP open collector: 50 mA max. (30 V max.), residual voltage of 1 V max.
Type: Separate monitor model*1
Ambient temperature: 0 to 50C 32 to 122F, No condensation
Relative humidity: 35 to 85%, No condensation
Display - Head compatibility: All LK-G sensor heads are compatible
Display - Number of connectable sensors: Maximum of 2 units
Display - Minimum display unit: 0.01 m
Display - Display range: 9999.99 mm to 9999.99 ?m (Selectable from six levels)
Display - Refresh rate: 10 times/sec
Terminal block - Analog voltage output: 10 V 2 outputs, output impedance: 100 ?
Terminal block - Analog current output: 4 to 20 mA 2 outputs, maximum load resistance: 350 ?
Terminal block - Timing input: For OUT1, voltage input*2
Terminal block - Reset input: For OUT1, voltage input*2
Terminal block - Auto-zero input: For OUT1, voltage input*2
Terminal block - Laser remote interlock input: Non-voltage input*2
Terminal block - Comparator output: For OUT1, PNP open-collector output*3

Terminal block - Alarm output: For OUT1, PNP open-collector output*3(N.C.)
Expansion connector - Timing input: For OUT2, voltage input*2
Expansion connector - Reset input: For OUT2, voltage input*2
Expansion connector - Auto-zero input: For OUT2, voltage input*2
Expansion connector - Program switching input: Voltage input*2 3 inputs
Expansion connector - Laser-Off input: For Head A/Head B, voltage input*2
Expansion connector - Comparator output: For OUT2, PNP open-collector output*3
Expansion connector - Alarm output: For OUT2, PNP open-collector output*3 (N.C.)
Expansion connector - Binary - Binary output: Measured data output (21 bits), OUT1/OUT2 selectable, PNP open-collector output*3
Expansion connector - Binary - Strobe output: PNP open-collector output*3
Expansion connector - Binary - Binary selector output: PNP open-collector output*3
Expansion connector - Binary - Binary selector input: Voltage input*2.
RS-232C interface: Measured data output and control input/output (Maximum baud rate: 115,200 bps, selectable)
USB interface: In conformity with USB Revision 2.0 Full speed (USB1.1 compatible)
Major functions: 2 OUT simultaneous measurement, Operation, Averaging, Filter, Calibration, Measurement, AUTO ZERO, Sampling frequency setting, Mutual interference prevention, Data storage, 8-program memory, ECO mode, ABLE setting, Target setting, ABLE tuning, Selection of measurement surface of transparent target, Connection of setting support software, Selectable head-mounting, etc.
Power supply voltage: 24 VDC 10%, Ripple: 10% (P to P) or less
Current consumption: 500 mA or less with 1 head/600 mA or less with 2 heads
